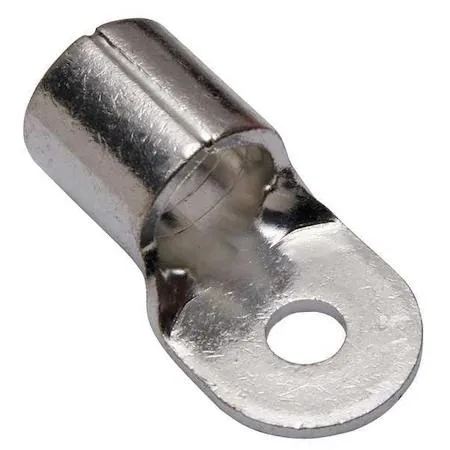

Copper compression lug, tin finish, one hole, 5 inches long

Burndy

Burndy YAD33M12E12 450 kcmil One-Hole Compression Lug

SKU CH-46CJ-S9KND

One-hole compression lug for 400–450 kcmil copper wire, tin-plated electrolytic copper barrel, 600 V, 302 °F rating, 1.5 in tongue width, 5.000 in overall length

  • TypeElectrical Connectors
  • Length5.000
  • Electrolytic copper construction ensures high conductivity
  • 400–450 kcmil wire range covers large-gauge applications
  • 600 V rating supports standard industrial circuits
  • Brazed long barrel resists pull-out under load
  • Tin-plated finish protects against corrosion

450 kcmil Copper Compression Lug

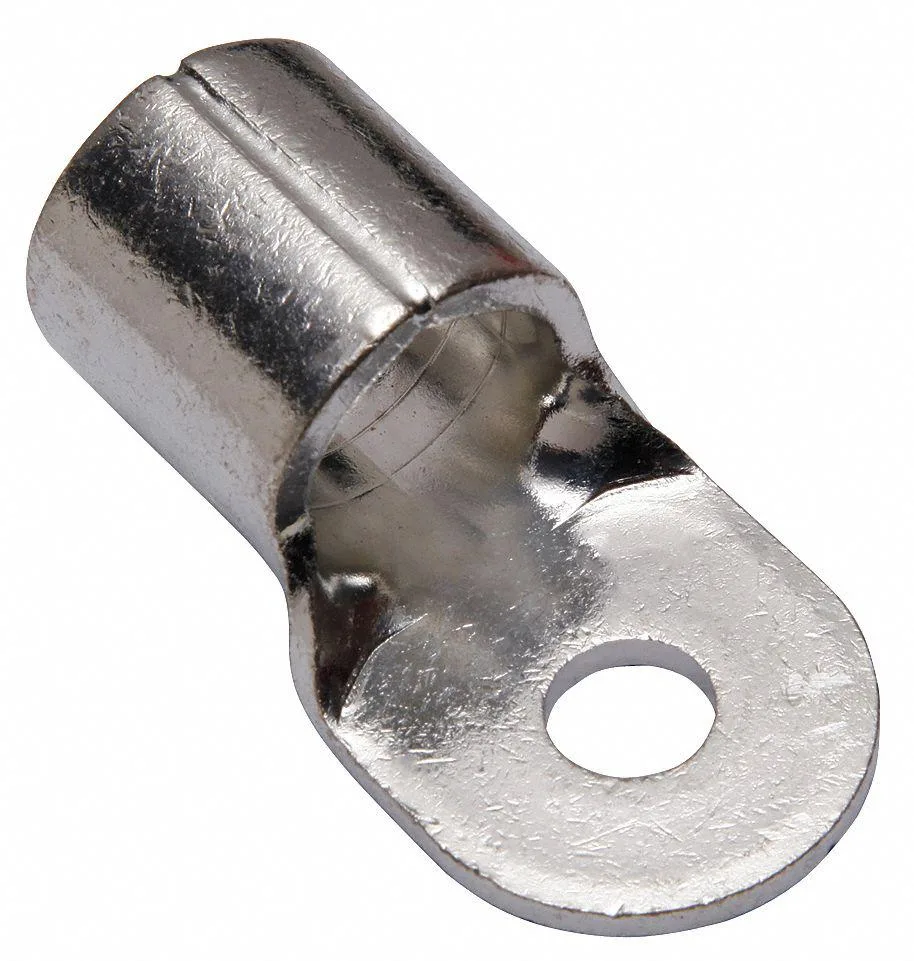

The Burndy YAD33M12E12 is a one-hole compression lug manufactured from electrolytic copper with a tin finish. It is designed for terminating 400 to 450 kcmil conductors in industrial and electrical installations. The lug accepts a maximum wire size of 450 kcmil and a minimum of 400 kcmil. It is rated for 600 V and a maximum operating temperature of 302 Degrees F.

Conductor Range 400-450 kcmil

The critical specification is the wire size range of 400 to 450 kcmil, which determines compatibility with the conductor being terminated. The barrel length measures 1.26 in with an outside diameter of 1.24 in and features a brazed barrel style. The tongue width is 1.5 in. This lug meets UL 467 standards for grounding and bonding applications.

Crimp Termination Requires Tooling

The termination style is crimp, meaning installation requires appropriate compression tooling and dies not included with the lug. The product ships as a bare connector with no insulation coverage or material. Compatible Grainger part numbers 22P219 and 22P221 reference related tooling or accessories. Buyers needing insulated terminals or screw-type connections must select a different product.

Highlights

  • Electrolytic copper construction ensures high conductivity
  • 400–450 kcmil wire range covers large-gauge applications
  • 600 V rating supports standard industrial circuits
  • Brazed long barrel resists pull-out under load
  • Tin-plated finish protects against corrosion

Specifications

TypeElectrical Connectors
BrandBURNDY
Length5.000

Questions about this item

What does the 450 kcmil rating mean for the wire I can use?

The lug accepts copper conductors from 400 to 450 kcmil, so you can terminate any wire within that range.

What does the UL 467 listing cover for this connector?

UL 467 certifies the lug for grounding and bonding applications up to 600 volts.

What stud size does the one-hole tongue fit?

The 1.5 inch tongue width is drilled for a 1/2 inch mounting stud.
