Copper compression lug, tin finish, one-hole long barrel, 300 kcmil, 1/2 in stud

Burndy

Burndy YAD31M12E12 One-Hole Compression Lug 300 kcmil 1/2 in Stud Long

SKU CH-Y10M-SQW0V

One-hole compression lug for 300–350 kcmil copper wire with 1/2 in stud, long barrel and tin-plated copper contact rated to 600 V and 302 °F

  • TypeElectrical Connectors
  • Rated for 600 V maximum voltage
  • Tin-plated copper contact resists corrosion
  • Brazed barrel provides strong crimp connection
  • UL 467 listed for grounding applications
  • Accepts 300 to 350 kcmil wire range

One-Hole Compression Lug 300 kcmil

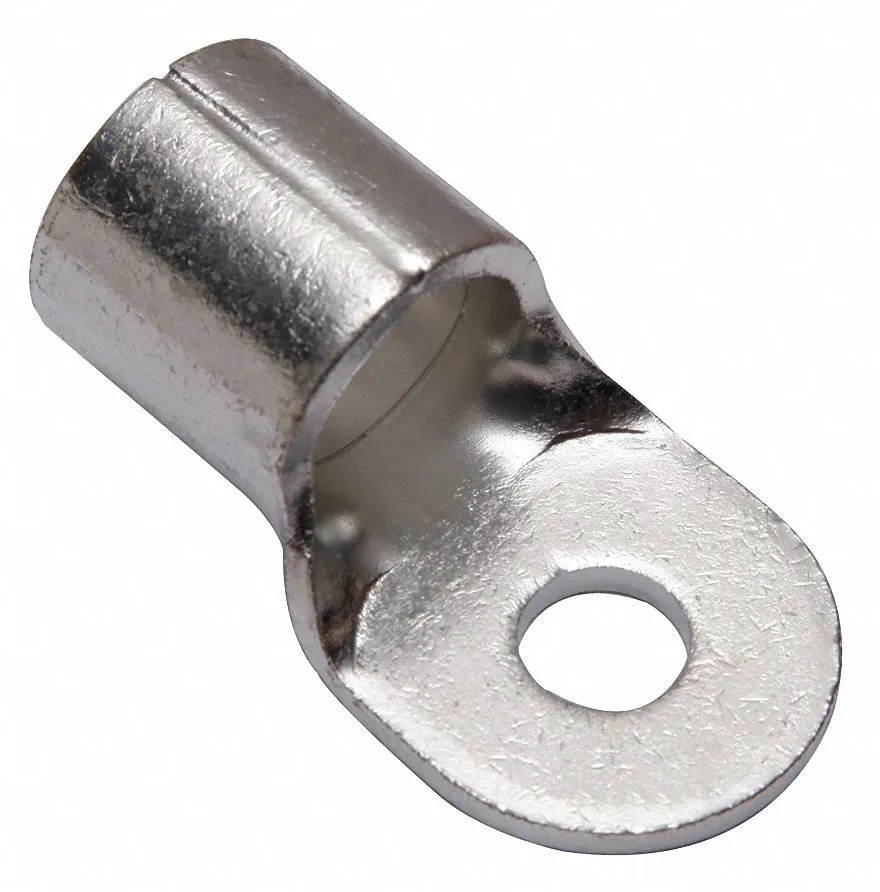

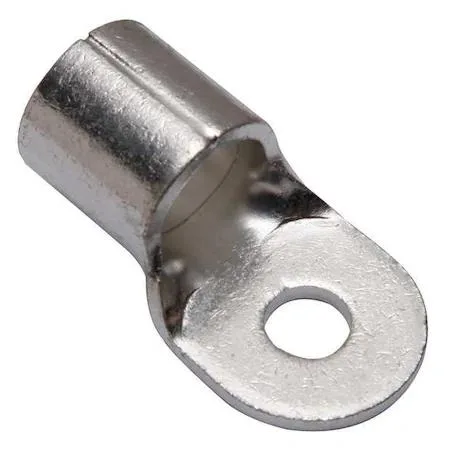

The Burndy YAD31M12E12 is a copper ring terminal designed for crimped connections on large-gauge conductors. It accepts wire from 300 kcmil to 350 kcmil and features a long barrel for extended crimp area. The tin-plated finish resists corrosion in industrial environments.

1/2 in Stud Long Barrel Design

This lug suits installers terminating heavy cable to a 1/2 inch stud where a long barrel and brazed seam are specified. It is not for applications requiring insulated coverage or a smaller stud hole. The bare barrel offers no dielectric protection.

UL 467 Listed 600 V Rating

The connector carries a 600 V maximum rating and meets UL 467 grounding and bonding standards. It operates up to 302 degrees Fahrenheit. The 1.42 inch tongue width and 1.12 inch barrel diameter match the 300 kcmil conductor range.

Highlights

  • Rated for 600 V maximum voltage
  • Tin-plated copper contact resists corrosion
  • Brazed barrel provides strong crimp connection
  • UL 467 listed for grounding applications
  • Accepts 300 to 350 kcmil wire range

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

Should I choose the 300 kcmil or 350 kcmil wire capacity for my project?

The lug accepts wire from 300 kcmil up to 350 kcmil, so select the size that matches your conductor; both fall within the approved range.

What does the 600 V rating mean when the lug is installed?

It indicates the maximum voltage the connection is certified to handle; do not exceed 600 V in the circuit where this lug is used.

How does the 1/2 in stud size limit the termination?

The 1/2 in stud fixes the bolt diameter, so the lug only fits hardware with that exact stud size; verify your bus bar or terminal matches.
