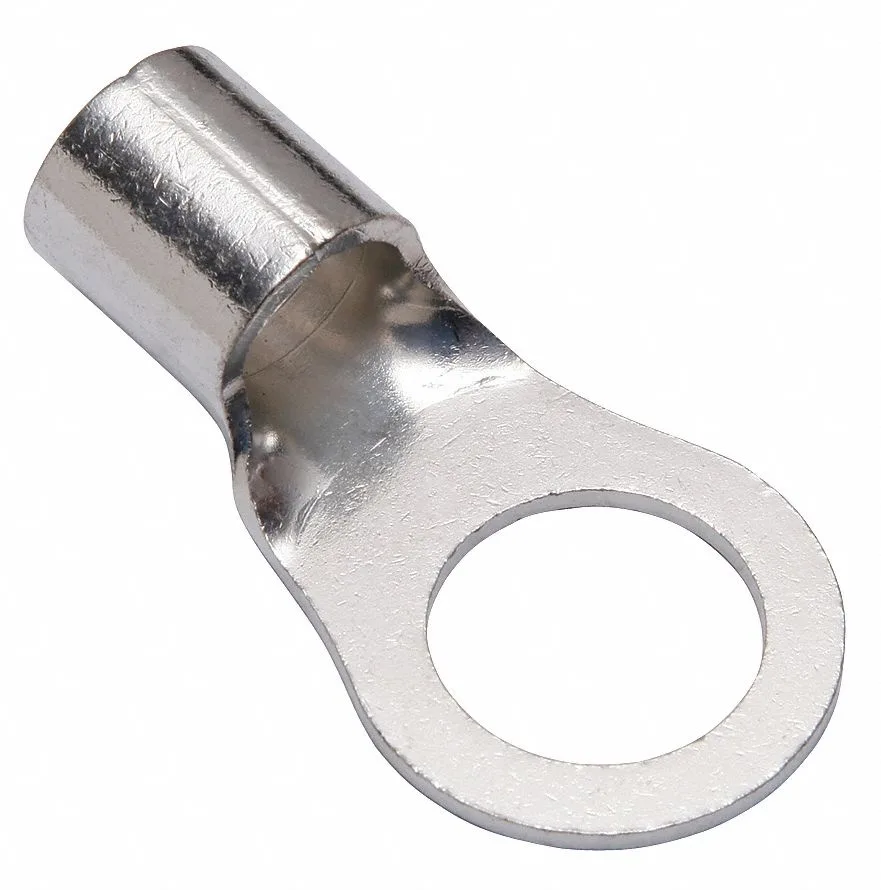

Bare copper compression ring terminal with 3/4 inch stud hole

Burndy

Burndy YAD26M20E34 2/0 AWG 3/4 in Stud Ring Terminal

SKU CH-DBM8-F9DP1

Uninsulated copper ring terminal crimps 2/0 AWG wire to a 3/4 in stud, rated 600 V and 302 °F

  • TypeElectrical Connectors
  • Uninsulated copper barrel for direct crimp connection to 2/0 AWG
  • 3/4 in stud ring tongue secures cable to terminal blocks or bus bars
  • Brazed barrel seam resists splitting under high-current mechanical stress
  • Rated 600 V and 302 °F for continuous heavy-duty service
  • UL 467 listed for grounding and bonding applications

Uninsulated Compression Terminal

The Burndy YAD26M20E34 is an uninsulated copper compression terminal rated for 2/0 AWG wire and a 3/4 inch stud. It provides a secure crimp connection for high-current electrical and industrial wiring applications. The bare barrel design allows visual inspection of the crimp joint before energising the circuit.

Brazed Barrel Long Design

A brazed long barrel measuring 0.71 in length and 0.67 in outside diameter resists splitting under heavy compression loads. The tin-plated copper contact finish protects against corrosion in harsh environments. The terminal mounts on a 3/4 inch stud with a tongue width of 1.14 in for a firm mechanical bond.

UL 467 Listed Component

The part carries UL 467 certification and a 600 V maximum voltage rating with a 302 Degrees F temperature limit. Compatible Grainger part numbers 22P219 and 22P221 simplify cross-referencing for maintenance teams. No insulation or accessories are included, so installers must supply heat shrink or tape separately.

Highlights

  • Uninsulated copper barrel for direct crimp connection to 2/0 AWG
  • 3/4 in stud ring tongue secures cable to terminal blocks or bus bars
  • Brazed barrel seam resists splitting under high-current mechanical stress
  • Rated 600 V and 302 °F for continuous heavy-duty service
  • UL 467 listed for grounding and bonding applications

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

What is the maximum operating temperature before the terminal degrades?

The terminal is rated for a maximum operating temperature of 302 degrees F.

How much heat does the connection generate when carrying full rated current all day?

As a passive copper connector with tin plating, it generates negligible heat when properly crimped to 2/0 AWG wire.

Which crimp tool and die set are required to install this terminal correctly?

A hydraulic or manual crimper with dies sized for 2/0 AWG long-barrel brazed terminals is needed.
