Copper compression lug with single hole and tin finish

Burndy

Burndy YAD26M16E58 copper compression lug 2/0 AWG

SKU CH-KZBH-WD900

Copper compression lug for 2/0 AWG wire, tin-plated, brazed barrel, UL 467 rated to 600 V and 302 °F

  • TypeElectrical Connectors
  • Length2.500
  • MaterialCopper
  • Electrolytic copper construction ensures high conductivity and corrosion resistance
  • Single 2/0 AWG barrel accepts one conductor for secure crimp connections
  • Tin-plated contact finish protects against oxidation in harsh environments
  • Brazed barrel design delivers mechanical strength under vibration and load
  • UL 467 listed for grounding and bonding applications up to 600 V

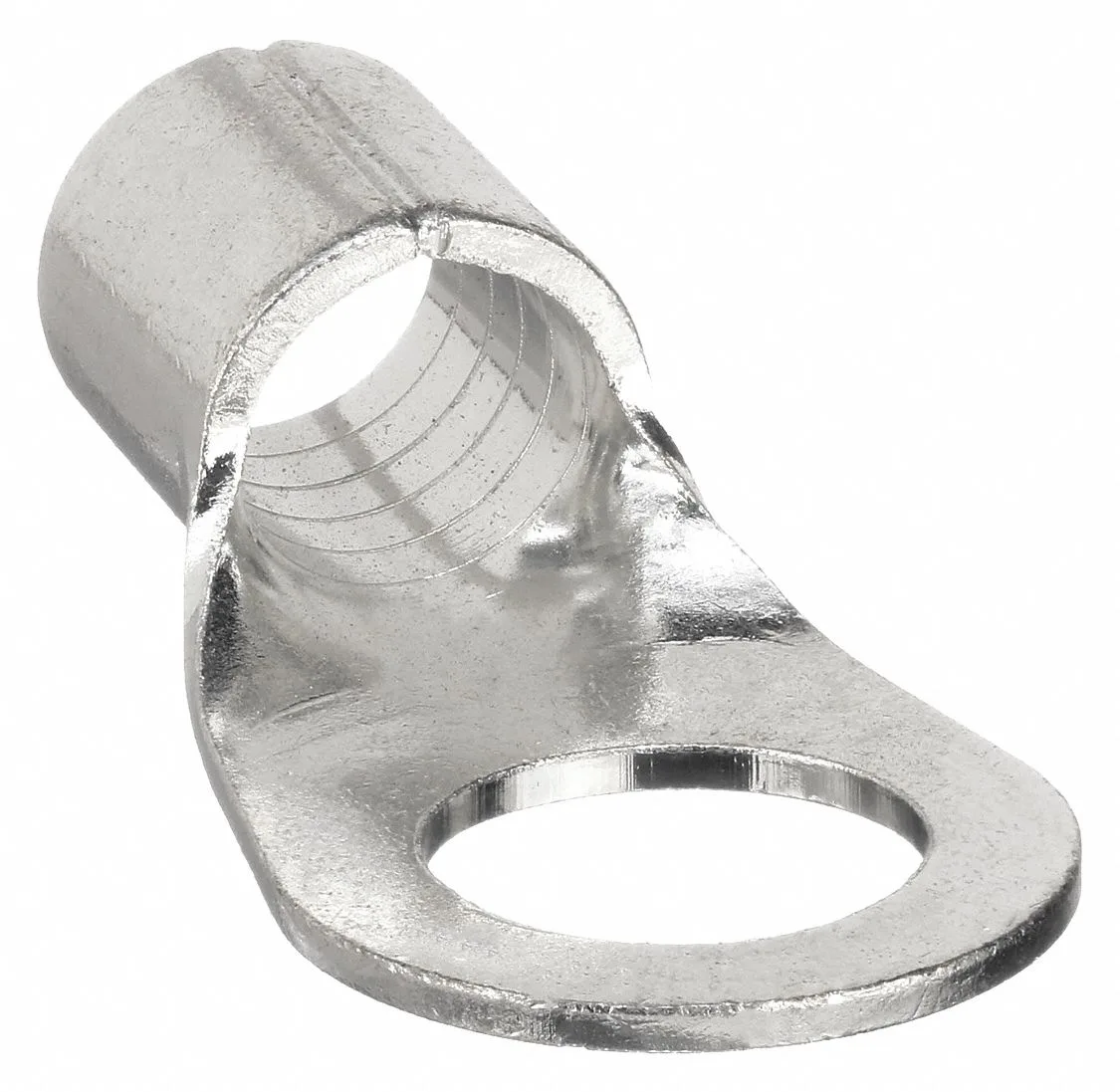

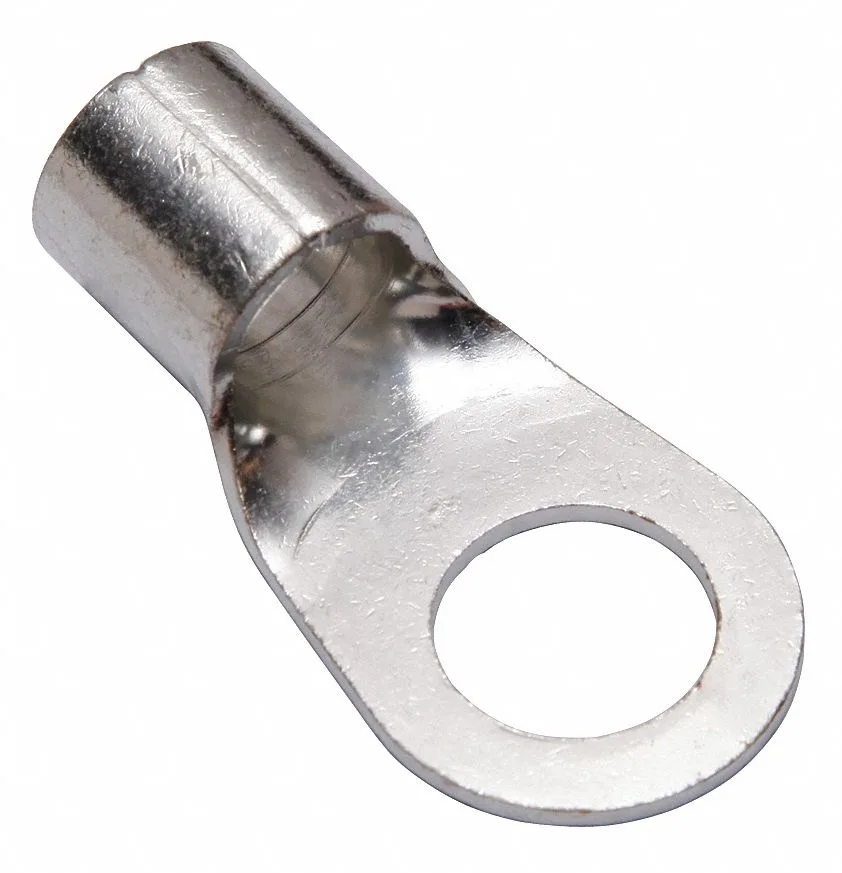

One-hole copper lug for 2/0 AWG

This compression connector is built from electrolytic copper with a tin finish and accepts a single 2/0 AWG conductor. The barrel measures 0.71 in long with a 0.67 in outside diameter and a brazed seam for mechanical strength. It is rated for 600 V and a maximum operating temperature of 302 °F.

Verify crimp tooling and stud size before ordering

The lug requires a compatible crimp die for 2/0 AWG long-barrel connectors and a single mounting hole that matches the 1.14 in tongue width. Confirm that your installation can accommodate the 2.500 in overall length and that the tin-plated copper contact surface meets the project’s corrosion-resistance requirements.

Tin plating and brazed barrel simplify termination

The factory-applied tin finish protects the copper from oxidation and eases visual inspection of the crimp joint. A brazed barrel seam prevents the connector from splitting under high mechanical load, while the bare-metal design eliminates insulation-stripping steps during assembly. UL 467 listing confirms suitability for grounding and bonding applications.

Highlights

  • Electrolytic copper construction ensures high conductivity and corrosion resistance
  • Single 2/0 AWG barrel accepts one conductor for secure crimp connections
  • Tin-plated contact finish protects against oxidation in harsh environments
  • Brazed barrel design delivers mechanical strength under vibration and load
  • UL 467 listed for grounding and bonding applications up to 600 V

Specifications

TypeElectrical Connectors
BrandBURNDY
Length2.500
MaterialCopper

Questions about this item

Does the YAD26M16E58 lug come with crimp tools or heat-shrink tubing in the package?

The lug is supplied as a single bare copper connector; crimp tooling and any insulation must be purchased separately.

Should I choose the YAD26M16E58 or a different barrel length for a 2/0 AWG copper conductor?

This model has a 0.71 in barrel length and a brazed barrel style sized for 2/0 AWG; select it when those dimensions match your crimp die and space constraints.

What does the 600 V rating mean when the lug is crimped onto a 2/0 AWG cable in a panel?

The connection is UL 467 listed for up to 600 V and 302 °F maximum operating temperature when properly crimped to 2/0 AWG copper.
