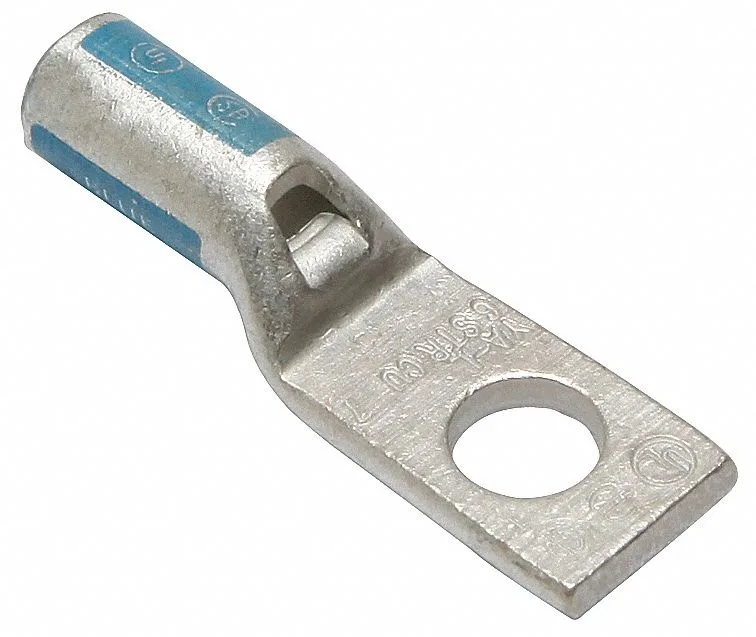

Copper compression lug, blue barrel, straight tongue, #8 and #10 stud holes

Burndy

Burndy YA6CL1BOX One-Hole Compression Lug 6 AWG #8 #10 Stud

SKU CH-N66G-DJCQ7

Copper compression lug for 6 AWG wire with #8 and #10 stud holes, 0.41 in tongue width, 194 °F rating, 35 kV maximum, CSA and UL 486 listed

  • TypeElectrical Connectors
  • Copper lug rated to 35 kV for high-voltage installations
  • Blue colour code 374 speeds correct die selection
  • Inspection hole confirms full crimp engagement
  • UL 486A-486B and CSA certified for code compliance
  • Straight 0.41 in tongue fits #8 and #10 studs

One-Hole Compression Lug for 6 AWG Copper

The Burndy YA6CL1BOX is a new one-hole compression lug rated for a maximum of 6 AWG stranded copper conductor. It accepts #8 and #10 stud sizes and carries CSA certification plus UL 486A-486B listing. The barrel uses a standard size with blue colour coding and die code 374 for crimp identification.

Crimp termination with inspection hole

Termination style is crimp and the lug includes an inspection hole so the installer can verify full conductor insertion before energising the circuit. Straight tongue geometry and a tongue width of .41 in keep the connection compact inside panels or junction boxes. Copper construction ensures compatible metallurgy with the stranded copper wire it terminates.

Rated for 35 kV and 194 °F continuous

Maximum operating temperature is 194 Degrees F and maximum voltage is 35 kV, so the lug maintains integrity under sustained load rather than only during brief surges. UL listing confirms compliance with the referenced standards for long-term service. The product is not suited for conductors larger than 6 AWG or for aluminium wire without a bi-metal adapter.

Highlights

  • Copper lug rated to 35 kV for high-voltage installations
  • Blue colour code 374 speeds correct die selection
  • Inspection hole confirms full crimp engagement
  • UL 486A-486B and CSA certified for code compliance
  • Straight 0.41 in tongue fits #8 and #10 studs

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

What maximum operating temperature can the lug withstand before it becomes a limiting factor under continuous load?

The lug is rated for a maximum operating temperature of 194 degrees Fahrenheit.

How much heat does the connection generate during all-day operation?

As a passive copper connector, it generates no heat of its own; any temperature rise comes from current through the wire.

What crimp tool and die are required to terminate this lug correctly?

Use a tool that accepts die code 374 or 7 for the standard barrel on 6 AWG copper conductor.
