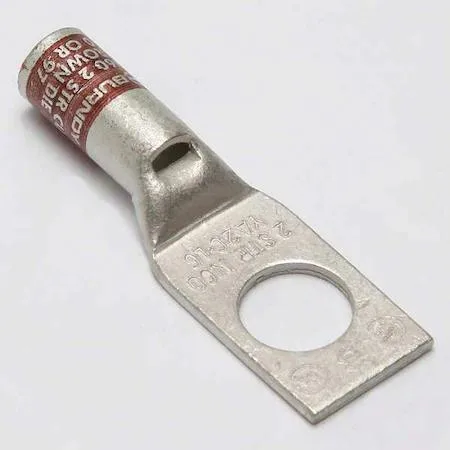

Copper compression lug, straight barrel, brown finish, single half-inch stud hole

Burndy

Burndy YA2CL6BOX 2 AWG 1/2 in Stud Copper Compression Lug

SKU CH-9GMJ-BEFZ7

Copper compression lug crimps 2 AWG stranded wire to a 1/2 in stud, 35 kV rated, UL and CSA listed

  • TypeElectrical Connectors
  • Copper construction ensures high conductivity
  • One-hole 1/2 in stud fits standard terminals
  • Brown colour code 10 simplifies die selection
  • Inspection hole allows visual crimp verification
  • UL 486A-486B and CSA certified for 35 kV

Burndy 2 AWG Copper Compression Lug

This Burndy YA2CL6BOX is a one-hole copper compression lug rated for 2 AWG stranded copper conductors and a 1/2 in stud. It provides a crimped termination for industrial and automotive electrical wiring. The lug is UL Listed and CSA Certified for use up to 35 kV.

Upgrade from mechanical lugs or smaller connectors

Replace mechanical set-screw lugs when a permanent, low-resistance crimp connection is required for 2 AWG copper wire. The jump is worth it when vibration resistance and consistent conductivity are critical for the installation. It is not suited for aluminum conductors or wire sizes other than 2 AWG.

Verify 2 AWG copper wire and 1/2 in stud fit

Confirm the conductor is stranded copper sized exactly at 2 AWG before ordering. Ensure the mounting hardware uses a 1/2 in stud to match the lug hole. Check that the crimp tool and die code 10 are available for proper installation. The maximum operating temperature is 194 Degrees F.

Highlights

  • Copper construction ensures high conductivity
  • One-hole 1/2 in stud fits standard terminals
  • Brown colour code 10 simplifies die selection
  • Inspection hole allows visual crimp verification
  • UL 486A-486B and CSA certified for 35 kV

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

What stud size and barrel color code does this lug require for mounting?

The lug fits a 1/2 in stud and uses a brown color code barrel with die code 10.

Which crimp tool die and inspection step are needed during installation?

Use die code 10 for the crimp, then verify the connection through the inspection hole.

What temperature limit and conductor condition should be monitored over time?

Rated to 194 degrees F maximum; inspect the copper barrel periodically for corrosion or overheating.
