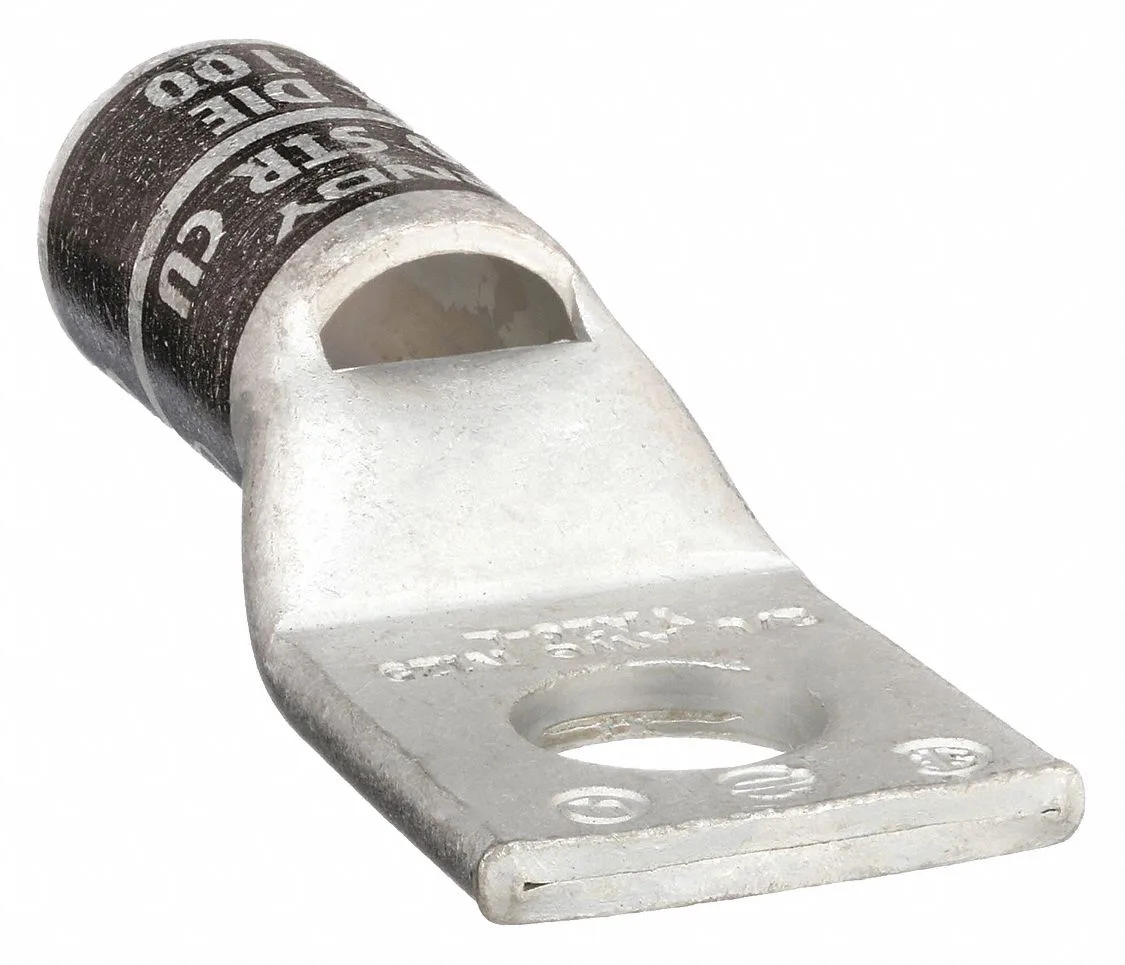

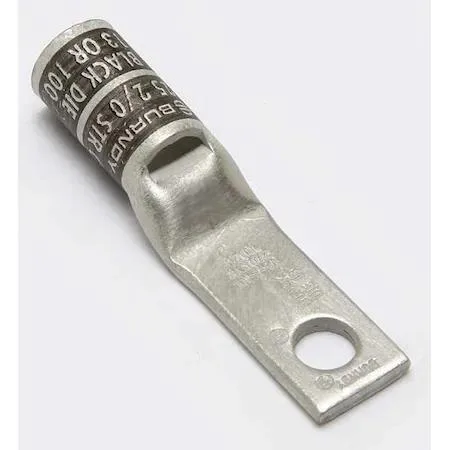

Copper compression lug with straight tongue and inspection hole

Burndy

Burndy YA26LNT516 One-Hole Compression Lug 2/0 AWG 5/16 in Stud

SKU CH-T8NC-3H1WC

Copper compression lug for 2/0 AWG wire with 5/16 in stud, CSA certified and UL listed to 35 kV

  • TypeElectrical Connectors
  • Copper construction ensures reliable conductivity for 2/0 AWG
  • 35 kV rating supports high-voltage applications safely
  • UL 486A-486B and CSA certified for code compliance
  • Inspection hole allows visual verification of crimp quality
  • 5/16 in stud fits standard terminal hardware

Electrical Connector for Copper Wire

The Burndy YA26LNT516 is a one-hole compression lug built for 2/0 AWG stranded copper conductors. It carries a black colour code and die code 13 for correct crimp tool selection. The lug is UL 486A-486B listed and CSA certified for use up to 35 kV. Maximum operating temperature is 194 degrees F.

Suited for Single-Stud Terminations

This lug suits installers who need a straight, standard-barrel connection on a 5/16 in stud. The integrated inspection hole allows visual confirmation of full conductor insertion. It is not intended for multi-hole patterns, angled tongues or aluminium conductors. Buyers who need a different stud size or a two-hole mounting pattern should look elsewhere.

Fits Standard Crimp Workflows

The connector terminates 2/0 AWG copper wire with a standard crimp tool using die code 13. Its 0.62 in tongue width matches common bus-bar and equipment lug spacing. Copper construction ensures compatible thermal expansion with the conductor. No additional hardware beyond the correct crimp die and a 5/16 in mounting bolt is required.

Highlights

  • Copper construction ensures reliable conductivity for 2/0 AWG
  • 35 kV rating supports high-voltage applications safely
  • UL 486A-486B and CSA certified for code compliance
  • Inspection hole allows visual verification of crimp quality
  • 5/16 in stud fits standard terminal hardware

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

What crimping die code is required for the 2/0 AWG barrel?

The lug uses die code 13 for its standard barrel, so your crimper must accept that die size to form a proper connection.

Will the 5/16 in stud hole align with existing terminal blocks using the same stud size?

Yes, the tongue is drilled for a 5/16 in stud and has a straight angle, so it matches other hardware using that stud diameter.

How can I verify the crimp is complete using the inspection hole?

After crimping, look through the inspection hole; the conductor should be visible and fully seated to confirm a solid termination.
