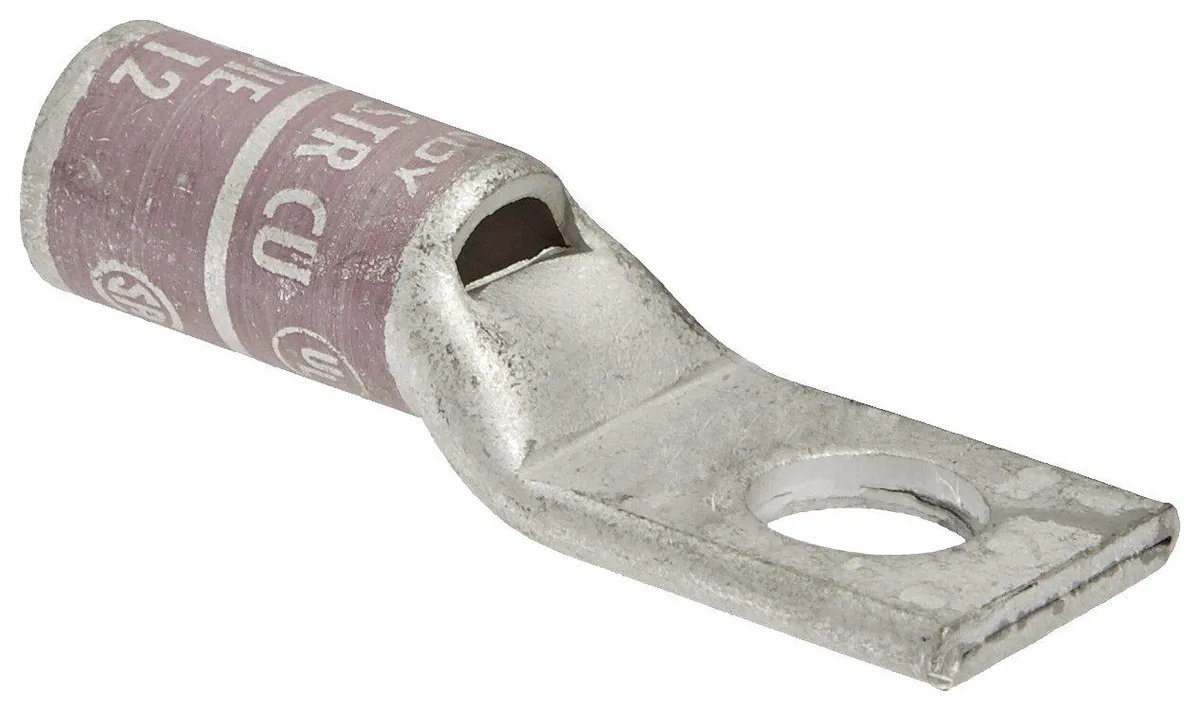

Pink copper compression terminal with straight tongue and inspection window

Burndy

Burndy YA25L4-BOX Copper Compression Terminal 1/0 AWG 3/8" Stud Pink

SKU CH-62QB-R9MTZ

Copper compression terminal for 1/0 AWG wire with 3/8 inch stud hole, pink colour code, inspection window, and 600 V to 35 kV rating

  • TypeElectrical Equipment
  • Inspection window enables visual crimp verification
  • Rated 600 V to 35 kV for wide voltage range
  • Pink colour code 12 identifies 1/0 AWG conductor size
  • 194 °F max temperature suits demanding environments
  • CSA certified and UL 486A-486B listed for code compliance

Copper Compression Terminal for 1/0 AWG

This Burndy copper compression terminal is designed for terminating 1/0 AWG stranded copper conductors in electrical and industrial wiring applications. It provides a secure crimp connection for power distribution systems requiring reliable conductivity. The pink color code identifies the correct die size for installation.

3/8-Inch Stud Hole and 0.75-Inch Tongue Width

The terminal features a 3/8-inch stud hole size and a 0.75-inch tongue width, which determine compatibility with specific bus bars or lug mounting patterns. These dimensions are the critical specifications for ensuring the terminal fits the intended connection point. The straight tongue angle suits standard inline termination layouts.

Rated to 194 Degrees F with Inspection Window

The terminal carries a maximum operating temperature of 194 degrees Fahrenheit and a voltage rating up to 35 kV for sustained load conditions. An integrated inspection window allows visual verification of full conductor insertion after crimping. It meets CSA Certified and UL 486A-486B standards for safety compliance.

Highlights

  • Inspection window enables visual crimp verification
  • Rated 600 V to 35 kV for wide voltage range
  • Pink colour code 12 identifies 1/0 AWG conductor size
  • 194 °F max temperature suits demanding environments
  • CSA certified and UL 486A-486B listed for code compliance

Specifications

BrandBurndy
TypeElectrical Equipment

Questions about this item

What does the 1/0 AWG conductor size mean when I crimp this lug onto a cable?

It accepts stranded copper wire sized exactly 1/0 AWG, so the barrel fits that gauge without gaps or over-compression.

How does the 3/8-inch stud hole limit the bolt I can use?

The hole is sized for a 3/8-inch stud, so only hardware with that shank diameter will pass through and clamp the tongue securely.

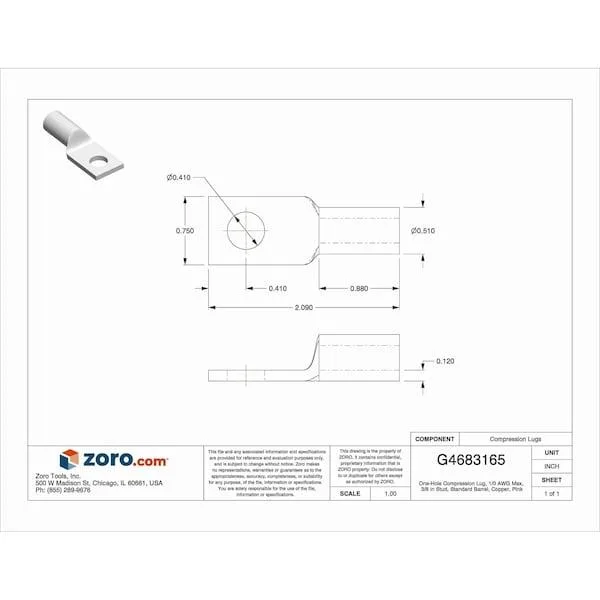

What clearance do I need for the 0.75-inch tongue width and 2.09-inch overall length?

The straight tongue measures 0.75 inch wide and the lug is 2.09 inches long, so allow at least that much flat space on the bus bar or terminal block.
