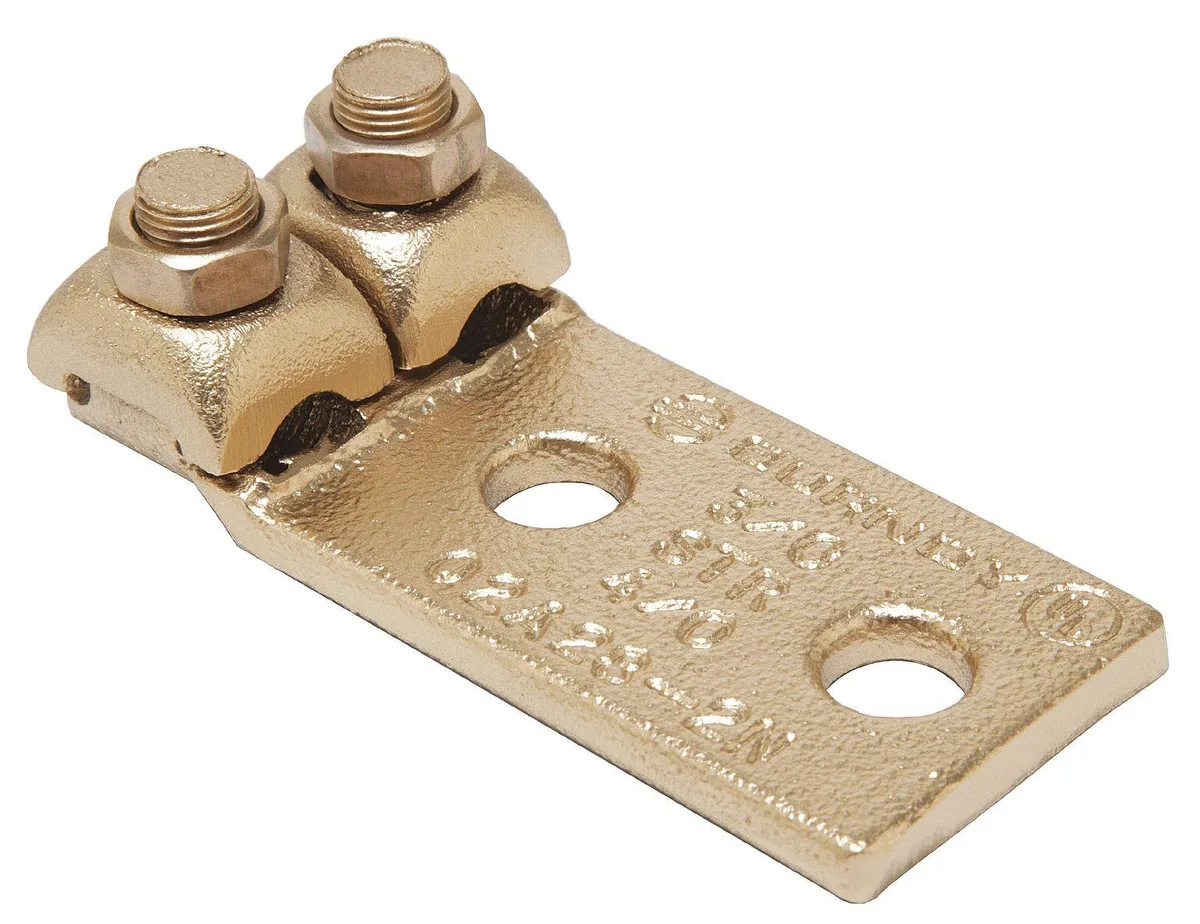

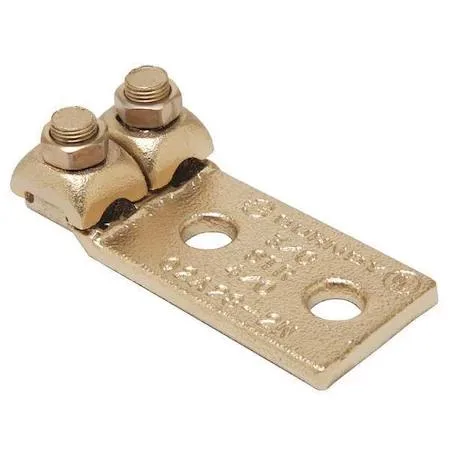

Copper two-conductor terminal with dual hex-head bolts, 2.88 in long

Burndy

Burndy Two Conductor Terminal 4AWG 2.88In

SKU CH-XS8R-KY098

Copper terminal connects two 4–1 AWG stranded conductors with 3/8 in stud holes spaced 1 in apart and rated 600 V at 194 °F

  • TypeCommercial
  • Handles two copper conductors up to 1 AWG
  • Rated for 600 V continuous operation
  • Withstands 194 °F maximum temperature
  • 1 in hole spacing fits standard studs
  • Compact 2.88 in overall length for tight spaces

Two-conductor terminal for copper wire

This Burndy terminal connects two copper conductors ranging from 4 AWG to 1 AWG. It is built for commercial electrical and industrial wiring where a secure mechanical joint is required. The hex-head design allows straightforward installation with standard tools. It suits installers who need a reliable lug for stranded copper in panel or equipment work.

Rated for 194 degrees F and 600 V continuous

The connector carries a maximum operating temperature of 194 degrees F and a maximum voltage rating of 600 V. Copper body construction maintains conductivity under sustained load without the degradation seen in lower-grade alloys. Two-hole mounting on 1 in centres distributes mechanical stress evenly across the tongue. This makes it suitable for fixed installations that run continuously at rated capacity.

Physical limits set by tongue and hole dimensions

The tongue measures 1.88 in long, 1.5 in wide and .22 in thick, fixing the maximum lug footprint in the enclosure. Each mounting hole is .44 in diameter, so the fastener size is constrained to hardware that clears that opening. Hole spacing of 1 in centres determines the bolt pattern and cannot be altered. These dimensions define the installation envelope for any panel or bus-bar layout.

Highlights

  • Handles two copper conductors up to 1 AWG
  • Rated for 600 V continuous operation
  • Withstands 194 °F maximum temperature
  • 1 in hole spacing fits standard studs
  • Compact 2.88 in overall length for tight spaces

Specifications

BrandBurndy
TypeCommercial

Questions about this item

How hot does the Burndy terminal get under continuous 600 V load?

The copper body is rated for a maximum operating temperature of 194 degrees Fahrenheit, so it will not exceed that limit during all‑day use at rated voltage.

What wire gauge and stud hardware must I already have to install this terminal?

You need stranded copper wire between 4 AWG and 1 AWG, plus 3/8 inch stud bolts to match the two 0.44 inch holes spaced 1 inch apart.

Will the 1.5 inch tongue width fit the same bus‑bar pattern as my older single‑hole lugs?

The tongue is 1.5 inches wide with two holes on 1 inch centres, so it requires a two‑hole landing pattern; single‑hole lugs will not align.
