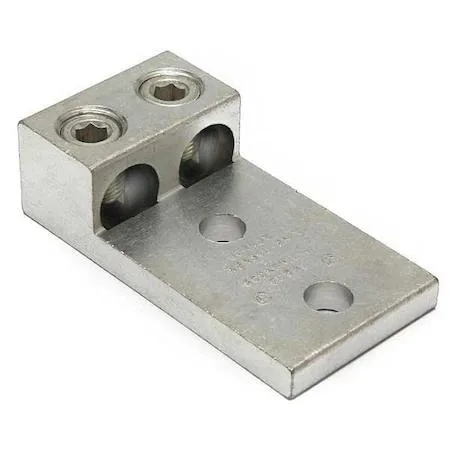

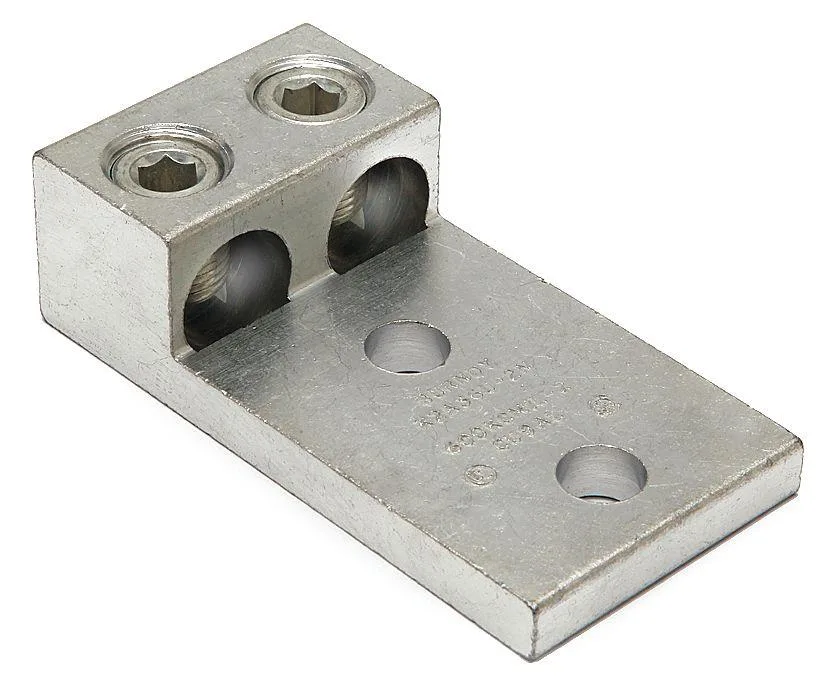

Aluminium two-conductor lug, slotted head, two mounting holes

Burndy

Burndy Two Conductor Lugs 6AWG 4.5In

SKU CH-9XKV-3JV03

Dual-conductor aluminum lug accepts 6 AWG to 350 kcmil copper, 600 V rated with 1/2 in stud holes on 1.75 in centres

  • TypeCommercial
  • Dual-conductor design simplifies parallel runs
  • Rated 600 V for standard service panels
  • 194 °F max temperature handles heavy loads
  • Slotted head speeds up field installation
  • 75 in hole spacing fits common bus bars

Two-Conductor Lug for 6 AWG Copper

This Burndy mechanical connector accepts stranded copper wire from 6 AWG up to 350 kcmil and provides two termination points in a single aluminium body. It is designed for commercial electrical installations that require a reliable lug connection on a 1/2 inch stud.

Dual-Hole Pattern with 1.75 Inch Spacing

The lug features two mounting holes of 0.56 inch diameter spaced 1.75 inches apart, fixing the tongue orientation and preventing rotation under vibration. This hole pattern is the critical dimension that determines whether the lug fits the existing busbar or equipment pad.

Rated for 600 Volts at 194 Degrees F

Aluminium construction and a slotted head style allow the connector to operate continuously at up to 194 degrees Fahrenheit while carrying rated current at 600 volts. The 0.31 inch tongue thickness and 2.31 inch width distribute clamping force evenly across both conductors during sustained thermal cycling.

Highlights

  • Dual-conductor design simplifies parallel runs
  • Rated 600 V for standard service panels
  • 194 °F max temperature handles heavy loads
  • Slotted head speeds up field installation
  • 75 in hole spacing fits common bus bars

Specifications

BrandBurndy
TypeCommercial

Questions about this item

What does the 350 kcmil maximum copper size mean when I install these lugs?

It sets the upper limit for stranded copper conductors; any wire larger than 350 kcmil will not fit the connector barrel.

How does the 600 V rating limit the circuits I can use these on?

The lugs are rated for a maximum of 600 V, so they are suitable for low-voltage and 600 V class power circuits but not for higher-voltage systems.

What stud size and hole spacing do I need to match for the two-hole mounting?

The lugs require a 1/2 in stud and have two holes spaced 1.75 in apart with a 0.56 in diameter.
