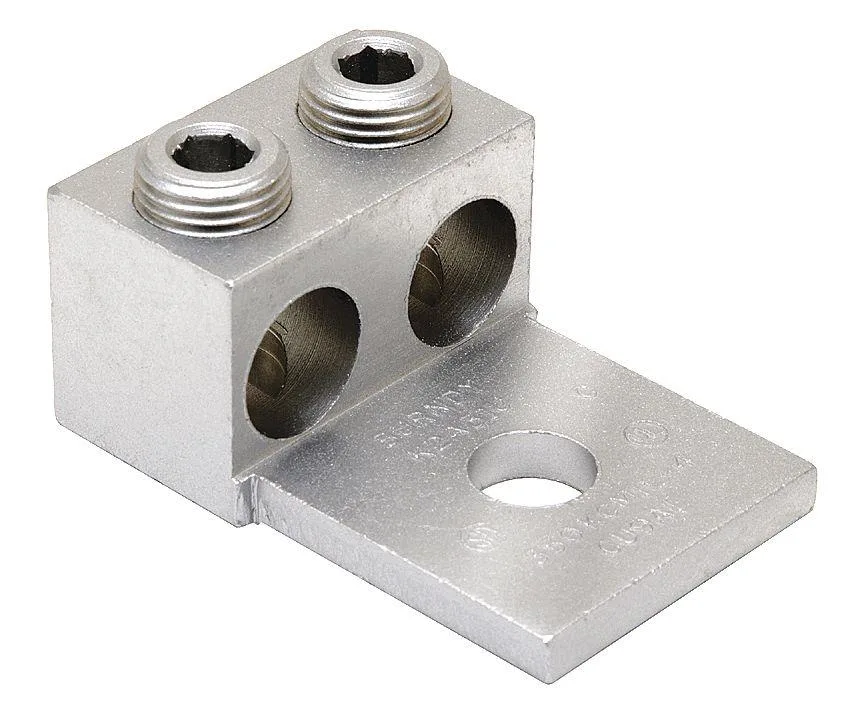

Aluminium two-conductor lug, slotted head, single hole, 2.88 in long

Burndy

Burndy Two Conductor Lugs 6AWG 2.88In

SKU CH-J2AS-SKCAM

Two-conductor mechanical lugs accept aluminium or copper conductors up to 350 kcmil, rated for 600 V and 194 °F

  • TypeCommercial
  • Handles aluminum and copper conductors
  • Rated for 600 V maximum voltage
  • Two conductors terminated in one lug
  • Slotted head allows standard tool use
  • Withstands 194 °F operating temperature

Two-Conductor Lugs for 6 AWG Wire

These Burndy lugs accept stranded copper conductors from 6 AWG up to 350 kcmil and support two conductors per lug. The aluminium body is rated for 600 V and a maximum operating temperature of 194 Degrees F. Each lug provides a single 0.56 in hole for a 1/2 in stud and uses a slotted head style for termination.

Slotted Head and Single-Hole Mount

The slotted head allows installation with a standard screwdriver, while the single 0.56 in hole matches a 1/2 in stud for secure mounting. Tongue dimensions measure 1.69 in length, 1.94 in width and 0.25 in thickness, giving a compact footprint for panel work. The two-conductor design lets you join or tap a pair of wires in one lug.

Verify Wire Size and Stud Clearance

Confirm that your stranded copper wire falls within the 6 AWG to 350 kcmil range before ordering. Ensure the mounting location accommodates a 1/2 in stud and the 0.56 in hole diameter. Check that the 1.69 in tongue length and 1.94 in tongue width fit the available space in your enclosure or panel.

Highlights

  • Handles aluminum and copper conductors
  • Rated for 600 V maximum voltage
  • Two conductors terminated in one lug
  • Slotted head allows standard tool use
  • Withstands 194 °F operating temperature

Specifications

BrandBurndy
TypeCommercial

Questions about this item

Will the aluminum body need periodic retightening under load?

The lug uses a slotted head for a secure mechanical connection; aluminum bodies on commercial lugs are typically installed once to the specified torque and not scheduled for routine retightening.

What stops me from running more than 600 V through these lugs?

The maximum voltage rating is 600 V, so insulation and clearance are only qualified up to that level.

How hot does the connector get when carrying full load all day?

Maximum operating temperature is 194 degrees F, so the lug is designed to stay within that limit under continuous rated current.
