Two aluminium lugs side by side with slotted heads and single mounting holes

Burndy

Burndy Two Conductor Lugs 14AWG 1.47In

SKU CH-H3MA-3T4B5

Two-conductor aluminium lug accepts 14 AWG to 1/0 AWG copper or aluminium wire, rated 600 V and 194 °F, with a 1/4 in stud hole

  • Length1.500
  • TypeCommercial
  • Accommodates two conductors in a single lug
  • Accepts copper and aluminum stranded wire from 14 AWG to 1/0 AWG
  • Rated for 600 volts and 194 °F maximum operating temperature
  • Slotted head allows quick installation with a standard screwdriver
  • Compact 1.47 in overall length fits tight enclosures

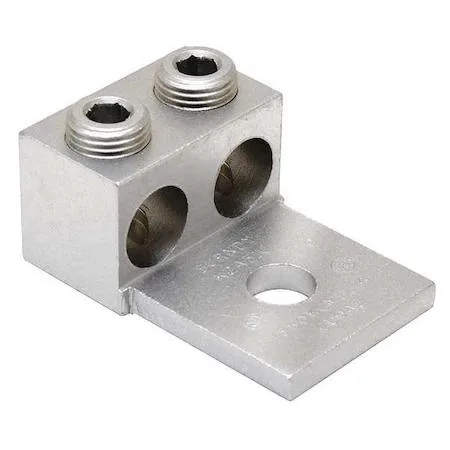

Two-Conductor Lug for Aluminium and Copper

This Burndy mechanical connector accepts two conductors ranging from 14 AWG up to 1/0 AWG stranded copper. The aluminium body is rated for 600 V and a maximum operating temperature of 194 degrees F. A single slotted hole with a 0.27 in diameter suits a 1/4 in stud.

Single-Hole Mount Limits Conductor Pairing

The lug provides one mounting hole spaced for a 1/4 in stud, so only two conductors can be terminated per lug. Tongue dimensions of 0.81 in length, 1.15 in width and 0.19 in thickness set the physical envelope for panel layout. No additional holes or spacing options are available.

Two-Conductor Capacity Decides Fit

With exactly two terminations per lug, this part suits circuits that require a paired connection to a single stud. Builds needing three or more conductors per mounting point cannot use this connector.

Highlights

  • Accommodates two conductors in a single lug
  • Accepts copper and aluminum stranded wire from 14 AWG to 1/0 AWG
  • Rated for 600 volts and 194 °F maximum operating temperature
  • Slotted head allows quick installation with a standard screwdriver
  • Compact 1.47 in overall length fits tight enclosures

Specifications

BrandBurndy
Length1.500
TypeCommercial

Questions about this item

How do I decide between the two-conductor lug and a single-conductor version?

This lug accepts two conductors sized from 14 AWG up to 1/0 AWG, so choose it when you need to join or terminate a pair of wires in one connector.

What does the 600 V rating mean when the lug is installed in a panel?

The connector is rated for a maximum of 600 V, so it can be used in circuits operating at or below that voltage without exceeding its insulation limits.

How does the 1/4 in stud size and 0.27 in hole diameter affect the mounting hardware I can use?

The single 0.27 in hole fits a 1/4 in stud, so use a matching bolt or screw to secure the lug; the slotted head allows a standard screwdriver for tightening.
