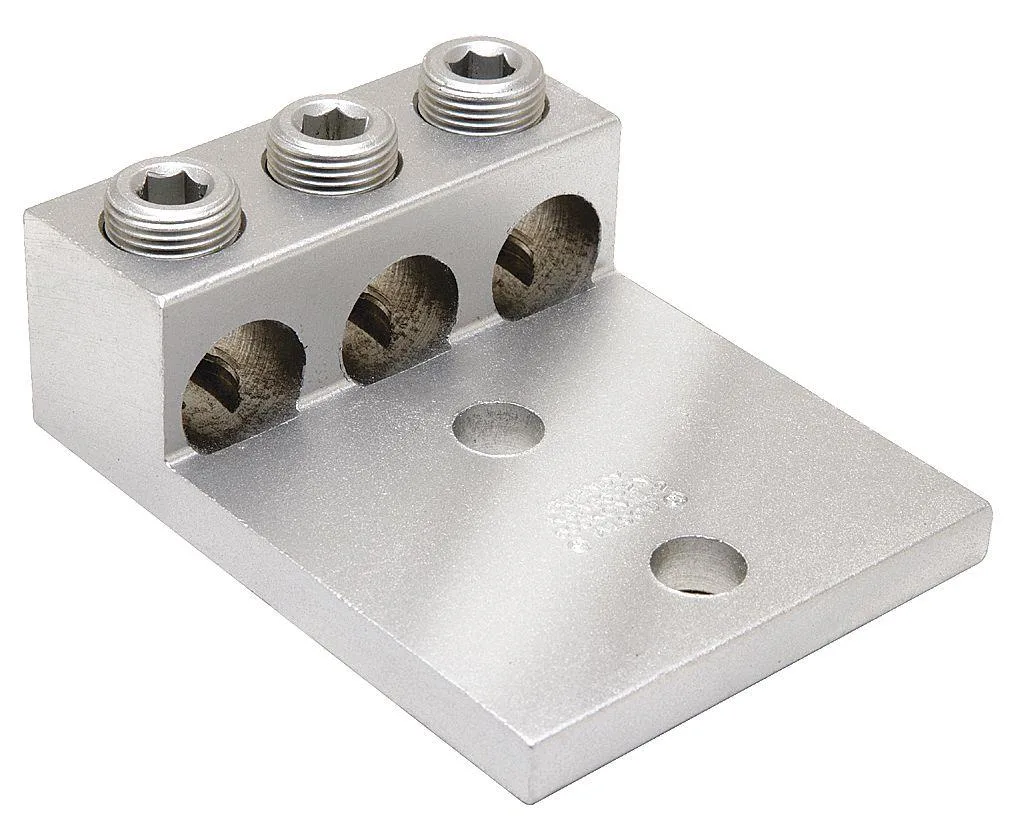

Aluminium three-conductor lug, slotted head, two mounting holes, 2.19 in long

Burndy

Burndy Three Conductor Lug 14AWG 2.19In

SKU CH-Y0Q6-TMA06

Three-conductor mechanical lug accepts 14 to 2 AWG stranded copper or aluminium, 600 V rated with 2.19 in overall length

  • TypeCommercial
  • Connects three conductors efficiently with 14 AWG minimum wire size
  • Fits 5/16 in stud using two 0.34 in holes spaced 0.88 in apart
  • Rated for 600 V and 194 °F maximum operating temperature
  • Aluminium body with slotted head suits copper or aluminium stranded wire
  • Compact 2.19 in overall length with 1.63 in tongue length

Three-Conductor Lug 14 AWG

This Burndy lug joins three copper or aluminium conductors in commercial electrical installations. It accepts stranded copper wire from 14 AWG up to 2 AWG and is rated for 600 V at up to 194 °F. The aluminium body provides three terminations in a single mechanical connector.

Dual-Hole Slotted Mount

Two mounting holes of 0.34 in diameter sit on 0.88 in centres, allowing a secure bolted connection to busbars or panels. The slotted head style lets you tighten each termination with a standard screwdriver. Tongue dimensions of 1.63 in length by 1.59 in width by 0.19 in thickness give ample contact area for reliable current transfer.

Replaces Separate Single Lugs

Instead of fitting three individual lugs, this single piece reduces hardware count and installation time on multi-conductor runs. The jump is worthwhile when panel space is limited or when a unified three-wire termination simplifies inspection and maintenance.

Highlights

  • Connects three conductors efficiently with 14 AWG minimum wire size
  • Fits 5/16 in stud using two 0.34 in holes spaced 0.88 in apart
  • Rated for 600 V and 194 °F maximum operating temperature
  • Aluminium body with slotted head suits copper or aluminium stranded wire
  • Compact 2.19 in overall length with 1.63 in tongue length

Specifications

BrandBurndy
TypeCommercial

Questions about this item

What voltage and temperature limits does the 600 V rating and 194 °F maximum place on the three-conductor lug?

The lug is rated for up to 600 volts and a maximum operating temperature of 194 degrees Fahrenheit, so it must not be used in circuits exceeding either limit.

What are the mounting hole diameter and spacing for the 5/16 in stud size on this lug?

Each of the two mounting holes measures 0.34 inches in diameter and they are spaced 0.88 inches apart on centre.

How do you correctly insert three conductors into the slotted-head lug and what common mistake should be avoided?

Strip each conductor, insert all three fully into the barrel, then tighten the slotted screw securely; the frequent error is not seating every wire to the bottom before torquing.
