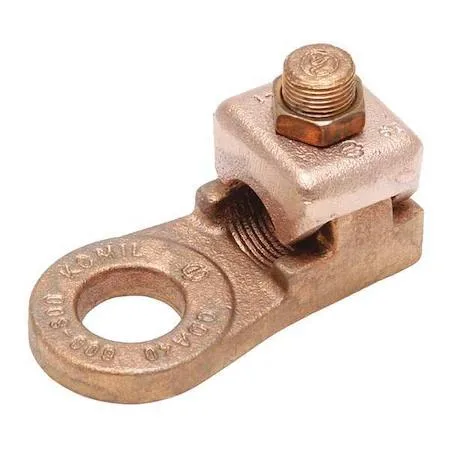

Copper mechanical connector, hex head, single 5/8 in stud hole

Burndy

Burndy Terminal 250-350 kcmil Copper 5/8 in Stud 600 V

SKU CH-ZC1A-RRRD2

Copper mechanical connector for 250–350 kcmil stranded wire with a 5/8 in stud hole, rated 600 V and 194 °F

  • TypeCommercial
  • Connects 250-350 kcmil copper conductors for high-current power distribution
  • Single 5/8 in stud hole simplifies mounting on busbars or lugs
  • Copper body conducts efficiently up to 600 V and 194 °F
  • Hex head allows secure torque with standard tools
  • One-hole, one-conductor design keeps termination compact and reliable

Copper Mechanical Connector for 250–350 kcmil Wire

This Burndy terminal accepts stranded copper conductors from 250 kcmil up to 350 kcmil. It mounts on a 5/8 in stud and carries a 600 V rating. The single-hole hex head simplifies installation with standard tools.

Sustained Load Performance

The copper body operates continuously at temperatures up to 194 degrees F without degradation. The .31 in tongue thickness and 1.5 in width maintain firm contact area under thermal cycling. The .69 in hole diameter matches the stud for secure mechanical retention.

Upgrade From Smaller Lugs

Installers moving from lugs rated below 250 kcmil gain capacity for larger feeders in the same footprint. The jump is worthwhile when conductor size increases or when a single-hole hex mounting pattern is required. It does not suit applications needing multi-hole NEMA spacing or aluminium conductor compatibility.

Highlights

  • Connects 250-350 kcmil copper conductors for high-current power distribution
  • Single 5/8 in stud hole simplifies mounting on busbars or lugs
  • Copper body conducts efficiently up to 600 V and 194 °F
  • Hex head allows secure torque with standard tools
  • One-hole, one-conductor design keeps termination compact and reliable

Specifications

BrandBurndy
TypeCommercial

Questions about this item

How much heat can the copper body handle during continuous operation?

The connector is rated for a maximum operating temperature of 194 degrees Fahrenheit.

What wire sizes and tools are needed to install this terminal?

It accepts stranded copper from 250 to 350 kcmil and uses a 5/8 inch stud with a hex head for tightening.

Will the 1.5 inch tongue width fit the bus bar spacing on my existing panel?

The tongue measures 1.5 inches wide and 0.31 inches thick with a single 0.69 inch hole for the stud connection.
