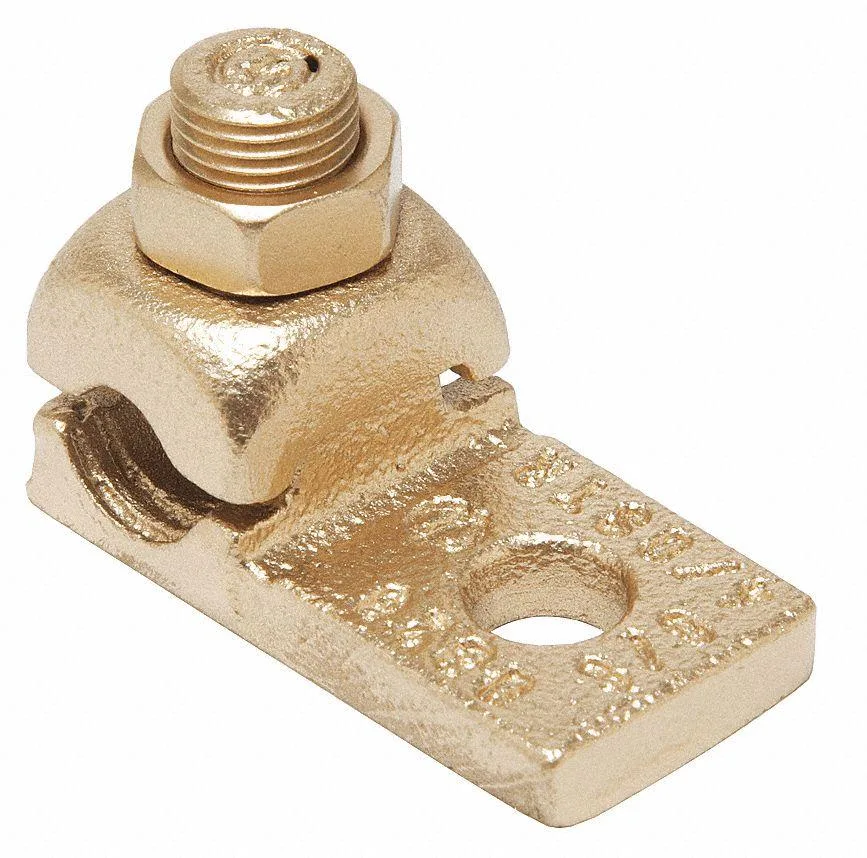

Copper terminal with hex head, 1/0 AWG, 2 inch length

Burndy

Burndy Terminal 1/0 AWG 2 in Copper Hex Head

SKU CH-T140-2451A

Copper terminal fits 1/0 to 2/0 AWG stranded wire with a 3/8 in stud hole and hex head for 600 V, 194 °F service

  • TypeCommercial
  • Copper body handles 600 V for reliable power distribution
  • Hex head design enables secure mechanical termination
  • Rated to 194 °F for high-temperature environments
  • Accommodates 1/0 to 2/0 AWG stranded copper conductors
  • Single 0.41 in hole fits 3/8 in stud hardware

Copper Terminal for 1/0–2/0 AWG

This Burndy mechanical connector accepts stranded copper conductors from 1/0 AWG up to 2/0 AWG. A single 3/8 in stud hole with a 0.41 in diameter secures the lug in place. The hex head allows standard wrench tightening for a reliable crimp. It is rated for 600 V and a maximum operating temperature of 194 degrees F.

Solid Copper Body with Hex Head

The body and tongue are made entirely of copper, providing high conductivity and corrosion resistance. Tongue dimensions are 0.94 in long, 0.81 in wide and 0.22 in thick, giving a substantial contact area. One hole and one termination keep the installation simple for panel or busbar mounting. The hex head fits common socket sets used on site.

600 V Single-Conductor Limit

This terminal is designed for a single conductor and a single termination point. The 600 V rating defines the upper voltage boundary for the connection. Builders needing multi-hole patterns, larger stud sizes or higher voltage ratings must select a different lug. The fixed 0.41 in hole diameter also prevents use with bolts outside that specification.

Highlights

  • Copper body handles 600 V for reliable power distribution
  • Hex head design enables secure mechanical termination
  • Rated to 194 °F for high-temperature environments
  • Accommodates 1/0 to 2/0 AWG stranded copper conductors
  • Single 0.41 in hole fits 3/8 in stud hardware

Specifications

BrandBurndy
TypeCommercial

Questions about this item

What wire sizes does the 600 V copper terminal accept?

The connector handles stranded copper from 1/0 AWG up to 2/0 AWG with a single termination point.

What stud size and hole diameter are required to mount the hex-head terminal?

It fits a 3/8 in stud through a .41 in hole; tongue measures .81 in wide by .94 in long and .22 in thick.

How is the lug crimped onto the conductor, and what mistake should be avoided?

Use a proper hex crimp die for 1/0–2/0 copper; the common error is using an undersized die that leaves a loose connection.
