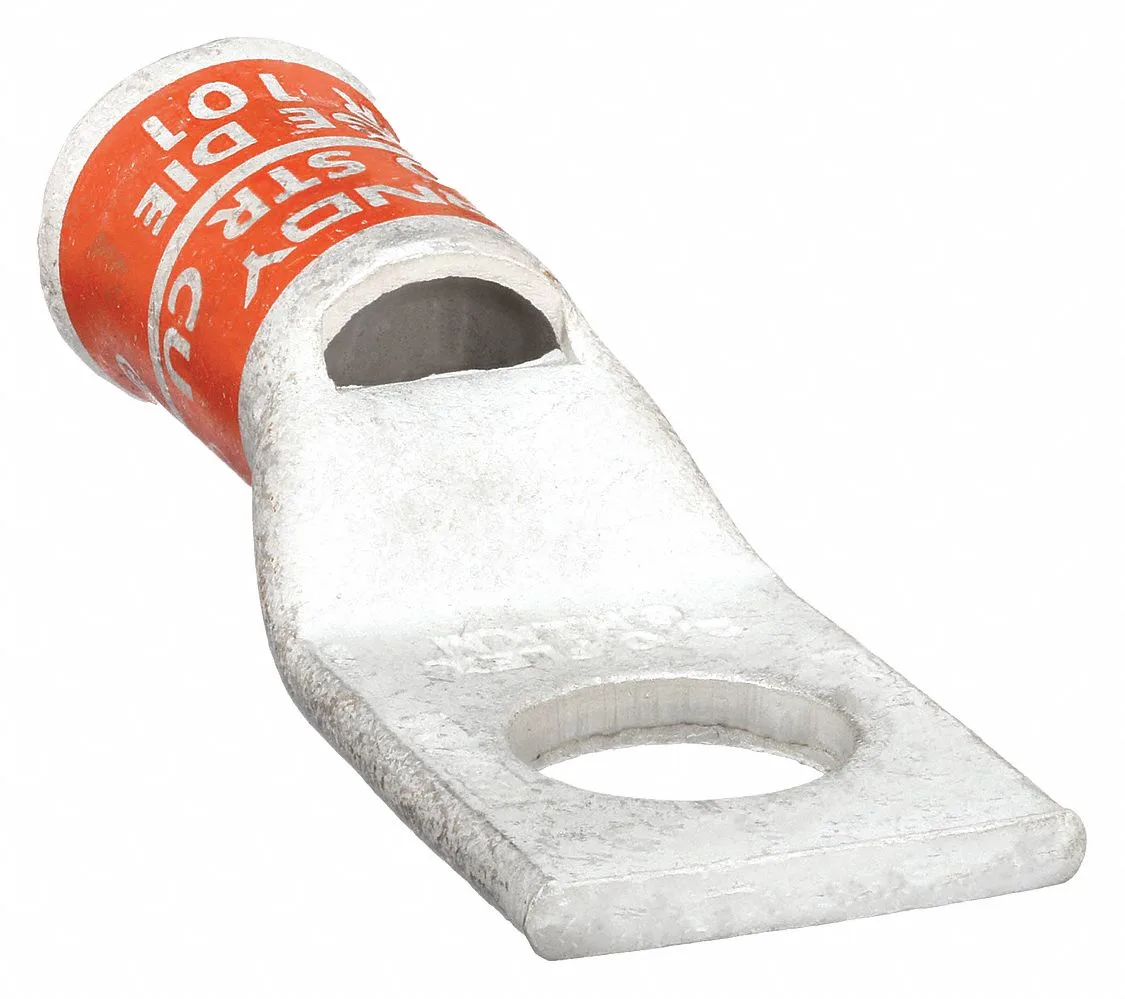

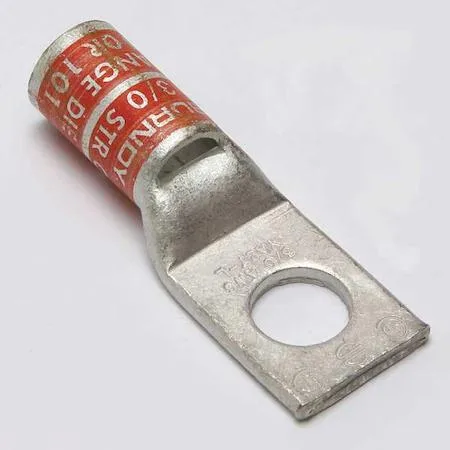

Copper compression lug with single hole, orange colour code, straight tongue, 2.500 length

Burndy

Burndy Standard Barrel Copper Terminal 1 Hole 3/0 AWG

SKU CH-8KH0-GFCFA

Copper compression lug for 3/0 AWG wire, 1/2 in stud, orange colour code, die 14, CSA and UL 486A-486B listed

  • Length2.500
  • MaterialCopper
  • TypeCommercial
  • Copper construction ensures high conductivity for reliable power transfer
  • Standard barrel design fits 3/0 AWG conductors with precise crimp termination
  • Single 1/2 in stud hole simplifies mounting on busbars or panels
  • UL 486A-486B and CSA certification confirms code-compliant safety
  • Rated to 35 kV and 194 °F for demanding industrial applications

Burndy Copper Terminal 3/0 AWG

This Burndy copper compression lug is built for terminating 3/0 AWG stranded copper conductors in commercial electrical installations. The standard-barrel design accepts a single 1/2 inch stud and is CSA certified and UL listed to UL 486A-486B standards. It suits electricians and panel builders who need a reliable crimp connection for heavy-gauge copper wire.

Capacity 3/0 AWG orange colour code

The terminal handles exactly 3/0 AWG stranded copper with no range above or below that size, and the orange colour code matches die code 14 for quick identification. It is rated for up to 35 kV maximum voltage and a maximum operating temperature of 194 degrees F. The straight tongue measures 0.91 inches wide and includes an inspection hole to verify full conductor insertion before crimping.

Straight tongue single-hole mounting

The straight, single-hole tongue fits a 1/2 inch stud directly, simplifying busbar or lug-pattern layouts without offset bends. The 2.500 inch overall length keeps the connection compact inside enclosures while the copper construction provides high conductivity and corrosion resistance. Crimp termination with the correct die eliminates the need for set-screw hardware and frees up space compared with mechanical lugs.

Highlights

  • Copper construction ensures high conductivity for reliable power transfer
  • Standard barrel design fits 3/0 AWG conductors with precise crimp termination
  • Single 1/2 in stud hole simplifies mounting on busbars or panels
  • UL 486A-486B and CSA certification confirms code-compliant safety
  • Rated to 35 kV and 194 °F for demanding industrial applications

Specifications

BrandBurndy
Length2.500
MaterialCopper
TypeCommercial

Questions about this item

Will this 3/0 AWG copper lug fit the 1/2 inch studs on my existing bus bar?

Yes, the lug is drilled for a 1/2 in stud and the barrel accepts 3/0 AWG stranded copper, so it matches those dimensions directly.

How do I confirm the crimp is correct after installing the terminal?

The orange colour code and die code 14 identify the right tool setting; the inspection hole lets you verify full conductor insertion before energising.

Does the package include crimp dies or heat-shrink tubing, or must I buy them separately?

Only the copper compression lug is supplied; crimp dies matching code 14 and any insulation or heat-shrink must be purchased separately.
