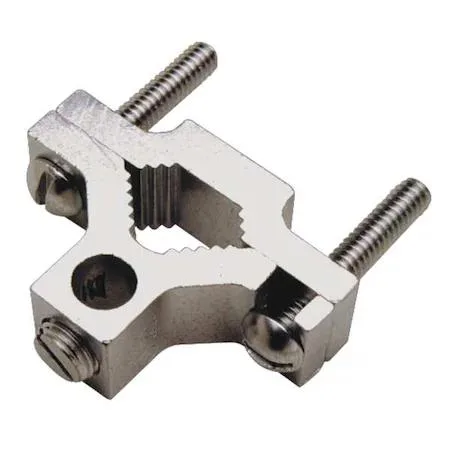

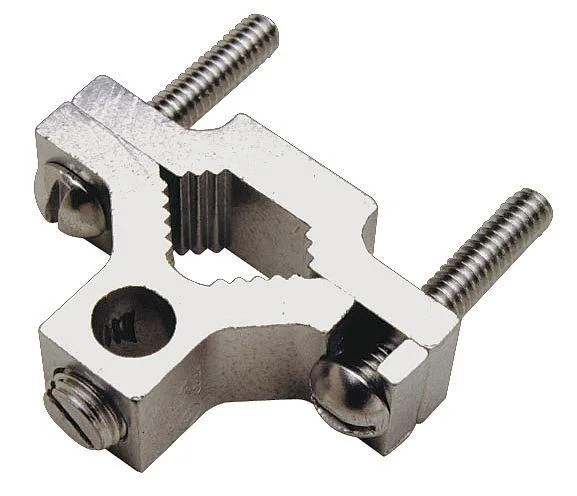

Aluminium pipe ground clamp with hex socket steel screw, 6.31In long

Burndy

Burndy Pipe Ground Clamp 6AWG 6.31In

SKU CH-GPAF-82F9N

Connects grounding wire to 2½–4 in pipe using a hex-socket steel screw, UL467 listed

  • TypeCommercial
  • Grounds conductors from 6 AWG to 250 kcmil
  • Hex socket steel screw ensures secure tightening
  • UL 467 listed for safety compliance
  • Aluminium body fits 2 1/2 to 4 inch pipes
  • Accepts aluminium, copper and conduit conductors

Grounding Clamp for 6 AWG to 250 kcmil

This Burndy pipe ground clamp accepts a single grounding conductor ranging from 6 AWG up to 250 kcmil stranded or 6 to 4/0 AWG solid. It is designed for commercial electrical installations where a reliable connection to a water pipe or conduit is required. The clamp fits pipe diameters from 2 1/2 inches to 4 inches.

UL 467 Listed for Continuous Service

The connector carries a UL 467 listing, confirming it meets the standard for grounding and bonding equipment under sustained load conditions. Aluminum body construction resists corrosion when used with aluminum or copper conductors in damp environments. The hex socket steel screw maintains clamping force over time without rounding.

Hex Socket Screw Simplifies Installation

A hex socket steel screw allows secure tightening with a standard driver, reducing the risk of stripped heads during field work. The clamp accommodates aluminum conductor, copper conductor, conduit and pipe in a single mechanical connection. It is supplied new and ready for immediate use on job sites.

Highlights

  • Grounds conductors from 6 AWG to 250 kcmil
  • Hex socket steel screw ensures secure tightening
  • UL 467 listed for safety compliance
  • Aluminium body fits 2 1/2 to 4 inch pipes
  • Accepts aluminium, copper and conduit conductors

Specifications

BrandBurndy
TypeCommercial

Questions about this item

Will the hex-socket steel screw overheat or draw extra current when the clamp carries a continuous ground fault?

The clamp is a passive mechanical connector with no active components, so it generates no heat or noise and draws no power during continuous operation.

What tools and conductor preparation does the installer need before tightening the hex-socket screw?

A hex driver or wrench matching the screw, plus a wire stripper for 6 AWG to 250 kcmil stranded or 6 to 4/0 AWG solid aluminum or copper conductors.

Can this clamp connect a 4/0 AWG solid copper ground wire to a 3-inch steel water pipe already in the building?

Yes, the clamp accepts 6 to 4/0 AWG solid copper and fits 2 1/2 in to 4 in pipe, so a 3-inch steel water pipe is within range.
