Burndy Pipe Ground Clamp 6AWG 3.75In

Ground Clamp for 1 1/4 to 2 Inch Pipe

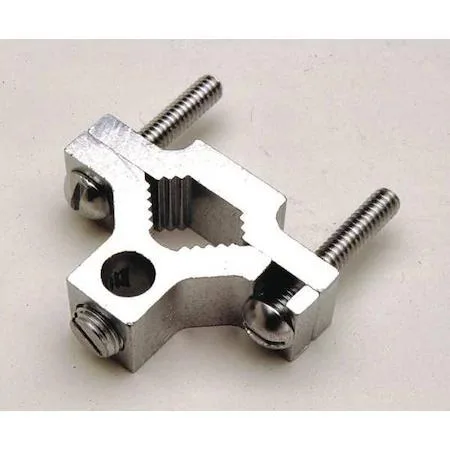

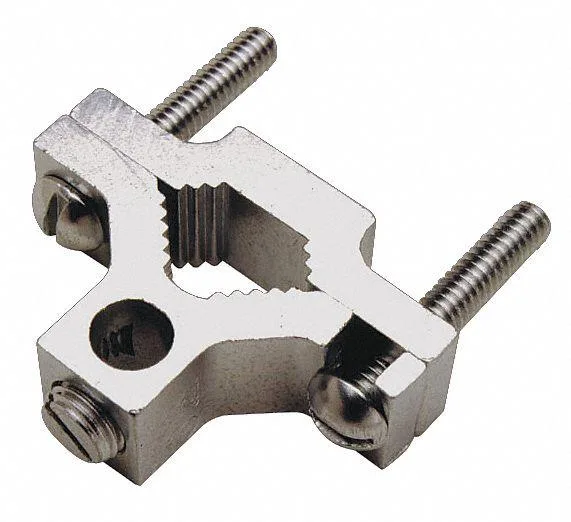

This Burndy ground clamp connects a single grounding conductor to water pipe or conduit ranging from 1 1/4 to 2 inches in diameter. It accepts stranded wire from 6 AWG up to 250 kcmil and solid wire from 6 to 4/0 AWG. The connector is built for commercial electrical and industrial installations. UL 467 listing confirms compliance with grounding safety standards.

Aluminum Body with Hex Socket Steel Screw

The clamp body is made of aluminum and is rated for use with aluminum conduit, copper conductor, and pipe. A hex socket steel screw secures the grounding wire, allowing a firm mechanical connection without specialised crimping tools. The 3.75 inch overall length provides enough reach for typical pipe mounting scenarios while keeping the profile compact.

Verify Conductor Size

Confirm that your grounding wire falls within the 6 AWG to 250 kcmil stranded or 6 to 4/0 AWG solid range. Ensure the target pipe or conduit outside diameter is between 1 1/4 and 2 inches. This clamp is not suitable for smaller pipe sizes or conductors outside the listed wire gauge window.
