Copper pipe ground clamp for 4 AWG to 2/0 AWG conductors

Burndy

Burndy Pipe Ground Clamp 5AWG 4In

SKU CH-8PRZ-6VQHH

Connects grounding wire to pipe or rod, UL 467 listed for direct burial

  • TypeCommercial
  • UL467 listed for direct burial installations
  • Copper construction suits grounding wire sizes 4 to 3/0 AWG SOL
  • Mechanical connector fits 1 1/2 in pipe and 1 5/8 to 1 7/8 in rod
  • Single-wire design simplifies copper conductor grounding
  • Commercial-grade build for reliable ground rod and pipe connections

Grounding Connector for Direct Burial

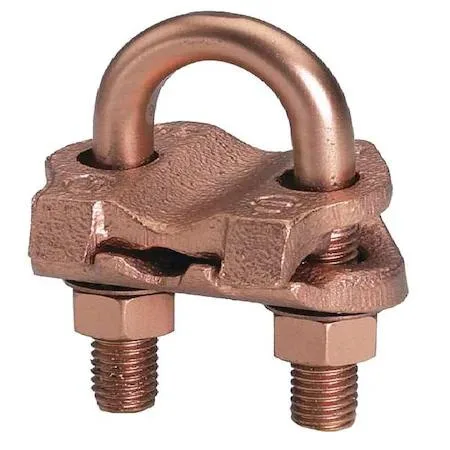

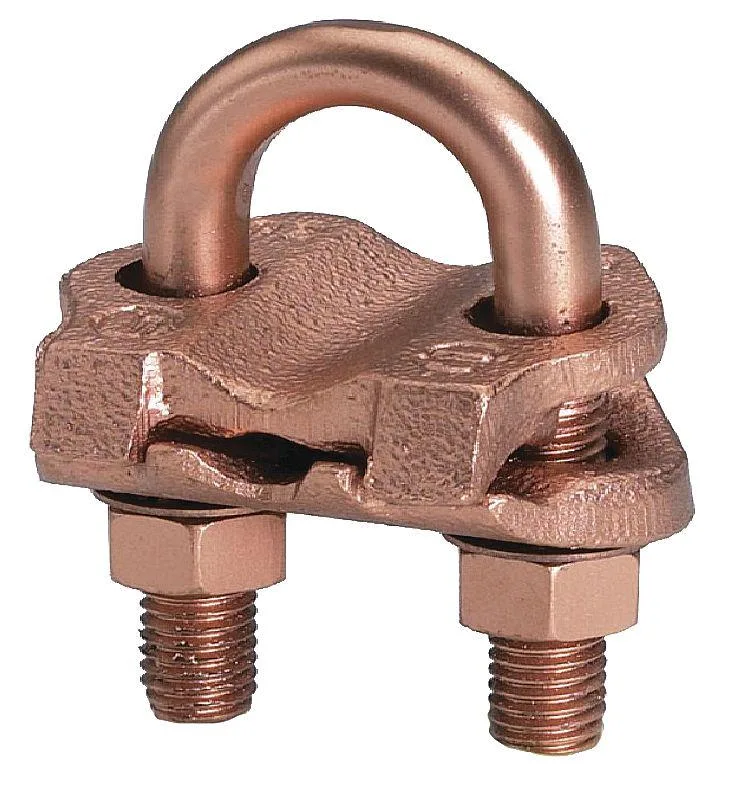

This Burndy grounding connector is a mechanical clamp designed to bond a single copper grounding conductor to a pipe, ground rod or rebar. It accepts solid wire from 4 AWG up to 3/0 AWG and stranded wire from 5 AWG up to 2/0 AWG, making it suitable for commercial electrical installations that require a direct-burial rated connection.

Copper Clamp for Pipe and Rod Mounting

The clamp fits around a 1 1/2 inch pipe and accommodates ground rods or rebar measuring 1 5/8 inch to 1 7/8 inch in diameter. Its copper construction ensures compatibility with copper conductors while the direct-burial rating allows the assembly to be embedded in soil or concrete without additional protection, simplifying the grounding electrode installation.

UL 467 Listed Copper Hardware

The connector carries a UL 467 listing for direct burial, confirming compliance with the standard for grounding and bonding equipment. Copper material provides inherent corrosion resistance in buried environments, while the mechanical screw-terminal design creates a secure bond without requiring specialised crimping tools or exothermic welding kits.

Highlights

  • UL467 listed for direct burial installations
  • Copper construction suits grounding wire sizes 4 to 3/0 AWG SOL
  • Mechanical connector fits 1 1/2 in pipe and 1 5/8 to 1 7/8 in rod
  • Single-wire design simplifies copper conductor grounding
  • Commercial-grade build for reliable ground rod and pipe connections

Specifications

BrandBurndy
TypeCommercial

Questions about this item

What is the maximum ground conductor wire size this clamp accepts?

The clamp accepts stranded copper conductors up to 2/0 AWG for grounding connections.

How much heat does the clamp generate during continuous operation?

As a passive copper connector it produces no heat of its own; temperature rise depends only on the current flowing through the attached conductors.

Does the package include the grounding wire or ground rod?

No, the clamp is supplied alone and requires the installer to provide copper grounding wire and a compatible ground rod or pipe.
