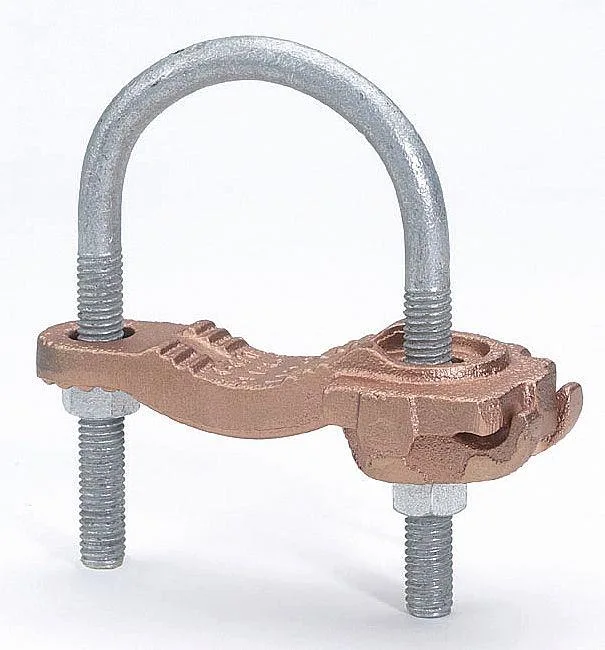

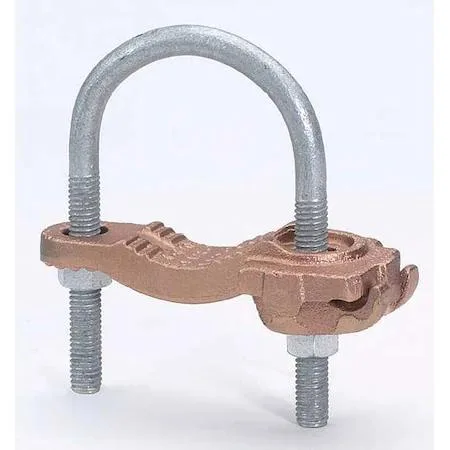

Burndy copper pipe ground clamp with galvanised hardware, 6.5 in length

Burndy

Burndy Pipe Ground Clamp 4AWG 6.5In

SKU CH-HE73-0P5SS

Grounding clamp connects 4 to 4/0 AWG copper wire to 2.5 to 3.5 inch pipe with galvanised steel hardware, UL 467 listed

  • Length6.000
  • TypeCommercial
  • UL 467 listed grounding clamp for code-compliant installations
  • Fits 2 1/2 to 3 1/2 inch pipe for versatile mounting options
  • Accepts 4 AWG to 4/0 AWG solid or stranded copper conductors
  • Galvanized steel hardware resists corrosion in outdoor environments
  • 5 inch length provides secure pipe connection

Ground Clamp for 4 AWG to 4/0 AWG Copper

The Burndy ground clamp connects a single copper grounding conductor to water pipe or steel conduit. It accepts solid or stranded wire from 4 AWG up to 4/0 AWG and fits pipe diameters between 2-1/2 inches and 3-1/2 inches. The clamp is UL listed to standard 467 for grounding and bonding applications. Galvanized steel hardware provides corrosion resistance in commercial installations.

Wire Range 4 AWG to 4/0 AWG Solid or Stranded

This mechanical connector handles the full range of heavy grounding conductors used in service entrances and industrial power systems. The single-wire design secures one copper cable directly to the pipe without splicing. Copper construction ensures compatibility with the conductor material and prevents galvanic corrosion at the connection point.

Galvanized Hardware for Outdoor Durability

The steel mounting hardware is galvanized to withstand moisture and soil contact in buried or exposed pipe grounding installations. Mechanical screw terminals create a secure connection without specialised crimping tools. The 6.5 inch overall length provides sufficient reach for standard pipe mounting configurations in commercial electrical work.

Highlights

  • UL 467 listed grounding clamp for code-compliant installations
  • Fits 2 1/2 to 3 1/2 inch pipe for versatile mounting options
  • Accepts 4 AWG to 4/0 AWG solid or stranded copper conductors
  • Galvanized steel hardware resists corrosion in outdoor environments
  • 5 inch length provides secure pipe connection

Specifications

BrandBurndy
Length6.000
TypeCommercial

Questions about this item

What does the 4/0 AWG maximum conductor size mean when the clamp is installed on a pipe?

It means the clamp can accept a single copper grounding conductor up to 4/0 AWG, either solid or stranded, and secure it to pipe diameters between 2 1/2 and 3 1/2 inches.

Which standard governs the clamp's grounding performance and what does it cover?

UL 467 listing confirms the connector meets safety requirements for grounding and bonding equipment, covering mechanical strength and conductivity for copper conductors.

What pipe diameters and hardware are required to mount this 6.5 inch clamp?

The clamp fits pipes from 2 1/2 to 3 1/2 inches and uses galvanised steel hardware for corrosion-resistant mounting.
