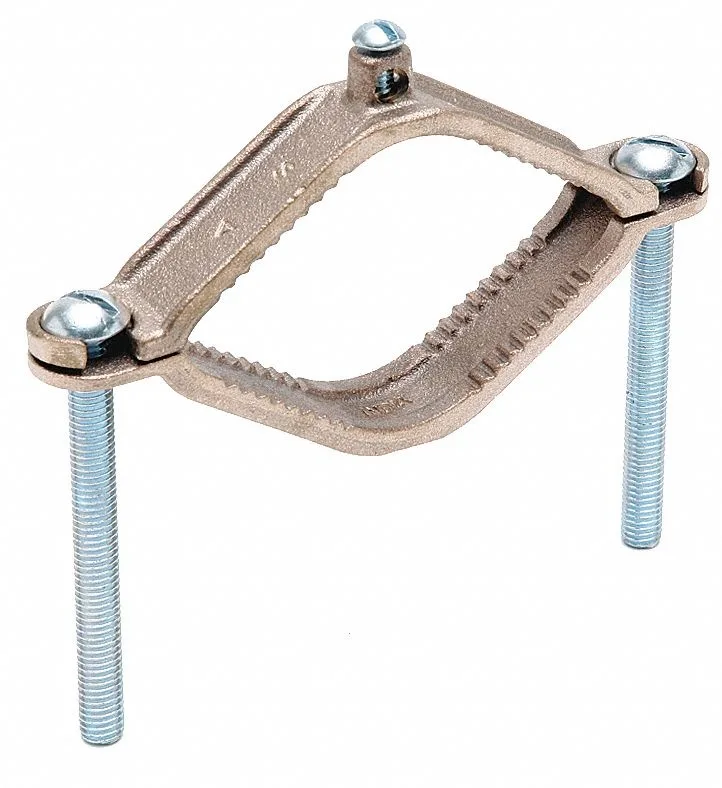

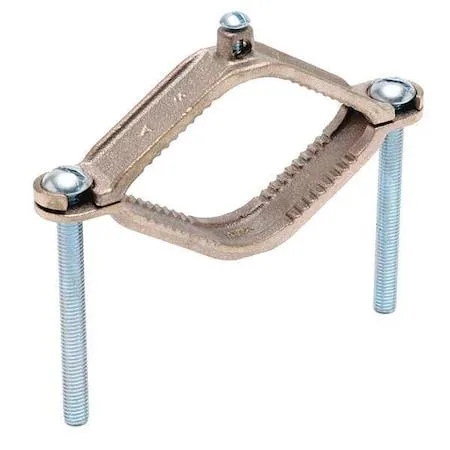

Bronze pipe ground clamp for 4.5 to 6 inch pipe, 8.34 inch length

Burndy

Burndy Pipe Ground Clamp 10AWG 8.34In

SKU CH-13D2-ZB2QY

Grounds copper wire from 10 AWG to 2 AWG to pipes between 4½ and 6 inches using a bronze UL 467-listed clamp

  • Length7.500
  • TypeCommercial
  • Grounds conductors 10 AWG to 2 AWG on pipe 4.5–6 in
  • UL 467 listed mechanical connector for code compliance
  • Bronze body resists corrosion on copper water pipe
  • Single-wire clamp installs without special tools
  • 34 in length spans standard pipe diameters

Ground clamp for 4.5–6 inch pipe

This Burndy grounding connector fits copper water pipe from 4 1/2 to 6 inches in diameter. It accepts a single copper grounding conductor from 10 AWG solid up to 2 AWG stranded. The clamp is UL 467 listed for commercial grounding applications. Installers use it to bond electrical systems to metallic piping.

Bronze body with mechanical screw terminals

The clamp body is made from bronze for corrosion resistance on copper tube and pipe. A mechanical screw terminal secures the grounding wire without specialised crimp tools. At 7.500 inches overall length the clamp wraps the pipe and tightens by hand or with a standard wrench. No additional mounting hardware is required for typical installations.

Passive connection with no power draw

As a passive mechanical connector the clamp draws no power and generates no heat or noise. The bronze construction maintains conductivity over time without active cooling. UL 467 listing confirms the design meets grounding and bonding safety requirements for continuous service. The connection remains stable under normal environmental exposure.

Highlights

  • Grounds conductors 10 AWG to 2 AWG on pipe 4.5–6 in
  • UL 467 listed mechanical connector for code compliance
  • Bronze body resists corrosion on copper water pipe
  • Single-wire clamp installs without special tools
  • 34 in length spans standard pipe diameters

Specifications

BrandBurndy
Length7.500
TypeCommercial

Questions about this item

What pipe sizes does the UL 467 clamp accept?

The clamp fits copper pipe from 4 1/2 inches up to 6 inches in diameter.

What conductor sizes can the bronze body terminate?

It accepts one copper grounding wire from 10 AWG solid through 2 AWG stranded.

Which mounting step is most often missed?

Clean the pipe surface thoroughly before tightening the clamp to ensure a low-resistance ground connection.
