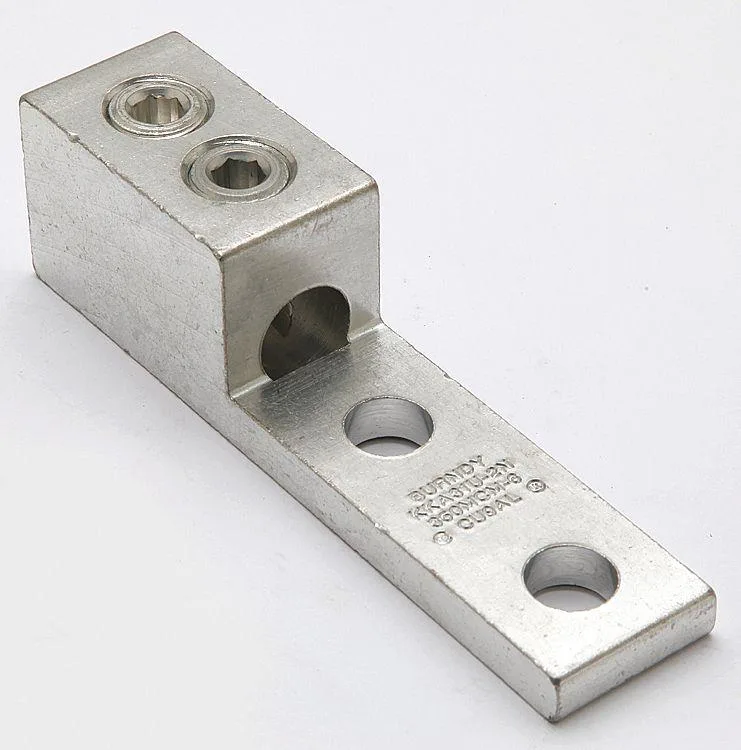

Aluminium lug, hex socket head, two mounting holes, 5.5In overall length

Burndy

Burndy One Conductor Lug 6AWG 5.5In

SKU CH-EMV0-H6DT0

Mechanical connector for aluminum or copper conductors up to 350 kcmil with dual 1/2-inch stud holes on 1.75-inch spacing

  • TypeCommercial
  • One-hole lug accepts 6 AWG to 350 kcmil copper or aluminum
  • Hex socket head enables secure torque without special crimp tools
  • Dual 0.56 in holes on 1.75 in centres match standard bus-bar patterns
  • Aluminium body rated 600 V and 194 °F for panel and feeder work
  • Compact 5.5 in length fits tight enclosures while providing 3.16 in tongue reach

Commercial Mechanical Connector

This Burndy lug is a commercial-grade mechanical connector designed for single-conductor electrical installations. It accepts stranded copper or aluminium wire sizes from 6 AWG up to 350 kcmil and is rated for a maximum voltage of 600 V. The one-piece aluminium body provides a 5.5-inch overall length with a hex-socket head for secure tightening. It suits electricians and installers needing a reliable termination for heavy-gauge conductors.

Verify Stud Size and Wire Range

Before ordering, confirm that your application uses a 1/2-inch stud and that the conductor falls within the 6 AWG to 350 kcmil stranded copper range. The lug features two mounting holes of 0.56-inch diameter spaced 1.75 inches apart, so the mounting pattern must match your busbar or equipment pad. Ensure the installation environment does not exceed the 194-degree Fahrenheit operating temperature limit. The tongue dimensions are 3.16 inches long, 1.27 inches wide and 0.38 inches thick.

Suits Heavy-Gauge Single Runs

This connector suits projects requiring a single, high-amperage termination on a two-hole mounting pattern with a hex-socket drive. It is not intended for multi-conductor feeds or for stud sizes other than 1/2 inch. Installers needing a different hole spacing, a smaller wire range or a crimp-style lug should look at alternative connector types.

Highlights

  • One-hole lug accepts 6 AWG to 350 kcmil copper or aluminum
  • Hex socket head enables secure torque without special crimp tools
  • Dual 0.56 in holes on 1.75 in centres match standard bus-bar patterns
  • Aluminium body rated 600 V and 194 °F for panel and feeder work
  • Compact 5.5 in length fits tight enclosures while providing 3.16 in tongue reach

Specifications

BrandBurndy
TypeCommercial

Questions about this item

Does the lug come with mounting hardware or must I buy bolts separately?

The lug has two 0.56 in holes spaced 1.75 in apart; bolts, washers and nuts are not included.

Should I choose the 6 AWG or 350 kcmil rating for my cable?

The lug accepts stranded copper from 6 AWG up to 350 kcmil; select the size that matches your actual conductor.

What does the 600 V rating mean when the lug is installed in a panel?

It certifies the connector for circuits up to 600 V at a maximum operating temperature of 194 Degrees F.
