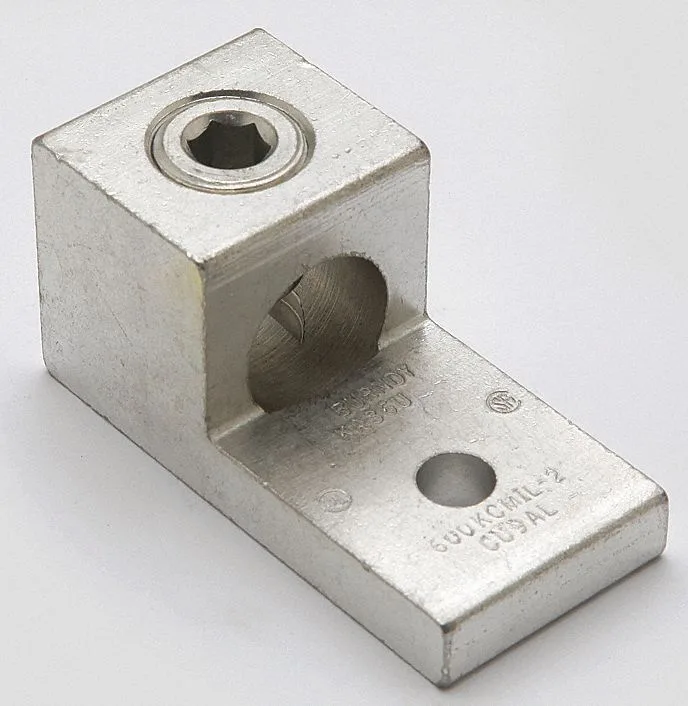

Aluminium one-hole lug with hex socket, 3.19 in long

Burndy

Burndy One Conductor Lug 2AWG 3.19In

SKU CH-AM19-ZAQ7B

Single-hole aluminium lug for 2 AWG stranded copper or aluminium wire, rated 600 V and 194 °F, with 3/8 in stud clearance and 3.19 in overall length

  • TypeCommercial
  • Single-hole lug accepts 2 AWG to 600 kcmil stranded copper
  • Hex socket head speeds installation on 3/8 in studs
  • Aluminium body rated for 600 V and 194 °F operation
  • Tongue measures 1.72 in long by 1.52 in wide by .44 in thick
  • .42 in hole diameter matches standard 3/8 in hardware

Burndy 2 AWG Mechanical Connector

The Burndy One Conductor Lug is a new commercial mechanical connector rated for 600 V and 194 °F maximum operating temperature. It accepts a single aluminium or copper conductor from 2 AWG up to 600 kcmil and secures it with a hex-socket set screw. The aluminium body measures 3.19 in overall with a 1.72 in tongue length, 1.52 in tongue width and .44 in tongue thickness. One 0.42 in mounting hole fits a 3/8 in stud.

Replaces Crimp Lugs When Tooling Is Unavailable

This lug replaces crimp-style terminals where a hydraulic crimper is not on hand or where the installation must be serviceable. The hex-socket set screw allows the connection to be tightened, inspected and re-torqued with a standard Allen key. The jump is worth it when the job calls for a single-conductor, one-hole aluminium lug that can be installed and removed without specialised crimping equipment.

Suits Panel Builders And Field Service Techs

The connector suits electricians, panel builders and field service technicians who need a reusable 600 V aluminium lug for stranded copper or aluminium cable up to 600 kcmil. It is not for buyers who require a multi-hole mounting pattern, a copper-bodied lug, or a two-conductor splice block. Installers needing a smaller wire range or a different stud size should look at other lugs in the range.

Highlights

  • Single-hole lug accepts 2 AWG to 600 kcmil stranded copper
  • Hex socket head speeds installation on 3/8 in studs
  • Aluminium body rated for 600 V and 194 °F operation
  • Tongue measures 1.72 in long by 1.52 in wide by .44 in thick
  • .42 in hole diameter matches standard 3/8 in hardware

Specifications

BrandBurndy
TypeCommercial

Questions about this item

What stud size and hole diameter does the lug require for mounting?

The lug accepts a 3/8 in stud and has a single hole with a .42 in diameter.

How is the conductor secured inside the lug body?

The hex socket head is tightened onto the stranded copper or aluminum conductor, which must be between 2 AWG and 600 kcmil.

When should the lug be inspected or replaced?

Inspect the aluminum body and hex socket for corrosion or overheating if the connector operates near the 194 degree F limit or 600 V rating.
