Aluminium one-hole lug, 1.16 in long, slotted head, silver finish

Burndy

Burndy One Conductor Lug 14AWG 1.16In

SKU CH-KHRF-JQSRA

Connects 14 AWG to 2 AWG copper or aluminum conductors with a 1/4 inch stud hole, rated 600 V and 194 °F

  • Length1.200
  • TypeCommercial
  • Accepts 14 AWG to 2 AWG copper for versatile wiring
  • Rated 600 V for standard electrical circuits
  • Aluminium body resists corrosion in harsh environments
  • Operates up to 194 °F for demanding applications
  • Single 1/4 in stud hole simplifies mounting

Single-conductor lug for 14–2 AWG stranded copper

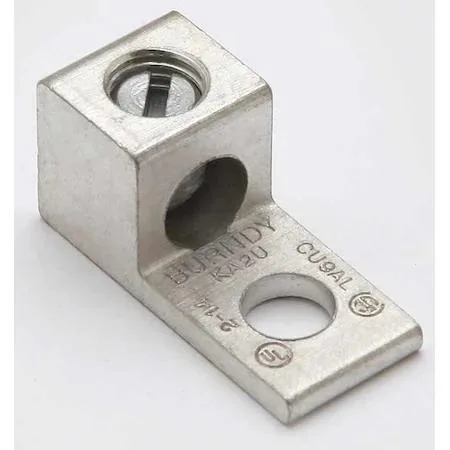

This Burndy mechanical connector accepts stranded copper wire from 14 AWG up to 2 AWG and also suits aluminum conductors. The aluminium body carries a single slotted hole for a 1/4 in stud, giving one termination point in a compact commercial fitting.

Rated 600 V with 194 °F maximum operating

The lug is designed for continuous service at up to 600 volts and withstands ambient temperatures as high as 194 degrees Fahrenheit. Its aluminium construction and single-hole mounting keep installation simple while maintaining reliable electrical contact under normal load conditions.

One-hole tongue sized 0.63 by 0.51 by 0.1 in

The tongue measures 0.63 in long, 0.51 in wide and 0.1 in thick with a 0.27 in hole diameter, so it fits only a single 1/4 in stud. Builders needing multi-hole patterns or different stud sizes must choose another connector.

Highlights

  • Accepts 14 AWG to 2 AWG copper for versatile wiring
  • Rated 600 V for standard electrical circuits
  • Aluminium body resists corrosion in harsh environments
  • Operates up to 194 °F for demanding applications
  • Single 1/4 in stud hole simplifies mounting

Specifications

BrandBurndy
Length1.200
TypeCommercial

Questions about this item

How do I install the 14AWG lug on a 1/4 in stud and what step is often missed?

Strip the wire, insert it fully into the aluminium barrel, then tighten the slotted set-screw until the conductor is clamped; the step most often missed is torquing the screw to the manufacturer's specified value so the connection stays secure under vibration.

What maintenance or replacement will this lug need over time?

Inspect the slotted screw and aluminium body periodically for corrosion or loosening; re-torque the screw if it has backed out, and replace the lug if the barrel shows pitting, cracking or overheating discoloration.

What limit appears first when the lug runs continuously at high load?

The 194 °F maximum operating temperature is the first limit reached under sustained current; exceeding it degrades the aluminium body and can cause the connection to fail.
