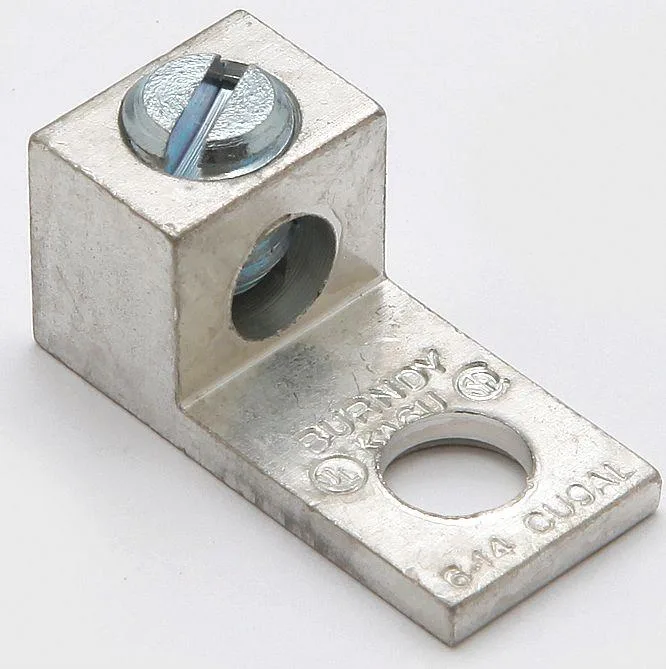

Small aluminium lug, slotted head, single hole, 1.06 in long

Burndy

Burndy One Conductor Lug 14AWG 1.06In

SKU CH-QMW7-8Y0WZ

Connects a single 14 AWG copper or aluminium conductor to a 1/4 inch stud with a slotted head, rated 600 V and 194 °F

  • Length1.000
  • TypeCommercial
  • Accommodates 14 AWG to 6 AWG stranded copper conductors
  • Rated for 600 V maximum operating voltage
  • Withstands temperatures up to 194 °F
  • Aluminium body with single 0.27 in mounting hole
  • Compact 1.06 in overall length for tight spaces

Single-Conductor Lug for 14–6 AWG Copper

This Burndy lug accepts one stranded copper or aluminium conductor from 14 AWG up to 6 AWG. The slotted head suits a 1/4 in stud with a 0.27 in hole. Body material is aluminium rated to 600 V and 194 °F.

Stud Size 1/4 Inch with 0.27 Inch Hole

The single hole measures 0.27 in diameter and matches a 1/4 in stud. Tongue dimensions are 0.63 in long, 0.5 in wide and 0.09 in thick. Overall length is 1.000 in. This mechanical connector terminates one conductor with one termination point.

Rated 600 Volts and 194 °F Continuous

Under sustained load the aluminium body operates continuously at up to 194 °F while carrying rated current at 600 V. The lug is not suited for buyers who need multi-hole patterns, larger stud sizes or higher temperature ratings beyond the stated limits.

Highlights

  • Accommodates 14 AWG to 6 AWG stranded copper conductors
  • Rated for 600 V maximum operating voltage
  • Withstands temperatures up to 194 °F
  • Aluminium body with single 0.27 in mounting hole
  • Compact 1.06 in overall length for tight spaces

Specifications

BrandBurndy
Length1.000
TypeCommercial

Questions about this item

What does the 600 V rating mean when the lug is installed in a circuit?

It indicates the maximum voltage the connector can safely handle in service.

How does the 1/4 in stud size limit the hardware I can use?

The lug accepts only a 1/4 in bolt or stud; larger or smaller fasteners will not fit the 0.27 in hole.

What clearance does the 1.06 in length require in the enclosure?

The overall length is 1.06 in, so allow at least that much straight space for the lug body and tongue.
