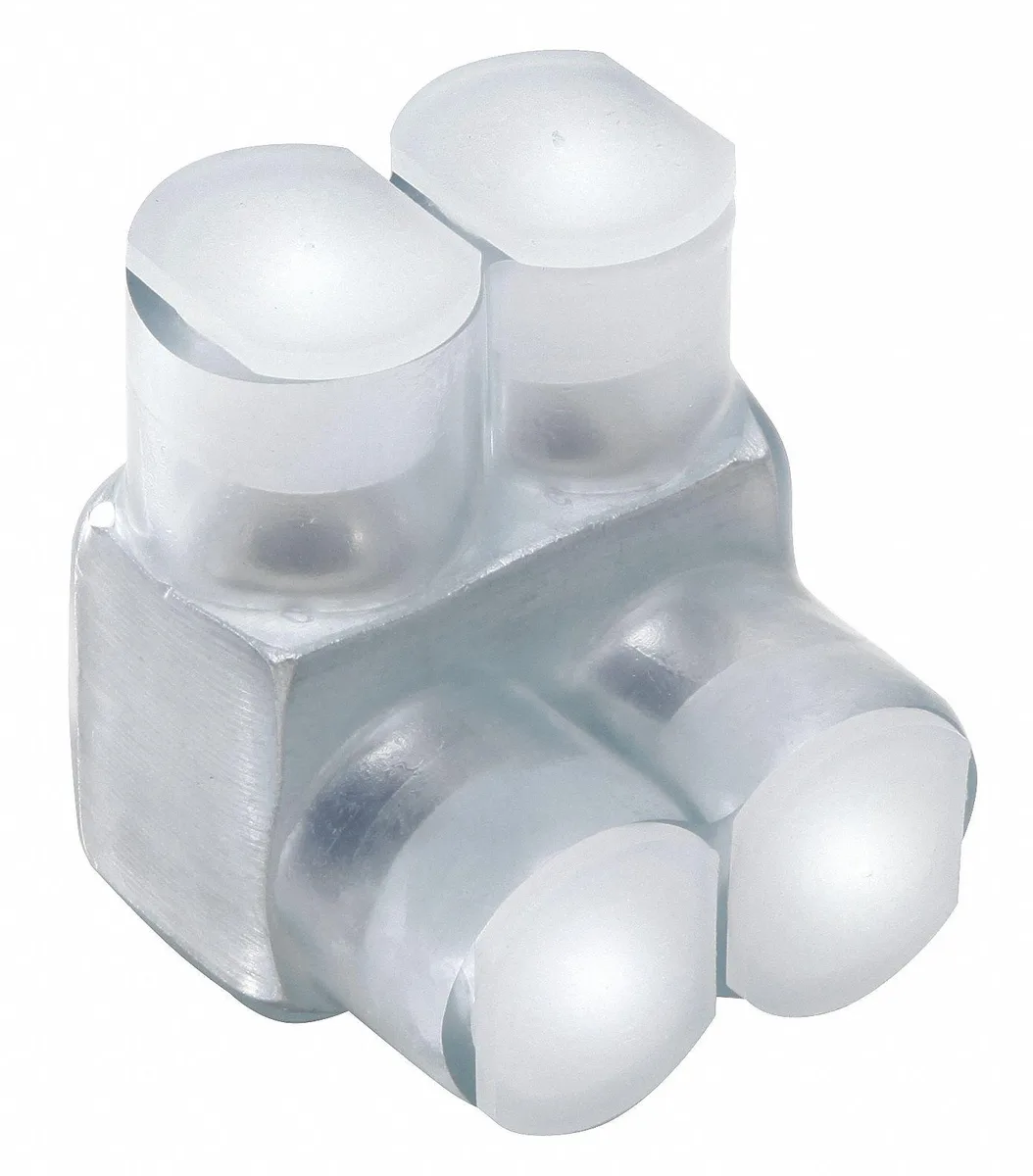

Unplated aluminium multi-tap connector, two ports, 2.75 in long

Burndy

Burndy Multi Tap Connector 4AWG 2.75In 2 Port L

SKU CH-Q4J5-MWEPG

Two-port aluminium multitap connector accepts 4 AWG stranded copper, rated 600 V and 194 °F with V-0 flammability

  • Type2 Ports, Single Sided Entry, L
  • Two-port layout speeds multi-wire connections
  • Single-sided entry simplifies tight-panel wiring
  • Aluminium body accepts copper and aluminium conductors
  • Plastisol insulation rated to 194 °F continuous use
  • UL 94 V-0 flammability rating for safety compliance

Burndy Multi Tap Connector 4 AWG

This Burndy Multi Tap Connector accepts stranded copper wire from 4 AWG up to 600 kcmil. The aluminium body is clear and unplated with Plastisol insulation rated to 194 degrees F. It carries a UL 94 V-0 flammability rating and is RoHS compliant for electrical and industrial wiring tasks.

Installers needing a two-port inline splice

The connector provides two ports with single-sided entry in an L configuration, secured by a 3/8 inch hex set screw. It is rated for 600 volts maximum and suits aluminium or copper conductors. Builders who require a multi-port block with more than two ports or a different entry style should select another model.

Two-port L-style layout with 3/8 inch hex

The defining specification is the two-port, single-sided L layout combined with a 3/8 inch hex drive. This geometry fixes the cable routing and tool requirement, so verify the port count and entry style match the installation before ordering.

Highlights

  • Two-port layout speeds multi-wire connections
  • Single-sided entry simplifies tight-panel wiring
  • Aluminium body accepts copper and aluminium conductors
  • Plastisol insulation rated to 194 °F continuous use
  • UL 94 V-0 flammability rating for safety compliance

Specifications

BrandBurndy
Type2 Ports, Single Sided Entry, L

Questions about this item

What voltage does the 600 V rating cap in practice?

The connector is rated for a maximum of 600 V, so it can be used on circuits up to that voltage without exceeding its insulation limits.

What clearance does the 2.75 in length require for mounting?

The body measures 2.75 in long and uses single-sided entry, so allow at least that much straight run plus room for the hex-head screws.

How is the hex-head hardware installed and what step is often missed?

Strip each conductor, insert fully into the ports, then tighten the 3/8 in hex screws to the manufacturer’s torque value; the step often missed is verifying full conductor insertion before final torque.
