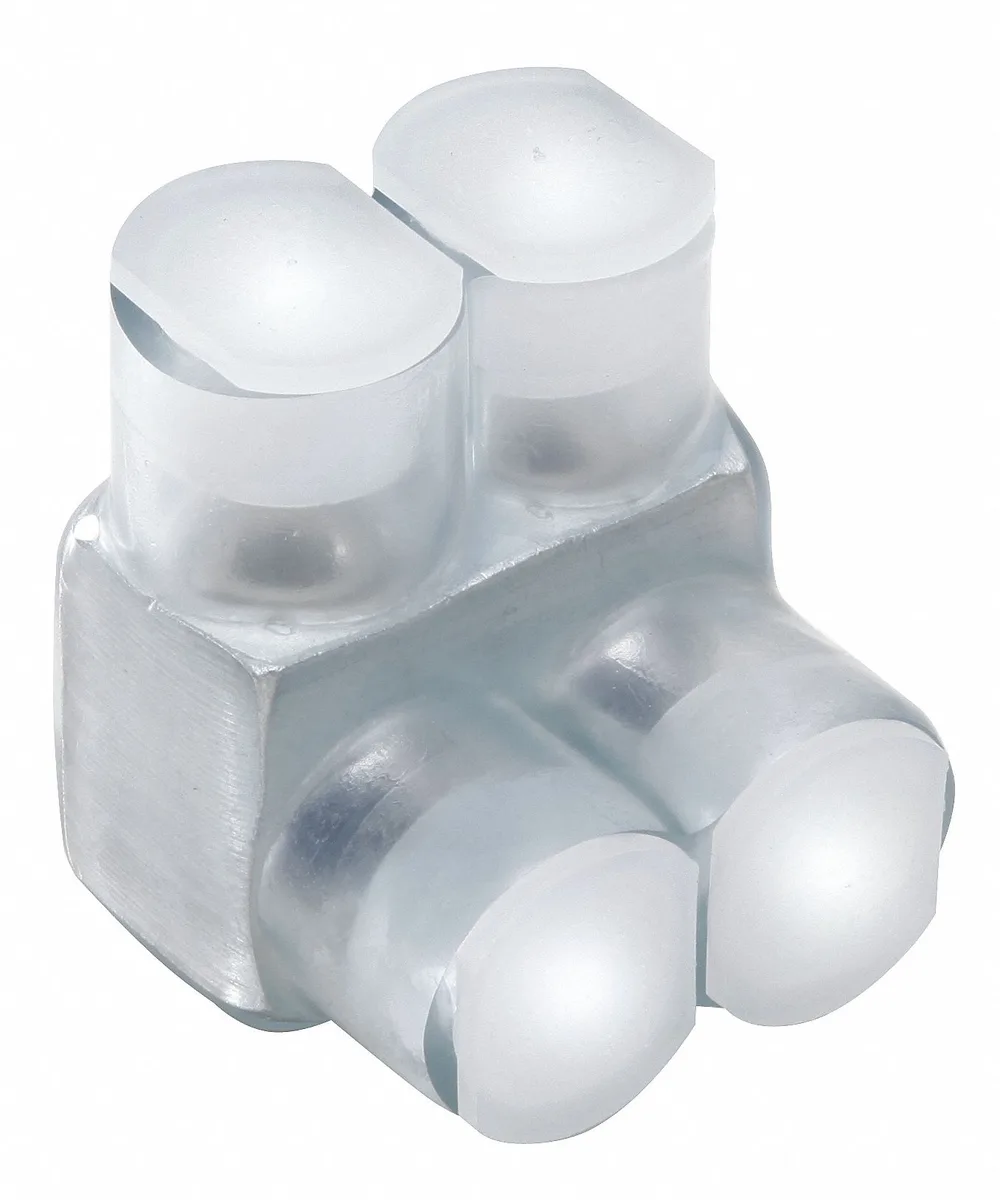

Clear unplated aluminium multitap connector, two ports single sided entry L shape 1.52In

Burndy

Burndy Multi Tap Connector 14AWG 1.52In 2 Ports Single Sided Entry L

SKU CH-TZTA-688XZ

Two-port aluminium connector accepts 14 AWG to 2/0 stranded copper or aluminium wire, rated 600 V and 194 °F

  • Type2 Ports, Single Sided Entry, L
  • Dual-port design enables two-wire connections in one fitting
  • Single-sided entry simplifies wire routing in tight spaces
  • Aluminium body accepts both copper and aluminium conductors
  • Plastisol insulation rated UL 94 V-0 resists flame spread
  • Rated 600 V and 194 °F for demanding electrical environments

Multi-Tap Connector 14 AWG 1.52 In

The Burndy multi-tap connector accepts stranded copper wires from 14 AWG up to 2/0 AWG. Its aluminium body carries a clear plastisol insulation rated to 194 degrees F and 600 V. Two ports with single-sided entry and a 3/16 in hex head allow quick, secure terminations in automotive or industrial wiring. UL 94 V-0 flammability rating and RoHS compliance support regulated installations.

Suits compact two-wire joins.

Electricians joining two conductors in tight panels will appreciate the short 1.52 in length and single-sided layout. The hex-drive terminals speed up installation without special crimp tools. Installations requiring more than two ports, dual-sided entry, or a different conductor range should select an alternative connector body.

Two ports single-sided entry decides fit

The defining specification is the two-port, single-sided entry configuration in an L-style body. This geometry fixes the wiring direction and port count, so the part only fits designs that terminate exactly two conductors from one side. Verify the port arrangement against your schematic before ordering.

Highlights

  • Dual-port design enables two-wire connections in one fitting
  • Single-sided entry simplifies wire routing in tight spaces
  • Aluminium body accepts both copper and aluminium conductors
  • Plastisol insulation rated UL 94 V-0 resists flame spread
  • Rated 600 V and 194 °F for demanding electrical environments

Specifications

BrandBurndy
Type2 Ports, Single Sided Entry, L

Questions about this item

What conductor sizes must I already have to use the 14 AWG minimum and 2/0 AWG maximum ports?

The connector accepts stranded copper wire from 14 AWG up to 2/0 AWG, and also aluminium conductors, so you need cable within that range.

Will the Plastisol insulation and 194 °F rating work beside older 600 V aluminium lugs I plan to keep?

Yes, the Plastisol insulation is rated to 194 °F and the connector is listed for 600 V, matching the voltage of legacy aluminium lugs.

How can I confirm the hex set screws are properly torqued after installation?

Use a 3/16 in hex driver to tighten each set screw until the conductor is firmly clamped and no strands can pull free.
