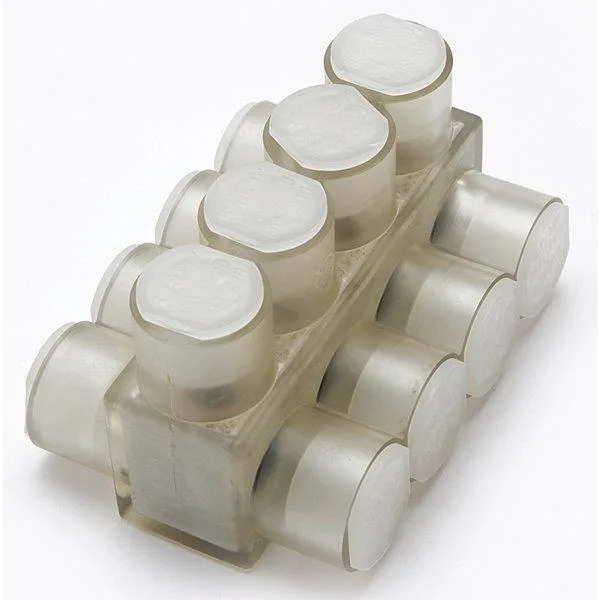

Burndy aluminium T-shaped multi-tap connector, clear unplated finish, four ports with double-sided entry, 3.91 in long

Burndy

Burndy Multi Tap Connector 10AWG 3.91In 4 Port T

SKU CH-BWAW-XG1WC

Four-port aluminium connector accepts 10 AWG to 250 kcmil copper or aluminium conductors with double-sided entry and plastisol insulation rated to 600 V and 194 °F

  • Type4 Ports, Double Sided Entry, T
  • 4-port design accepts multiple conductors
  • Double-sided entry simplifies wiring layout
  • Rated 600 V for standard circuits
  • Plastisol insulation withstands 194 °F
  • UL 94 V-0 flammability rating for safety

4-Port Aluminium Multi-Tap Connector

This Burndy multi-tap connector provides four ports with double-sided entry in a T configuration. The unplated aluminium body accepts both aluminium and copper conductors. It is rated for 600 V maximum voltage and a 194 °F maximum operating temperature. The clear plastisol insulation carries a UL 94 V-0 flammability rating and the product is RoHS compliant.

For 10 AWG to 250 kcmil stranded copper wire joins

The connector suits installers joining stranded copper wires from 10 AWG up to 250 kcmil using a 5/16 in hex driver. It is not for solid-core wire, for voltages above 600 V, or for environments exceeding 194 °F. Buyers needing more than four ports or a different entry geometry should look at other configurations.

Hex-driven installation with plastisol insulation

Installation requires a 5/16 in hex tool to secure conductors in each port. The double-sided entry allows access from either side of the T body. The clear plastisol insulation lets you visually confirm wire seating before final torque. The most common issue is insufficient hex torque leaving a loose connection on larger conductors.

Highlights

  • 4-port design accepts multiple conductors
  • Double-sided entry simplifies wiring layout
  • Rated 600 V for standard circuits
  • Plastisol insulation withstands 194 °F
  • UL 94 V-0 flammability rating for safety

Specifications

BrandBurndy
Type4 Ports, Double Sided Entry, T

Questions about this item

What wire sizes can I connect to the four ports?

Each port accepts stranded copper from 10 AWG up to 250 kcmil.

Can I use the connector with existing aluminium wiring?

Yes, the aluminium body is rated for both aluminium and copper conductors.

How do I verify the connector is properly installed?

Tighten each hex screw with a 5/16 inch driver and confirm all wires are fully seated in the double-sided entry ports.
