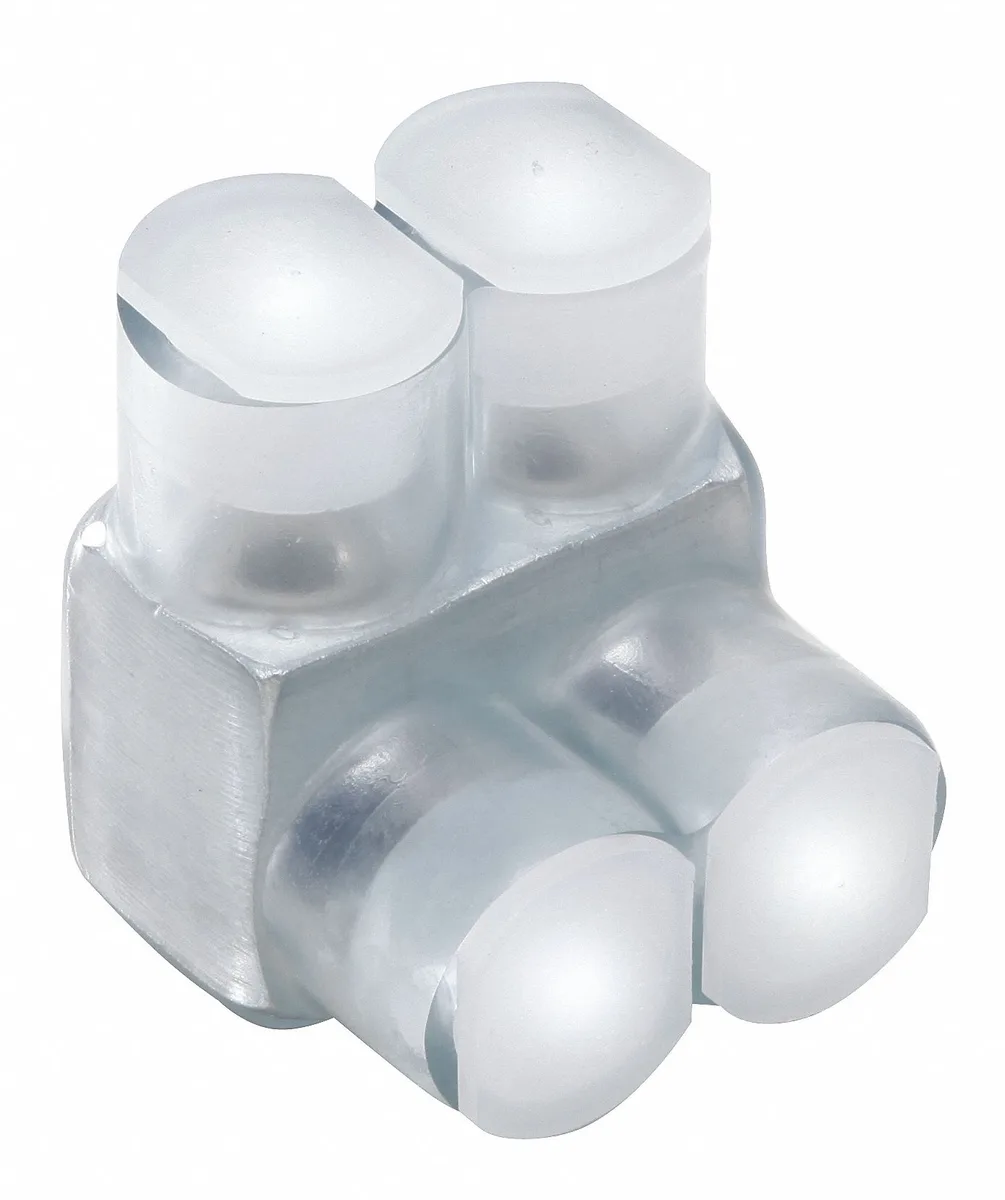

Clear insulated aluminum connector 2.5 inches long with two side entry ports hex head

Burndy

Burndy Multi Tap Connector 10AWG 2.5In 2 Ports Single Sided Entry L

SKU CH-98VM-G9Z4M

Connects two aluminum or copper conductors up to 350 kcmil with insulated 600 V aluminum body and hex-head screws

  • Type2 Ports, Single Sided Entry, L
  • Dual-port design simplifies wire splicing
  • 10 AWG minimum wire size suits common circuits
  • 600 V rating handles standard electrical loads
  • 194 °F max temperature ensures reliable operation
  • UL and CSA listed for code compliance

Connector for 10 AWG to 350 kcmil

This Burndy multi tap connector joins two conductors in a compact 2.5 inch body. It accepts stranded copper or aluminium wire from 10 AWG up to 350 kcmil. The clear plastisol insulation is rated for 600 volts and 194 degrees F. A 5/16 inch hex drive secures each port.

Suited for dual inline splices

Electricians making inline taps on aluminium or copper feeders will find the two-port, single-sided layout convenient. The connector is UL listed to 486A and 486B and CSA approved, meeting common code requirements. Installers who need three or more ports, or a double-sided entry for opposing cables, should select a different body style.

Fits in tight enclosures

The short insulated body slides into junction boxes or wireways without special tools beyond a hex driver. No mounting holes are required, freeing space for other components. RoHS compliant construction supports regulated projects.

Highlights

  • Dual-port design simplifies wire splicing
  • 10 AWG minimum wire size suits common circuits
  • 600 V rating handles standard electrical loads
  • 194 °F max temperature ensures reliable operation
  • UL and CSA listed for code compliance

Specifications

BrandBurndy
Type2 Ports, Single Sided Entry, L

Questions about this item

What wire sizes can I connect with the 10 AWG minimum and 350 kcmil maximum range?

The connector accepts stranded copper from 10 AWG up to 350 kcmil, plus aluminum conductors of the same range, so you can join a wide span of gauges in one fitting.

Will the 5/16 inch hex head work with the hex driver I already use for standard lugs?

Yes, the head uses a 5/16 in hex, which matches the common driver size for many mechanical lugs and compression tools.

How can I confirm the connection is sound after torquing the set screws?

Verify that each conductor is fully seated, the hex screws are snug, the clear Plastisol insulation shows no gaps, and the assembly carries the UL 486A and 486B listings for 600 V service.
