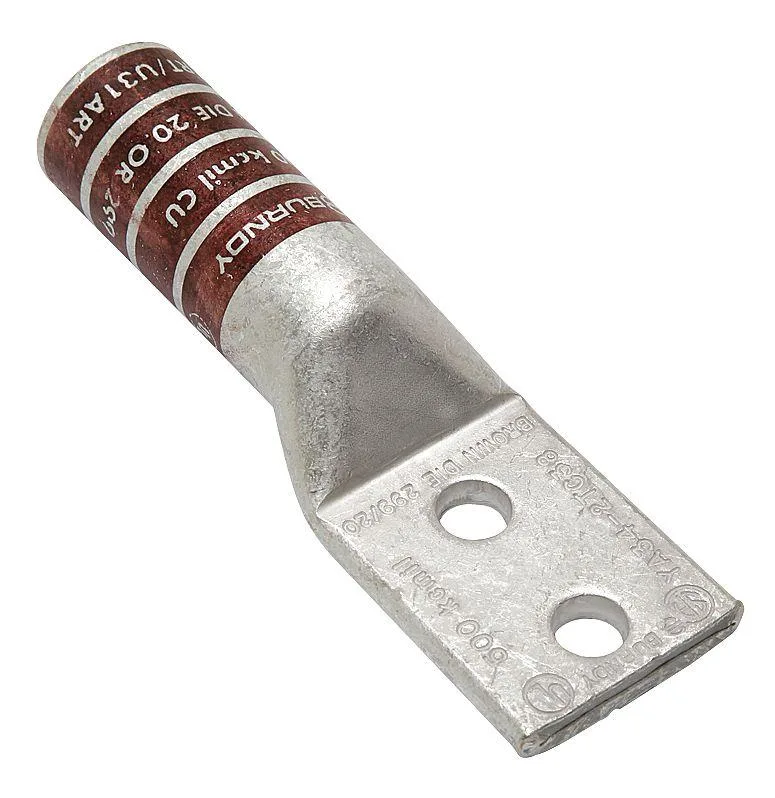

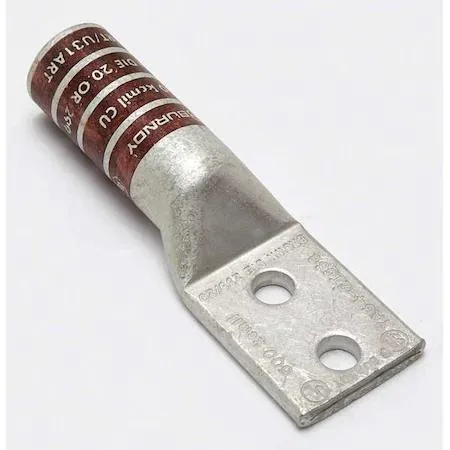

Copper compression lug, long barrel, two-hole tongue, brown colour code

Burndy

Burndy Long Barrel Telecom CULug 2-Hole 500 kcmil Copper Lug

SKU CH-VBP0-A5R28

Two-hole copper compression lug for 500 kcmil wire, long barrel, CSA certified and UL listed to 35 kV

  • TypeCommercial
  • CSA certified and UL listed for code compliance
  • Long barrel design improves crimp contact on 500 kcmil copper
  • Two-hole mounting with 1 in spacing secures connections
  • Rated 35 kV and 194 °F for demanding telecom use
  • Straight tongue and 1.55 in width fit standard studs

Long-Barrel Telecom Lug

This Burndy compression lug accepts a single 500 kcmil stranded copper conductor. The straight tongue carries two holes spaced one inch centre-to-centre for 3/8-inch studs. It is CSA certified and UL listed to UL 486A-486B for commercial electrical installations.

Build Integration

The lug terminates a heavy copper cable directly onto a busbar or terminal block without an intermediate connector. Its long barrel provides extended crimp length for mechanical strength, while the straight tongue keeps the cable run inline. No inspection hole is present, so visual verification of conductor insertion must be done before crimping.

Included Benefits

The brown colour code and die code 20 identify the correct crimp tooling for a 500 kcmil conductor, reducing installation errors. Copper construction ensures low resistance at voltages up to 35 kV and continuous operation at 194 degrees F. The tongue width of 1.55 inches matches standard two-hole mounting patterns.

Highlights

  • CSA certified and UL listed for code compliance
  • Long barrel design improves crimp contact on 500 kcmil copper
  • Two-hole mounting with 1 in spacing secures connections
  • Rated 35 kV and 194 °F for demanding telecom use
  • Straight tongue and 1.55 in width fit standard studs

Specifications

BrandBurndy
TypeCommercial

Questions about this item

At what temperature does the lug reach its maximum operating limit under sustained load?

The lug is rated for a maximum operating temperature of 194 degrees Fahrenheit.

How much heat or power loss should I expect when this lug runs continuously?

The copper construction and crimp termination minimise resistance, keeping heat rise low at the rated 35 kV maximum voltage.

What crimp tool and die are required to install this lug correctly?

Use a die coded 20 or 299 that matches the brown colour code for 500 kcmil copper conductor.
