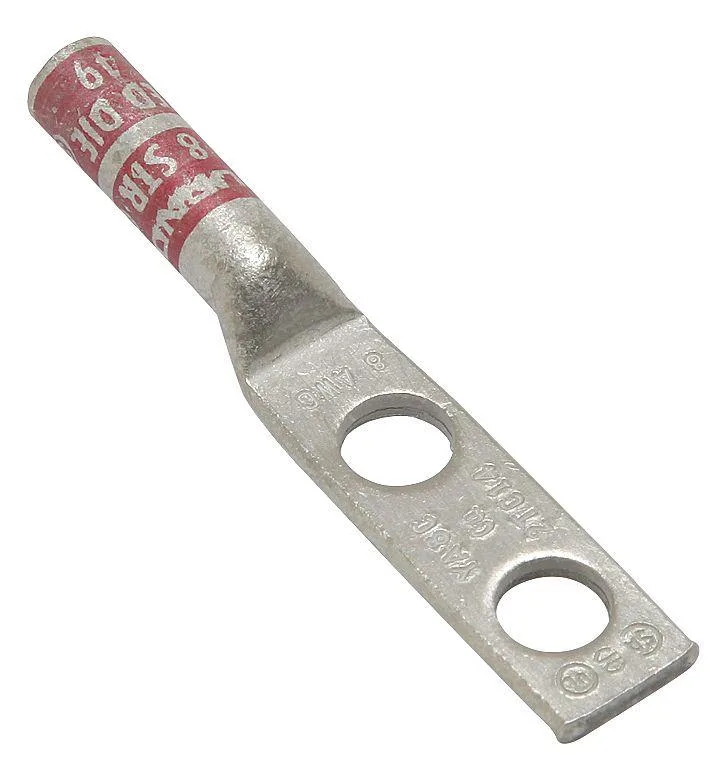

Copper compression lug with two mounting holes and long barrel

Burndy

Burndy Long Barrel Telecom CU Lug 2 Hole 8 AWG

SKU CH-HH7P-KMYF9

Two-hole copper compression lug for 8 AWG wire with 0.625 in hole spacing and 35 kV rating

  • Length2.500
  • TypeCommercial
  • Long barrel increases crimp contact area for reliable connections
  • Two-hole mounting pattern with 0.625 in spacing secures lug firmly
  • Copper construction rated to 35 kV and 194 °F maximum operating temperature
  • UL 486A-486B listed and CSA certified for code compliance
  • Red colour code and die code 49 simplify correct tool selection

Burndy Copper Compression Lug

This Burndy copper compression lug is built for commercial electrical installations that require a reliable crimp termination on 8 AWG stranded copper wire. The long barrel design provides ample contact area, while the straight tongue with two mounting holes simplifies secure attachment to busbars or equipment pads.

Installers needing a 1/4 inch stud pattern

Electricians terminating 8 AWG copper conductors on a 1/4 inch stud with 0.625 inch hole spacing will find this lug matches their hardware exactly. Projects that require a different wire gauge, a different stud size, or a lug with an inspection window should select an alternative part.

Two-hole mounting with 0.625 inch centres

The lug features two holes spaced 0.625 inch centre-to-centre on a straight tongue measuring 0.44 inch wide, fixing the mounting geometry for the connection. This spacing is the critical dimension that determines whether the lug aligns with the existing hole pattern on the busbar or terminal block.

Highlights

  • Long barrel increases crimp contact area for reliable connections
  • Two-hole mounting pattern with 0.625 in spacing secures lug firmly
  • Copper construction rated to 35 kV and 194 °F maximum operating temperature
  • UL 486A-486B listed and CSA certified for code compliance
  • Red colour code and die code 49 simplify correct tool selection

Specifications

BrandBurndy
Length2.500
TypeCommercial

Questions about this item

How can I confirm the lug is correctly crimped onto 8 AWG copper wire?

After crimping with a die coded 49, the copper barrel should show no gaps and the conductor must be fully seated inside the 2.500 in long barrel for a solid electrical connection.

What comes with the lug and what must I purchase separately?

The package contains the copper compression lug with two 1/4 in mounting holes spaced .625 in apart; crimping tool, die 49 and 8 AWG copper wire are sold separately.

Which lug version matches a red colour code and 35 kV rating?

This model carries the red colour code, die code 49, and is UL 486A-486B listed for up to 35 kV, making it the correct choice for that specification.
