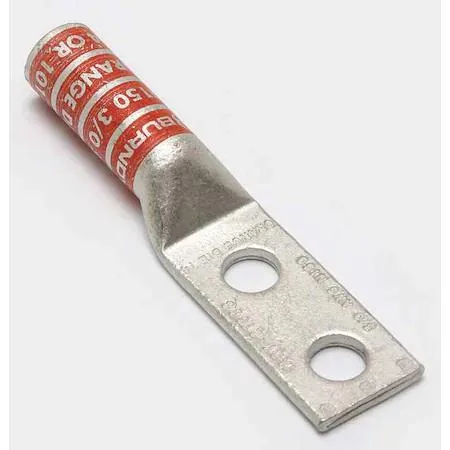

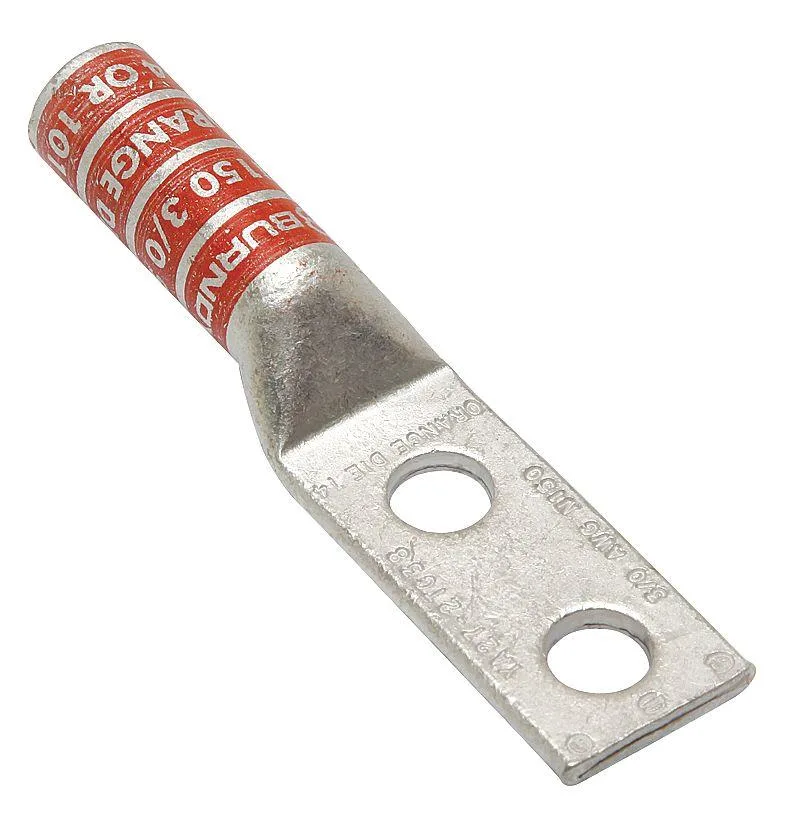

Copper two-hole compression lug with long barrel and orange colour code

Burndy

Burndy Long Barrel Telecom CU Lug 2 Hole 3/0 AWG

SKU CH-T54H-4TJ9H

Two-hole copper compression lug with long barrel, 1 in hole spacing, CSA certified and UL listed for 35 kV AC

  • TypeCommercial
  • Two-hole lug rated 35 kV AC for high-voltage telecom use
  • Long-barrel design with die code 14 ensures secure crimp on 3/0 AWG copper
  • Straight tongue 0.9 in wide fits 3/8 in studs on 1 in centres
  • Copper construction withstands 194 °F continuous operating temperature
  • UL 486A-486B and CSA certified for code-compliant installations

Burndy 3/0 AWG Two-Hole Copper Lug

This Burndy long-barrel compression lug is built for stranded copper conductors at 3/0 AWG. It suits commercial electrical and telecom installations that require a straight, two-hole copper termination rated to 35 kV AC. The orange color code and die code 14 identify the correct crimp tooling. It is UL listed and CSA certified for code-compliant work.

Crimp-Only Termination With Inspection Trade-Offs

The lug uses a crimp termination style and omits an inspection hole, so visual verification of conductor insertion is not possible after crimping. Installers must rely on proper tool calibration and the die code 14 to ensure a reliable joint. The straight tongue and 0.9 in width fit standard 3/8 in stud patterns with a 1 in hole center-to-center spacing.

194 °F Thermal Limit And Single-Size Conductor Range

Rated for a maximum operating temperature of 194 °F, the connector handles typical telecom and industrial ambient conditions. It accepts only 3/0 AWG stranded copper wire, so it cannot accommodate larger or smaller conductors. The copper body provides high conductivity for loads within the 35 kV AC rating.

Highlights

  • Two-hole lug rated 35 kV AC for high-voltage telecom use
  • Long-barrel design with die code 14 ensures secure crimp on 3/0 AWG copper
  • Straight tongue 0.9 in wide fits 3/8 in studs on 1 in centres
  • Copper construction withstands 194 °F continuous operating temperature
  • UL 486A-486B and CSA certified for code-compliant installations

Specifications

BrandBurndy
TypeCommercial

Questions about this item

Will the crimped 3/0 AWG copper conductor need re-crimping or replacement over time?

The copper lug is designed for a permanent crimp termination; with proper installation using die code 14 it should not require re-crimping or replacement under normal conditions.

What is the first limit reached when the lug carries continuous current at its 35 kV AC rating?

The maximum operating temperature of 194 °F is the primary thermal limit during sustained full-load operation.

Does the lug generate noticeable heat or require extra cooling when installed in a panel that runs all day?

The copper body runs at the conductor temperature; at 194 °F maximum it will be hot to touch but needs no active cooling if ambient conditions stay within spec.
