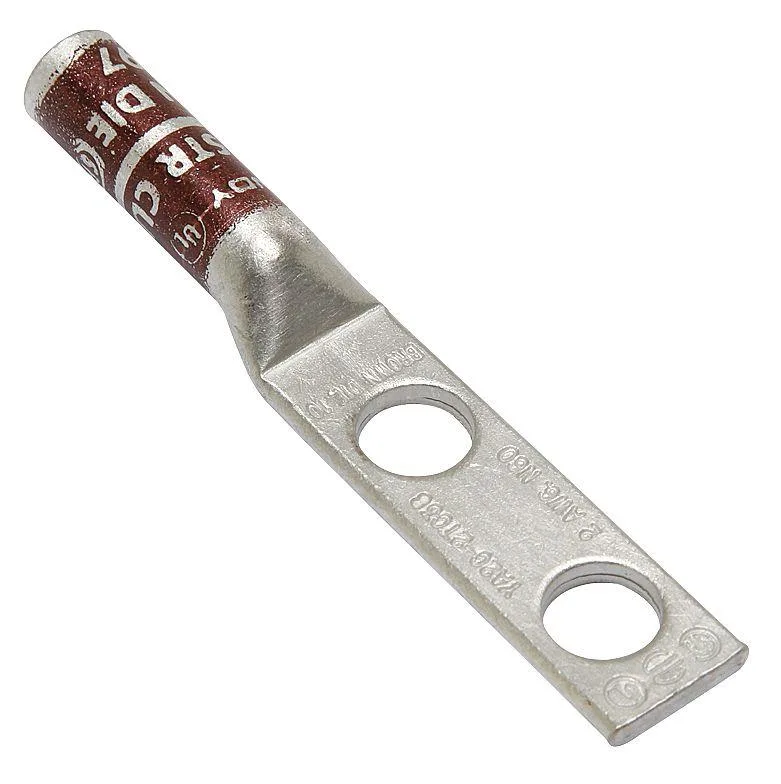

Copper two-hole lug with long barrel, brown colour code, straight tongue .6 in wide, 1 in hole spacing, 3.500 in length

Burndy

Burndy Long Barrel Telecom CU Lug 2 Hole 2 AWG

SKU CH-DQ0W-6763H

Two-hole copper compression lug with 1 in hole spacing, 0.6 in tongue width and 35 kV AC rating

  • Length3.500
  • TypeCommercial
  • Long barrel design improves crimp reliability
  • Two-hole mounting ensures secure termination
  • CSA certified and UL 486A-486B listed for code compliance
  • Copper construction rated to 35 kV AC and 194 °F
  • Straight tongue with .6 in width fits 3/8 in studs

Burndy Long Barrel Telecom CU Lug

The Burndy Long Barrel Telecom CU Lug is a two-hole compression connector built for stranded copper wire at 2 AWG. It carries a brown colour code and die code 10 for quick identification. The straight tongue measures .6 inches wide with holes spaced 1 inch centre to centre. Rated to 35 kV AC and 194 degrees F, it meets CSA Certified, UL 486A-486B and UL Listed standards for commercial electrical installations.

Upgrading from standard barrel connectors

This long-barrel design provides additional crimp length compared with shorter barrels, improving mechanical strength and conductivity on 2 AWG copper conductors. The jump is worthwhile when vibration, thermal cycling or pull-out resistance are concerns in telecom or industrial power circuits. No inspection hole is present, so visual verification of wire insertion must be done before crimping.

Suited for commercial copper terminations

Installers terminating 2 AWG stranded copper to 3/8 inch studs in panel boards, switchgear or telecom infrastructure will find the dimensions and certifications aligned with typical spec sheets. Buyers needing an inspection window, a different stud size, or a connector rated for aluminium conductors should look at alternative lug designs. The 3.500 inch overall length fits standard long-barrel tooling without modification.

Highlights

  • Long barrel design improves crimp reliability
  • Two-hole mounting ensures secure termination
  • CSA certified and UL 486A-486B listed for code compliance
  • Copper construction rated to 35 kV AC and 194 °F
  • Straight tongue with .6 in width fits 3/8 in studs

Specifications

BrandBurndy
Length3.500
TypeCommercial

Questions about this item

What stud size and hole spacing do the two mounting holes use?

The lug has two holes for 3/8 inch studs with a 1 inch centre-to-centre distance.

Which crimp die and barrel length are specified for installing this connector?

Use die code 10 with the long barrel; the brown colour code identifies the correct die set.

What maximum temperature and voltage is the copper lug rated for in service?

Rated for 194 degrees F maximum operating temperature and 35 kV AC maximum voltage.
