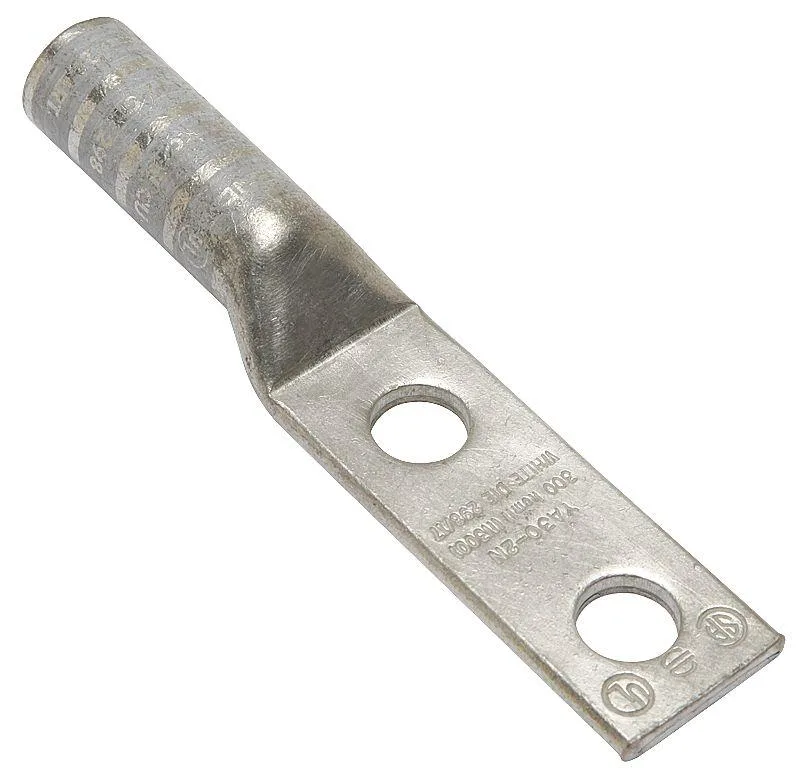

Copper compression lug, long barrel, two holes, white colour code

Burndy

Burndy Long Barrel CU Lug 2 Hole 300 kcmil

SKU CH-DA23-X8A5W

Long-barrel copper compression lug for 300 kcmil wire with two 1/2-inch stud holes on 1.75-inch centres, rated 35 kV and 194 °F

  • TypeCommercial
  • CSA and UL certified for code-compliant installations
  • Long barrel design ensures secure crimp on 300 kcmil copper
  • Two-hole pattern with 1.75 in spacing matches standard stud layouts
  • Rated to 35 kV and 194 °F for demanding power circuits
  • White color code and die code 17 simplify tool selection

300 kcmil Copper Lug for High-Voltage Crimp

This Burndy long-barrel compression lug is built for 300 kcmil stranded copper conductors in commercial electrical installations. It accepts a 1/2 in stud on a 1.75 in hole centre spacing and carries a 35 kV maximum voltage rating. The straight tongue measures 1.2 in wide and uses a white colour code with die code 17, 298 for correct tool selection.

Replaces Short-Barrel Lugs When Inspection Holes

The long barrel adds contact length for a more secure crimp on 300 kcmil wire where a shorter barrel would leave less compression area. It is the correct choice when the job specifies CSA certification and UL 486A-486B listing but does not call for an inspection hole. Installers who need a visible wire-stop should select a different lug style.

Copper Body Withstands 194 Degrees F Under

The solid copper construction maintains conductivity at the rated 194 Degrees F maximum operating temperature during sustained current flow. Crimp termination style creates a permanent, low-resistance joint that does not loosen with vibration or thermal cycling. The lug is UL Listed for reliable performance in demanding commercial power distribution.

Highlights

  • CSA and UL certified for code-compliant installations
  • Long barrel design ensures secure crimp on 300 kcmil copper
  • Two-hole pattern with 1.75 in spacing matches standard stud layouts
  • Rated to 35 kV and 194 °F for demanding power circuits
  • White color code and die code 17 simplify tool selection

Specifications

BrandBurndy
TypeCommercial

Questions about this item

What stud size and hole spacing do I need to mount this lug?

The lug has two holes for 1/2 in studs with a centre-to-centre distance of 1.75 in.

Which crimp die should I use and how do I confirm the connection?

Use a die coded 17 or 298; there is no inspection hole, so verify the crimp visually or with a pull test.

What maximum temperature and voltage is this lug rated for in service?

It is rated for a maximum operating temperature of 194 °F and a maximum voltage of 35 kV.
