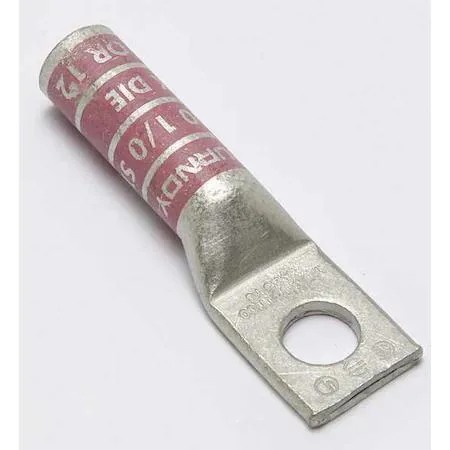

Copper telecom lug, long barrel, one hole, pink colour code, 2.700 in long

Burndy

Burndy Long Barrel Copper Telecom Lug 1 Hole 1/0 AWG

SKU CH-10C1-QTM1D

Long-barrel copper lug accepts one 1/0 AWG stranded conductor with a 3/8 in. stud hole, crimp termination and 35 kV AC rating

  • Length2.700
  • TypeCommercial
  • Long barrel design ensures secure crimp connection
  • Pink colour code 12 simplifies die selection for 1/0 AWG
  • Straight tongue with .75 in width fits 3/8 in stud cleanly
  • Copper construction rated to 194 °F handles 35 kV AC loads
  • 700 in length provides ample barrel for reliable termination

Copper lug for 1/0 AWG telecom work

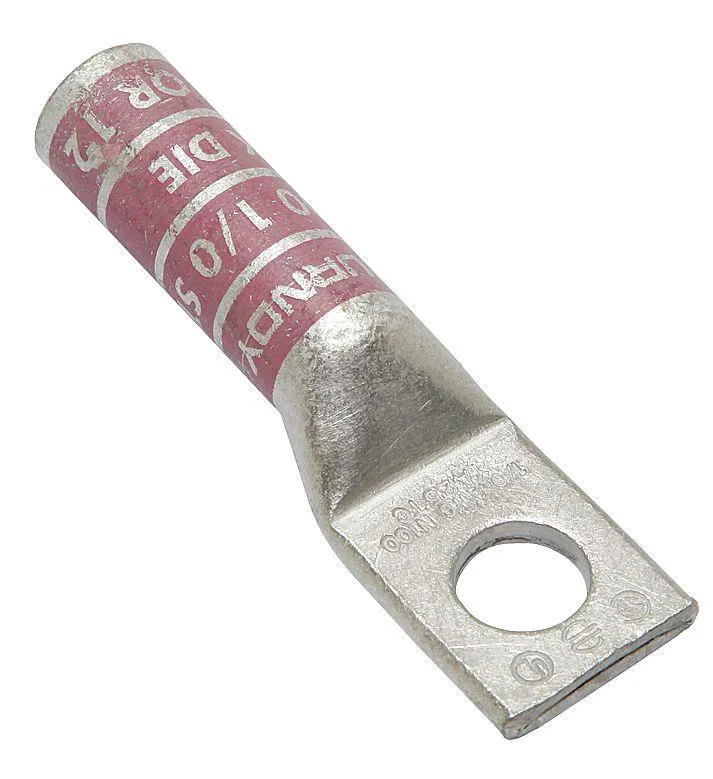

The Burndy long-barrel lug is a one-hole copper compression connector built for 1/0 AWG stranded copper wire. Its pink colour code and die code 12 identify the correct crimp tool setting for commercial electrical installations. The straight tongue measures 0.75 in wide and fits a 3/8 in stud. Rated for 35 kV AC and a maximum operating temperature of 194 Degrees F.

Single-conductor capacity with long-barrel headroom

The barrel accepts only 1/0 AWG stranded copper, both minimum and maximum, so the connector is dedicated to that single wire size. The long barrel provides extra crimp length for mechanical strength and lower resistance on high-current telecom feeds. No inspection hole is present, so visual verification of wire insertion must be done before crimping. It cannot accommodate larger or smaller conductors.

Thermal and electrical behaviour under load

Copper construction carries the rated 35 kV AC continuously while staying within the 194 Degrees F temperature ceiling in normal service. The crimp termination creates a low-resistance joint that minimises local heating at the connection point. No moving parts or insulation mean silent operation and no additional power draw beyond the circuit current itself.

Highlights

  • Long barrel design ensures secure crimp connection
  • Pink colour code 12 simplifies die selection for 1/0 AWG
  • Straight tongue with .75 in width fits 3/8 in stud cleanly
  • Copper construction rated to 194 °F handles 35 kV AC loads
  • 700 in length provides ample barrel for reliable termination

Specifications

BrandBurndy
Length2.700
TypeCommercial

Questions about this item

Will the 0.75 in tongue width and 3/8 in stud size match the bus bars I already have?

The lug has a 0.75 in tongue width and is drilled for a 3/8 in stud, so it will fit bus bars with the same hole pattern.

How can I confirm the crimp is correct after installing the 1/0 AWG copper wire?

Use a die coded 12 or 348; the pink colour code on the barrel verifies the right tool setting for 1/0 AWG copper.

Does the package include any mounting hardware or heat-shrink tubing?

The lug is sold as a single copper compression connector; bolts, washers and insulation must be sourced separately.
