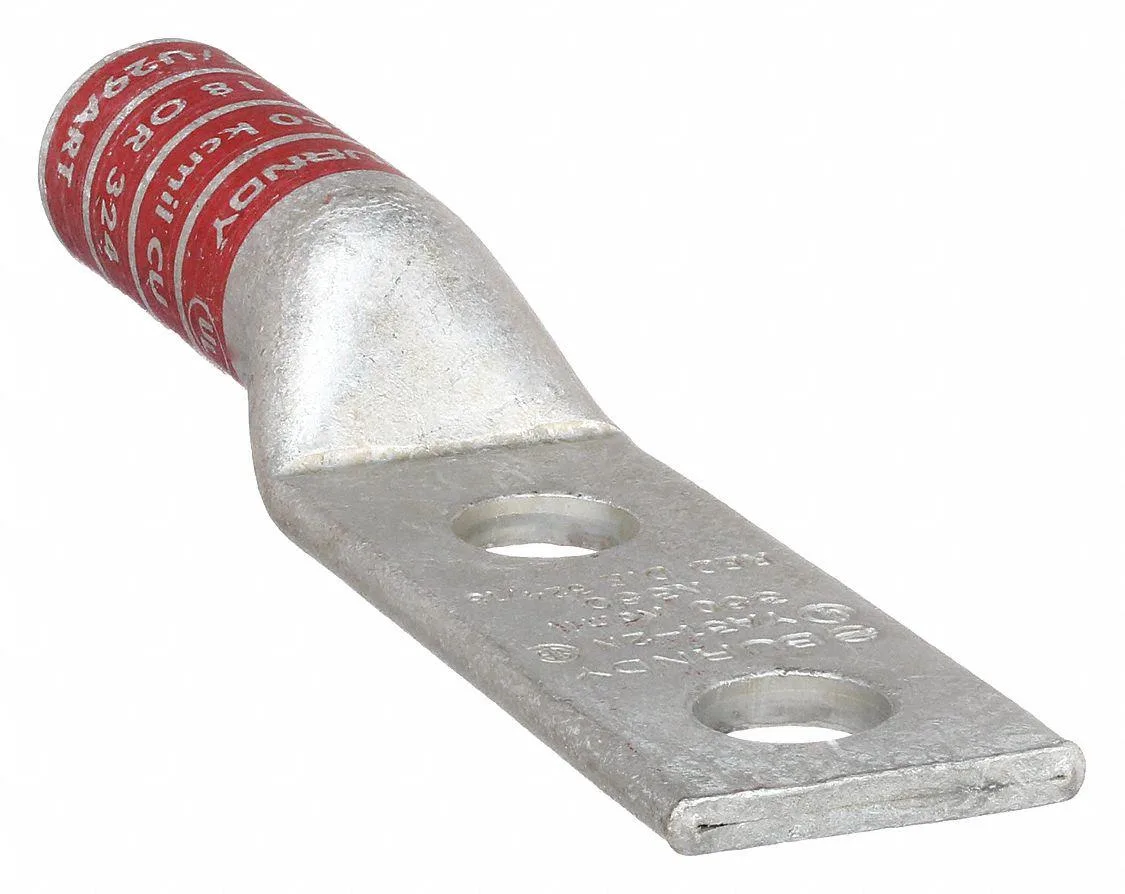

Copper lug with two mounting holes and long barrel

Burndy

Burndy Long Barrel Copper Lug 2 Hole 350 kcmil

SKU CH-DEY1-FF2GV

Two-hole copper compression lug with long barrel for 350 kcmil stranded wire, 1.75 in hole spacing, 1.29 in tongue width, rated to 35 kV and 194 °F, CSA certified and UL listed

  • Length7.000
  • TypeCommercial
  • CSA and UL listed for code compliance
  • Long barrel design ensures secure crimp connection
  • Red colour code and die code 18 for quick identification
  • Two-hole pattern with 1.75 in spacing matches standard studs
  • Rated to 35 kV and 194 °F for demanding applications

Copper Lug for 350 kcmil Cable

This Burndy compression lug terminates 350 kcmil stranded copper conductors in industrial and commercial installations. The long barrel design provides extended crimp area for secure connections on heavy gauge wire. Rated for 35 kV maximum voltage and 194 Degrees F operating temperature, it meets UL 486A-486B and CSA standards.

Suited for Dual-Hole Mounting on Copper

The two-hole tongue with 1.75 in centre spacing fits 1/2 in studs on busbars or terminal blocks. Installers needing a single-hole lug, a different conductor range, or an inspection window should select another part. The fixed 350 kcmil size does not accommodate smaller or larger cables.

Long Barrel with Red Colour Code

The barrel carries die code 18 and red colour identification for tool selection. Crimp termination uses standard compression dies matching the 324 code. No inspection hole is present on this model.

Highlights

  • CSA and UL listed for code compliance
  • Long barrel design ensures secure crimp connection
  • Red colour code and die code 18 for quick identification
  • Two-hole pattern with 1.75 in spacing matches standard studs
  • Rated to 35 kV and 194 °F for demanding applications

Specifications

BrandBurndy
Length7.000
TypeCommercial

Questions about this item

Will the 350 kcmil copper lug fit the existing 1/2 in stud spacing on my bus bar?

The lug has two holes with a 1.75 in center-to-center distance for 1/2 in studs, matching common bus-bar patterns.

How can I verify the crimp is correct after installing the lug?

Use a Burndy die coded 18 or 324; the red color code on the barrel confirms the right die was selected for 350 kcmil copper.

Does the package include mounting hardware or heat-shrink tubing?

Only the copper compression lug is supplied; bolts, washers and insulation must be purchased separately.
