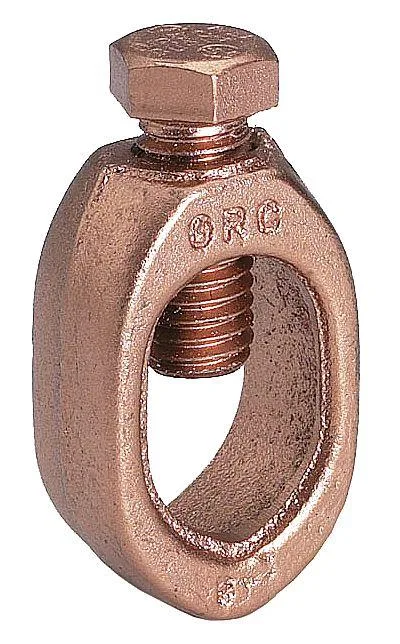

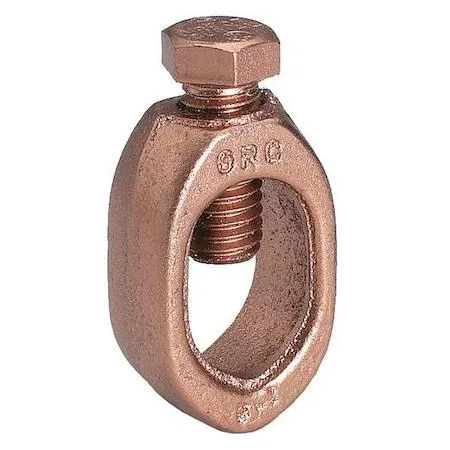

Burndy Ground Rod Clamp 10AWG 2In PK5

Ground Rod Clamp 10 AWG Solid

This copper grounding connector is built for direct-burial applications and accepts a single grounding wire from 10 AWG solid up to 2 AWG stranded. It clamps onto a 1/2-inch ground rod using a 3/8-inch bolt and carries UL 467 listing for direct burial. The clamp is suited for electricians and contractors who need a reliable mechanical connection in commercial grounding installations.

Capacity and headroom 10 to 2 AWG

The clamp handles a wide conductor range from 10 AWG solid minimum to 2 AWG stranded maximum, giving headroom for heavier grounding conductors in the same fitting. It runs out when the wire exceeds 2 AWG stranded or when a larger rod diameter is required. The single-wire design means it cannot terminate multiple grounding conductors simultaneously.

Build fit copper rod 1/2 inch

Installation requires a 1/2-inch ground rod and a 3/8-inch bolt, with no specialised tools beyond standard hand tools for tightening. The copper body is intended for use with copper conductors only, so it frees the installer from compatibility concerns with dissimilar metals. It is not for aluminium conductors, larger rods, or multi-wire termination points.
