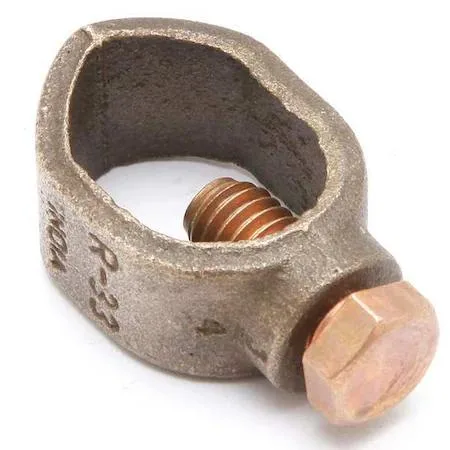

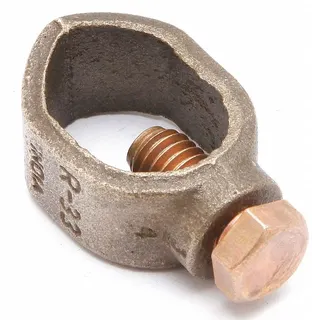

Five copper ground rod clamps, each 1.71 inches, for 10 to 4 AWG wire

Burndy

Burndy Ground Rod Clamp 10AWG 1.71In PK5

SKU CH-SVFT-TE6GX

Connects 10–4 AWG copper grounding wire to a 3/4 in rod, UL 467 listed for direct burial, pack of five

  • TypeCommercial
  • Fits 10 to 4 AWG copper grounding wire
  • UL 467 listed for direct burial applications
  • Connects grounding wire to 3/4 in ground rod
  • Copper construction resists corrosion in soil
  • Pack of five clamps for multiple installations

Ground rod clamp for 10 AWG wire

The Burndy clamp connects a single copper grounding conductor to a 3/4 in ground rod. It accepts stranded wire from 10 AWG up to 4 AWG and is UL 467 listed for direct burial. The package contains five clamps for commercial grounding installations.

UL 467 direct burial rating

The UL 467 listing covers the mechanical connection for direct burial in soil. The clamp is rated only for copper conductors and a single wire per terminal. It does not suit aluminium conductors, multiple wires per terminal, or above-grade connections that fall outside the direct burial scope.

10 to 4 AWG conductor range

The minimum wire size is 10 AWG and the maximum is 4 AWG stranded copper. Conductors smaller than 10 AWG or larger than 4 AWG will not secure properly in the clamp. Buyers who need to terminate wires outside this range must select a different connector.

Highlights

  • Fits 10 to 4 AWG copper grounding wire
  • UL 467 listed for direct burial applications
  • Connects grounding wire to 3/4 in ground rod
  • Copper construction resists corrosion in soil
  • Pack of five clamps for multiple installations

Specifications

BrandBurndy
TypeCommercial

Questions about this item

Should I choose the 10 AWG or the 4 AWG version for my ground rod?

This clamp accepts a single copper grounding wire from 10 AWG up to 4 AWG STR, so you select the wire gauge you are running rather than choosing between clamp versions.

What does the 1.71 in measurement mean when the clamp is installed on a rod?

The 1.71 in figure is the supplier's reference for the overall clamp length; the working connection is made on a 3/4 in ground rod.

Does the UL 467 listing limit the wire size or rod diameter I can use?

The UL 467 listing covers direct-burial use with copper conductors from 10 to 4 AWG STR on a 3/4 in rod; it does not impose additional restrictions beyond those ratings.
