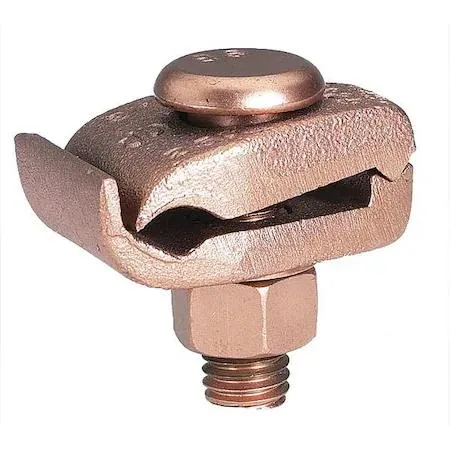

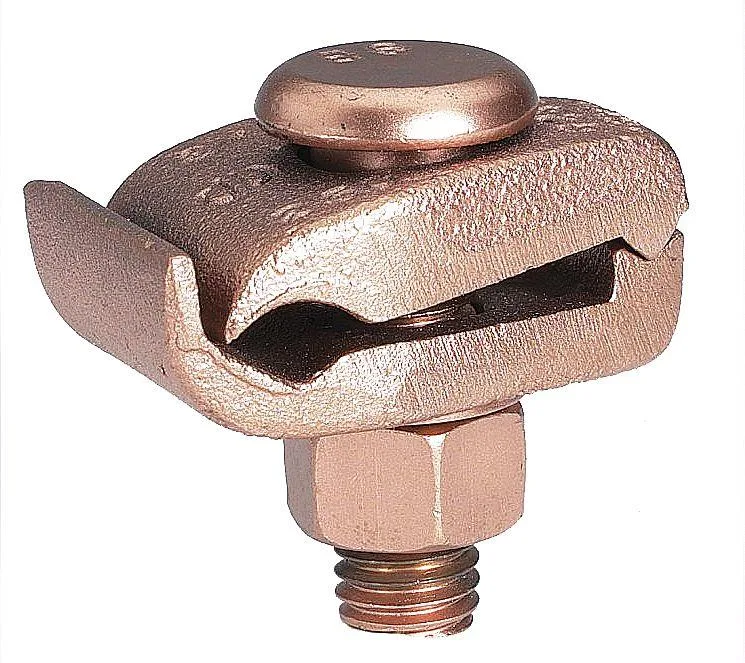

Burndy copper grounding connector, flat bar style, 1.49In length

Burndy

Burndy Ground Connector 8AWG 1.49In UL467

SKU CH-2KY9-NTTZN

Connects 8 to 4 AWG copper grounding wires to a 1/4 inch flat bar for direct burial, UL467 listed

  • TypeCommercial
  • UL 467 listed for direct-burial safety
  • Copper construction handles 8–4 AWG solid or stranded conductors
  • Mechanical clamp separates two cables from a 1/4 in flat bar
  • Compact 1.49 in length fits tight enclosures
  • Commercial-grade grounding connector built for copper wire only

Ground Connector for 8–4 AWG Copper

The Burndy connector joins a single copper grounding conductor sized from 8 AWG solid to 4 AWG stranded to a quarter-inch flat bar. It is rated for direct burial and carries UL 467 listing for grounding applications. The mechanical clamp separates two cables from the bar for a secure, code-compliant bond.

Capacity and Headroom

The device accommodates wire sizes between 8 AWG solid and 4 AWG stranded copper, covering a common range for residential and light commercial grounding. It connects one conductor to the bar, so installations requiring multiple parallel grounding runs will need additional connectors. The quarter-inch bar thickness sets a fixed mounting constraint.

Mechanical Build and Daily Use

A copper body resists corrosion in buried or exposed environments, and the direct-burial rating means no extra protection is required underground. The mechanical screw clamp allows installation with basic hand tools and permits re-termination if a conductor is damaged. The 1.49-inch overall length fits tight enclosures while keeping the bar connection accessible for inspection.

Highlights

  • UL 467 listed for direct-burial safety
  • Copper construction handles 8–4 AWG solid or stranded conductors
  • Mechanical clamp separates two cables from a 1/4 in flat bar
  • Compact 1.49 in length fits tight enclosures
  • Commercial-grade grounding connector built for copper wire only

Specifications

BrandBurndy
TypeCommercial

Questions about this item

Will this ground connector fit the 1/4 in flat bar I already have installed?

Yes, the connector is designed for grounding wires connected to a 1/4 in flat bar, so it will fit your existing bar.

How can I verify the Burndy connector meets code after installation?

The connector carries a UL467 listing for direct burial; the marking on the body confirms it meets the standard once properly torqued.

Does the package include the 8 to 4 AWG copper wire or just the mechanical connector?

Only the grounding connector is supplied; you must purchase the 8 to 4 AWG solid or stranded copper conductor separately.
