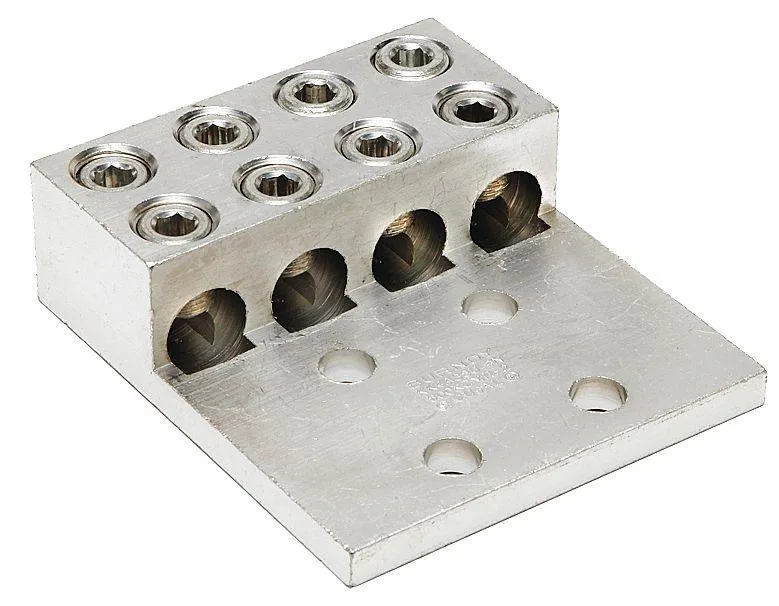

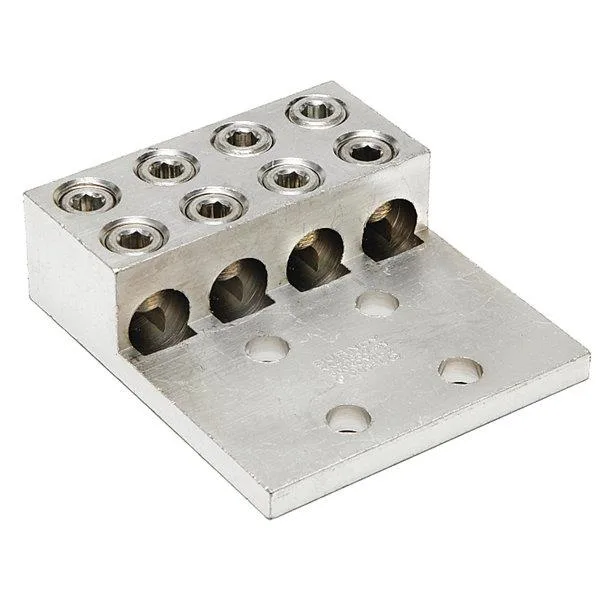

Aluminium four-conductor lug, 5.63 in long, hex socket head

Burndy

Burndy Four Conductor Lug 2AWG 5.63In

SKU CH-807H-QQKZM

A four-conductor mechanical lug for aluminium or copper wire up to 600 kcmil, rated 600 V and 194 °F with 5.63 in length and 1.75 in hole spacing

  • TypeCommercial
  • Accommodates four conductors with eight termination points
  • Fits 2 AWG to 600 kcmil stranded copper and aluminum wire
  • Handles up to 600 V at 194 °F maximum operating temperature
  • Four-hole mounting pattern on 1.75 in spacing for secure installation
  • 63 in overall length with 3.34 in tongue for compact panel fit

Burndy Four-Conductor Lug 2AWG

This Burndy four-conductor lug accepts stranded copper wire from 2 AWG up to 600 kcmil and provides four holes spaced 1.75 inches apart for secure mounting. The aluminum body carries a 600-volt rating and withstands temperatures up to 194 degrees Fahrenheit.

Suits high-current multi-wire runs

Installers who need a single block for four conductors with 1/2-inch stud clearance will find the hex-socket head and 5.63-inch overall length practical. Builders requiring a smaller stud size or fewer termination points should select a different connector.

Four holes at 1.75-inch spacing

The 1.75-inch hole spacing and 0.56-inch hole diameter determine whether this lug matches the busbar or equipment drilling pattern. Verify those dimensions before ordering.

Highlights

  • Accommodates four conductors with eight termination points
  • Fits 2 AWG to 600 kcmil stranded copper and aluminum wire
  • Handles up to 600 V at 194 °F maximum operating temperature
  • Four-hole mounting pattern on 1.75 in spacing for secure installation
  • 63 in overall length with 3.34 in tongue for compact panel fit

Specifications

BrandBurndy
TypeCommercial

Questions about this item

What conductor sizes and stud size must my cables and bolts match for the 2 AWG lug?

The lug accepts stranded copper from 2 AWG up to 600 kcmil and fits a 1/2 in stud with .56 in hole diameter.

Will the four-hole pattern line up with my existing bus bar drilling?

Hole spacing is 1.75 in on a tongue 5 in wide and .44 in thick; measure your bar to match.

How do I confirm the mechanical connector is seated correctly after torquing?

Verify the hex socket heads are fully engaged, tongues sit flat, and the assembly sees no more than 194 °F at 600 V.
