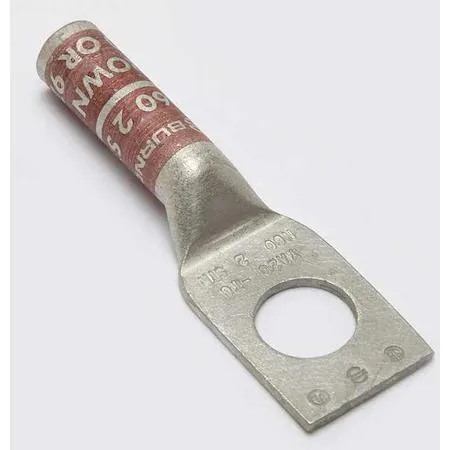

Brown copper compression lug with single hole, straight tongue, 2.7 inches long

Burndy

Burndy Copper Compression Lug 2 AWG 1 Hole 2.700 in

SKU CH-6ZS1-ZMKNT

Copper compression lug for 2 AWG wire, 2.700 in long with 0.81 in tongue width, single 1/2 in hole, UL 486A-486B and CSA certified, rated 35 kV and 194°F

  • Length2.700
  • MaterialCopper
  • TypeCommercial
  • Copper construction provides high conductivity for reliable connections
  • Single-hole design fits 1/2 in studs for straightforward mounting
  • 700 in barrel length ensures secure crimp on 2 AWG conductors
  • Rated to 35 kV and 194 °F for demanding electrical environments
  • UL 486A-486B and CSA certified for code-compliant installations

Copper Compression Lug 2 AWG

This Burndy copper compression lug is built for 2 AWG stranded copper conductors. It carries a single 1/2 in stud hole and a straight tongue measuring 0.81 in wide. The barrel is colour-coded brown with die code 10 and the lug is UL 486A-486B listed and CSA certified for up to 35 kV.

Suited for single-hole copper terminations

Installers who need a straight, one-hole crimp lug rated to 194 Degrees F will find this part matches the spec. It is not for applications that require an inspection window, multi-hole mounting or a different conductor size or material.

Fits standard crimp tooling and panel layouts

The 2.700 in length and straight tongue allow direct mounting to busbars or terminal blocks without offset. Crimping with the matching die code 10 tool completes the termination, leaving no extra hardware or insulation steps required.

Highlights

  • Copper construction provides high conductivity for reliable connections
  • Single-hole design fits 1/2 in studs for straightforward mounting
  • 700 in barrel length ensures secure crimp on 2 AWG conductors
  • Rated to 35 kV and 194 °F for demanding electrical environments
  • UL 486A-486B and CSA certified for code-compliant installations

Specifications

BrandBurndy
Length2.700
MaterialCopper
TypeCommercial

Questions about this item

What crimp die code is required for the 2.700 in copper lug?

The lug uses die code 10 for proper compression termination.

Will the 0.81 in tongue width fit a 1/2 in stud on existing bus bars?

Yes, the single hole is sized for a 1/2 in stud and the 0.81 in tongue matches standard spacing.

How can I confirm the crimp meets the 35 kV rating after installation?

A correct die 10 crimp on 2 AWG copper conductor satisfies the UL 486A-486B listing for 35 kV service.
