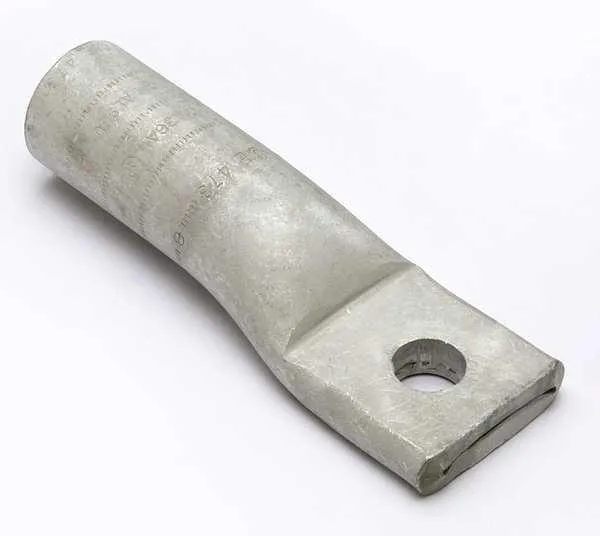

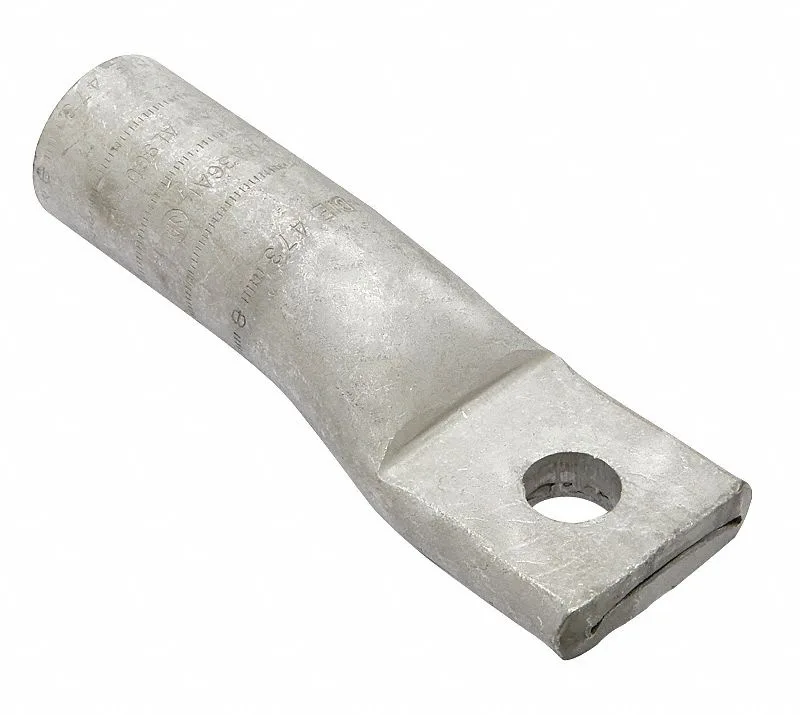

Aluminium compression terminal with single hole, olive colour code, 3.500 length

Burndy

Burndy AL Compression Terminal 1 Hole 2/0 AWG

SKU CH-8HS2-NVQ7Q

Aluminium compression lug for 2/0 AWG conductors, straight tongue, 1.03 in wide, CSA and UL 486 certified

  • Length3.500
  • TypeCommercial
  • UL 486A-486B listed for code-compliant installations
  • CSA certified for verified safety performance
  • 35 kV rating supports high-voltage applications
  • 194 °F maximum operating temperature for demanding environments
  • 03 in tongue width fits 1/2 in studs

Compression Terminal for Aluminum and Copper

This Burndy terminal accepts 2/0 AWG stranded copper or aluminum conductors in a straight barrel. It is rated for 35 kV maximum voltage and a 194 degree F operating temperature. The olive color code and die code 297 identify the correct crimp tooling. UL and CSA certifications confirm compliance with UL 486A-486B standards.

Single Hole Mounting with 1/2 Inch Stud

The tongue width measures 1.03 inches and features a single hole for a 1/2 inch stud. No inspection window is present on the barrel. This configuration suits panel or busbar connections where a single bolt fastening is required. The straight tongue angle keeps the cable run in line with the mounting surface.

Aluminum Body with Standard Barrel Length

The terminal body is aluminum with a standard barrel length of 3.500 inches. Crimp termination provides a secure mechanical and electrical joint without solder. Commercial grade construction fits general industrial and electrical panel work. Installers must match the die code to their compression tool for a certified connection.

Highlights

  • UL 486A-486B listed for code-compliant installations
  • CSA certified for verified safety performance
  • 35 kV rating supports high-voltage applications
  • 194 °F maximum operating temperature for demanding environments
  • 03 in tongue width fits 1/2 in studs

Specifications

BrandBurndy
Length3.500
TypeCommercial

Questions about this item

What maintenance or replacement will the aluminum compression terminal need later?

The terminal is a single-use crimp component; once installed it requires no scheduled maintenance unless the connection is disturbed or the conductor is replaced.

What limit shows up first under sustained use, the 35 kV rating or the 194 °F temperature ceiling?

The 194 °F maximum operating temperature is reached before the 35 kV voltage limit under continuous heavy load.

How much heat or power loss occurs when the terminal runs all day at rated current?

The aluminum body and 1.03 in tongue width keep resistance low, so heat rise stays within the 194 °F limit during continuous operation.
