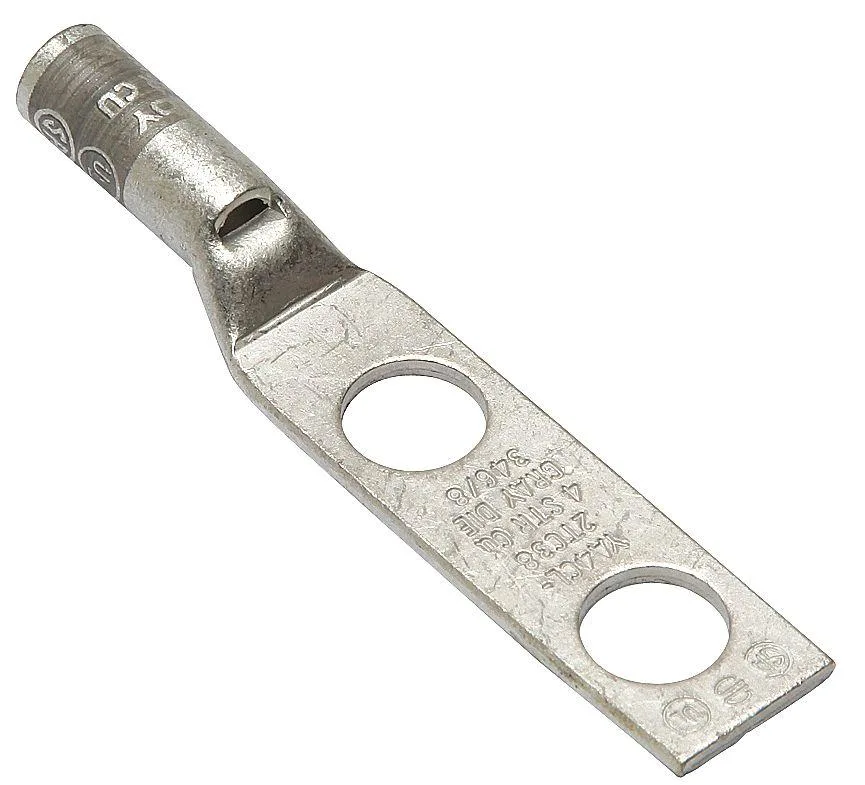

Copper two-hole lug, straight tongue, gray barrel, 3.000 in long

Burndy

Burndy 4 AWG Two-Hole Copper Lug 3.000 in

SKU CH-MA20-8AR98

Two-hole copper compression lug for 4 AWG wire, 3.000 in long, .58 in tongue, 1 in hole spacing, rated 35 kV AC and 194 °F, UL 486 listed

  • Length3.000
  • TypeCommercial
  • Copper construction handles 35 kV AC
  • Gray color code 346 matches die selection
  • Two-hole design with 1 in centre spacing
  • UL 486A-486B listed for code compliance
  • Crimp termination rated to 194 °F

Copper Lug for 4 AWG Wire

This Burndy compression connector is built for stranded copper conductors at 4 AWG. It accepts a 3/8 inch stud with a 1 inch hole centre-to-centre spacing. The grey colour code and die code 346 identify the correct crimping tool. It is suited for electrical contractors and industrial maintenance crews making permanent power connections.

Thermals and Electrical Rating

The lug carries a maximum operating temperature of 194 degrees Fahrenheit and is rated for 35 kV AC. Its solid copper body dissipates heat through the crimped joint without added resistance. No moving parts or forced cooling are involved, so silent operation is inherent.

CSA and UL Certified Crimp Lug

This component meets CSA certification and UL 486A-486B standards for wire connectors. The barrel includes an inspection hole to verify full conductor insertion before crimping. It is not designed for aluminium conductors or wire sizes outside 4 AWG.

Highlights

  • Copper construction handles 35 kV AC
  • Gray color code 346 matches die selection
  • Two-hole design with 1 in centre spacing
  • UL 486A-486B listed for code compliance
  • Crimp termination rated to 194 °F

Specifications

BrandBurndy
Length3.000
TypeCommercial

Questions about this item

How do I crimp this 4 AWG two-hole lug and which die should I use?

Use a compression tool with die code 346; insert the stripped copper conductor fully until visible in the inspection hole, then crimp straight on the barrel.

Will the inspection hole or copper barrel need periodic checking or replacement?

The copper barrel is maintenance-free; only verify the inspection hole still shows conductor after any vibration or thermal cycling.

At what temperature does the lug reach its continuous rating limit?

The maximum operating temperature is 194 degrees F; sustained current above that level degrades the connection first.
