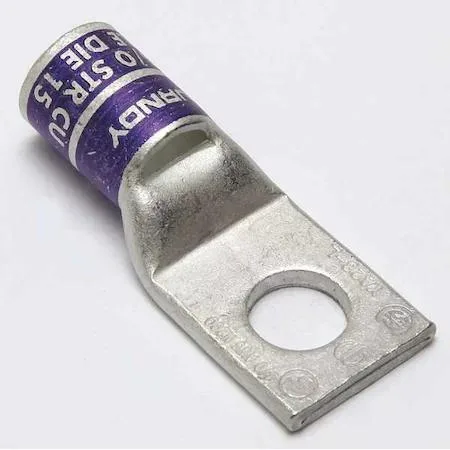

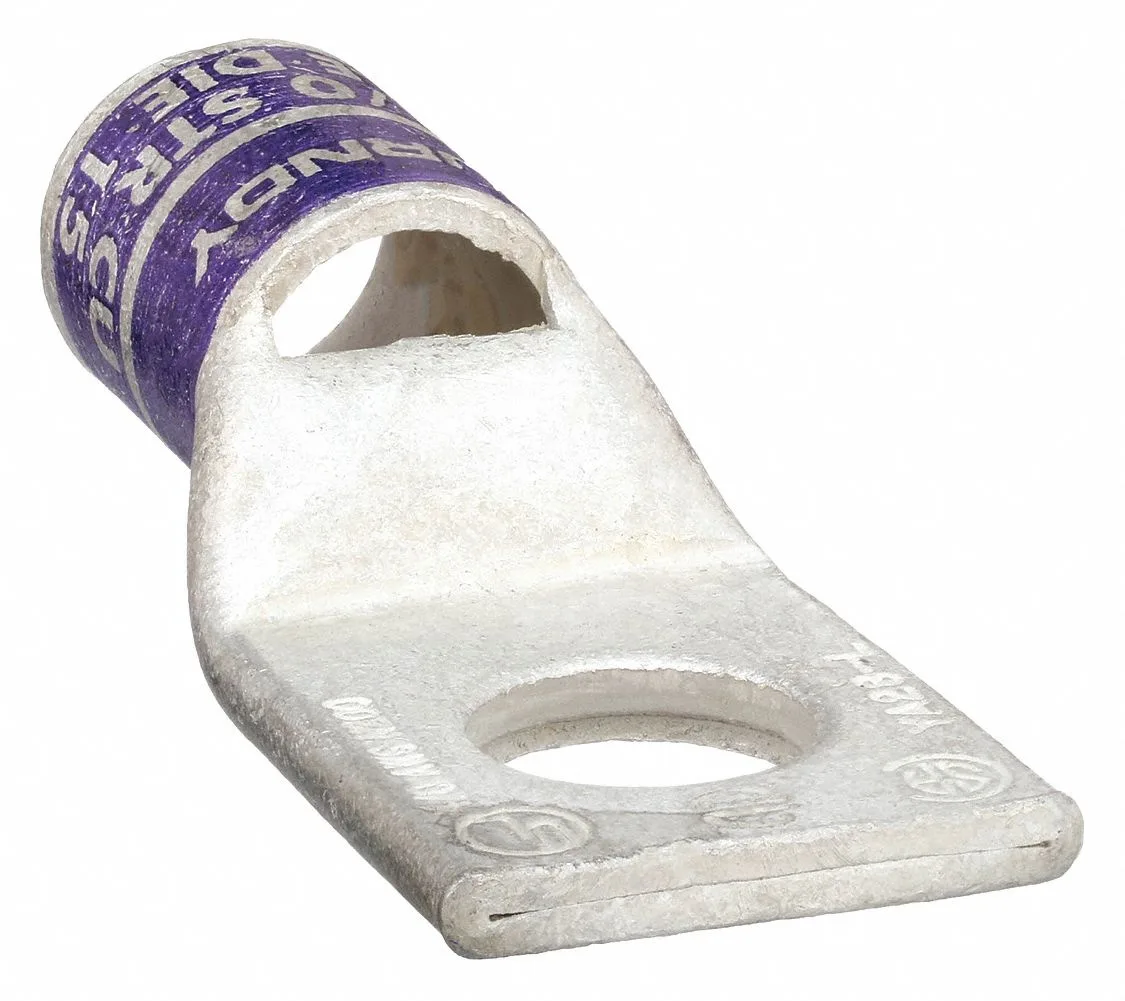

Copper compression lug, purple die code 15, straight tongue, inspection hole, 3.000 in length

Burndy

Burndy 4/0 AWG Copper Compression Lug 3/8 in Stud Purple Die 15

SKU CH-C1R6-VS5CW

Copper compression lug for 4/0 AWG wire with 3/8 inch stud, purple die code 15, CSA certified and UL listed

  • Length3.000
  • MaterialCopper
  • TypeCommercial
  • Purple die code 15 matches tooling for fast crimps
  • Standard barrel fits 4/0 AWG copper wire precisely
  • Straight 0.76 in tongue aligns with 3/8 in studs
  • Inspection hole confirms full conductor insertion visually
  • UL 486A-486B and CSA certified for 35 kV service

Burndy 4/0 AWG Copper Compression Lug

This Burndy compression lug connects 4/0 AWG stranded copper wire to a 3/8 inch stud. The copper barrel carries a purple colour code and uses die code 15 for crimping. It is rated for up to 35 kV and a maximum operating temperature of 194 degrees F. The part is UL Listed and CSA Certified.

Installers terminating a single 4/0 AWG copper

Electricians making a straight, one-hole connection on 4/0 AWG stranded copper will find the standard barrel and inspection hole suit the task. The lug is not designed for other wire sizes, aluminium conductors, multi-hole patterns or angled tongue orientations. Buyers needing those configurations should select a different lug.

Purple die code 15 for 4/0 AWG copper

The purple colour code and die code 15 identify the crimp tool setting required for this specific conductor size. Using the correct die ensures a secure, standards-compliant termination. Verify that your crimping tool accepts die code 15 before purchase.

Highlights

  • Purple die code 15 matches tooling for fast crimps
  • Standard barrel fits 4/0 AWG copper wire precisely
  • Straight 0.76 in tongue aligns with 3/8 in studs
  • Inspection hole confirms full conductor insertion visually
  • UL 486A-486B and CSA certified for 35 kV service

Specifications

BrandBurndy
Length3.000
MaterialCopper
TypeCommercial

Questions about this item

Will the 194 °F temperature rating hold up under continuous heavy current?

The lug is rated for a maximum operating temperature of 194 °F, so sustained loads that keep the connection at or below that level are within specification.

Does the purple die-code 15 lug run hot or draw extra power during all-day use?

As a passive copper connector it generates no heat of its own and draws no power; any temperature rise comes solely from the current passing through the crimped joint.

What crimp tool and die are needed to install this 4/0 AWG lug?

A compression tool that accepts Burndy die code 15 (purple) is required to crimp the standard-barrel lug onto 4/0 AWG stranded copper wire.
