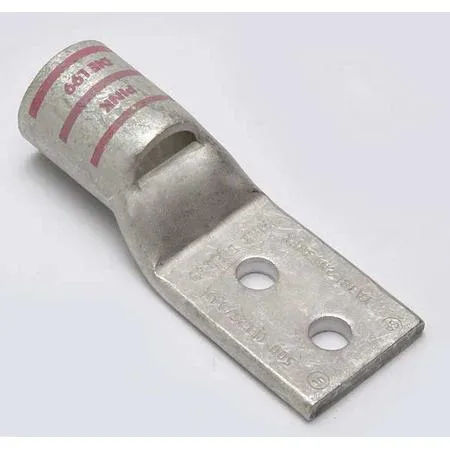

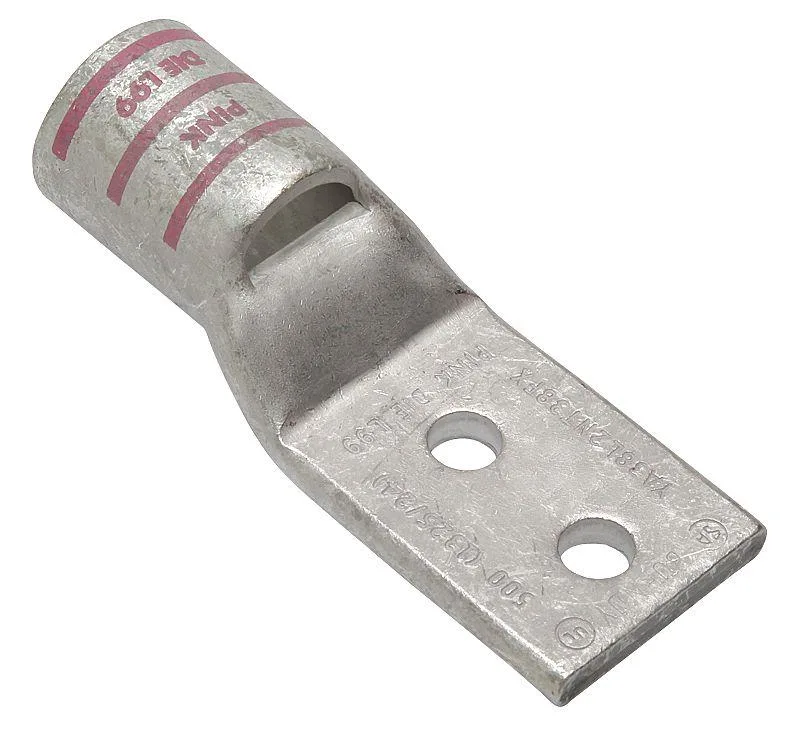

Copper compression lug, pink colour code, two holes, straight tongue

Burndy

Burndy 2-Hole Copper Compression Lug 500-550 kcmil 3/8 in Stud

SKU CH-JZNP-BJXY4

Two-hole copper compression lug for 500–550 kcmil stranded wire with 3/8 in stud holes on 1 in centres, pink colour code L99, UL 486A-486B and CSA certified, rated 35 kV and 194 °F

  • TypeCommercial
  • CSA and UL 486A-486B certified for code-compliant installations
  • Pink color code L99 die simplifies correct crimp tool selection
  • Inspection hole allows visual verification of full conductor insertion
  • Rated 35 kV and 194 °F for demanding power circuits
  • Two-hole NEMA pattern on 1 in centres ensures secure mounting

Copper compression lug for 500-550 kcmil wire

This Burndy lug terminates stranded copper conductors in the 500 to 550 kcmil range. It is built for commercial electrical installations that require a reliable crimp connection. The straight tongue design fits a 3/8 inch stud with two mounting holes spaced one inch apart.

Two-hole pattern on 1 inch centers

The lug features two holes with a centre-to-centre distance of 1 in. This spacing determines whether the lug matches the busbar or equipment pad drilling. Verify the mounting pattern before ordering because a different hole layout will not align.

Rated for 35 kV and 194 °F operation

The copper body carries a maximum voltage rating of 35 kV and withstands continuous temperatures up to 194 Degrees F. An inspection hole allows visual confirmation of full conductor insertion. It is not suited for conductors smaller than 500 kcmil or larger than 550 kcmil.

Highlights

  • CSA and UL 486A-486B certified for code-compliant installations
  • Pink color code L99 die simplifies correct crimp tool selection
  • Inspection hole allows visual verification of full conductor insertion
  • Rated 35 kV and 194 °F for demanding power circuits
  • Two-hole NEMA pattern on 1 in centres ensures secure mounting

Specifications

BrandBurndy
TypeCommercial

Questions about this item

What does the 500-550 kcmil range mean when I install this lug?

It accepts stranded copper conductors from 500 to 550 kcmil, so the barrel is sized for that cross-section and the crimp die L99 matches it.

How does the 35 kV rating and UL 486A-486B listing affect what I can use it for?

The lug is listed for up to 35 kV under UL 486A-486B, which covers wire connectors and soldering lugs for copper conductors in that voltage class.

What mounting pattern do the two holes follow?

Two holes on 1 in centres with 3/8 in stud clearance, straight tongue, 1.63 in wide, and an inspection hole for visual verification.
