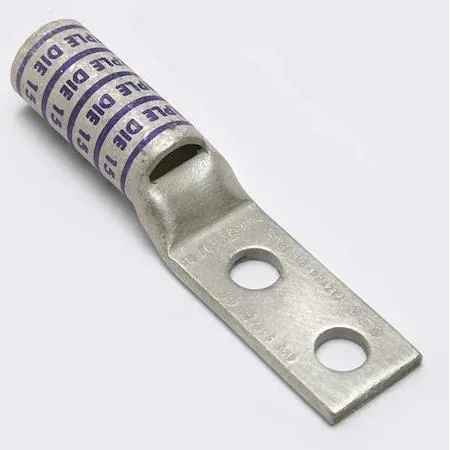

Copper compression lug with two holes and purple barrel finish

Burndy

Burndy 2-Hole Copper Compression Lug 4/0 AWG 35 kV

SKU CH-KRDY-2R0A4

Two-hole copper compression lug for 4/0 AWG stranded wire rated to 35 kV with 1 in hole spacing, purple die code 15, and 194 °F maximum temperature

  • TypeCommercial
  • Rated for 35 kV high-voltage applications
  • UL 486A-486B and CSA certified for code compliance
  • Two-hole 1 in spacing ensures secure mounting
  • Purple die code 15 enables correct crimp identification
  • Copper construction rated to 194 °F operating temperature

35 kV Copper Compression Lug

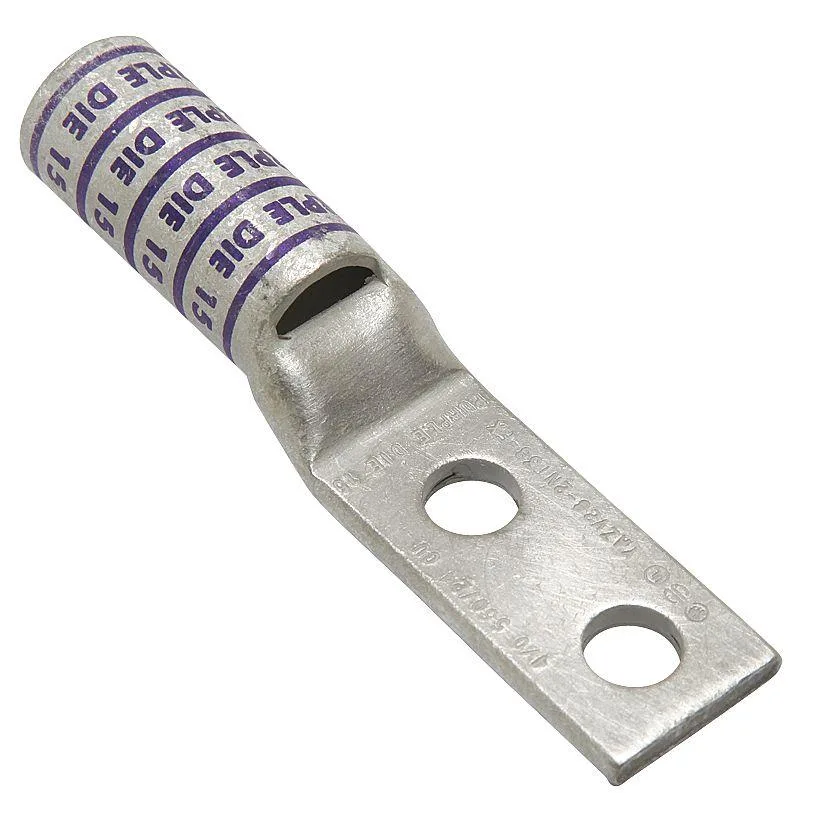

The Burndy lug is a two-hole copper compression connector rated for 35 kV and 4/0 AWG stranded copper conductors. It meets UL 486A-486B and CSA standards with a purple color code and die code 15 for correct crimp tooling.

Straight Tongue Crimp Installation

The straight tongue with 0.94 in width and 1 in hole spacing fits 3/8 in studs and includes an inspection hole to verify wire insertion. A long-barrel design requires a compatible crimp die; using an incorrect die or skipping the inspection step are the common causes of a failed termination.

High-Voltage Copper Termination Jobs

Suited for electricians and maintenance crews making permanent 35 kV copper splices or equipment leads where UL-listed components are specified. Not intended for aluminum conductors, smaller wire gauges, or applications that demand a soldered or mechanical-lug connection.

Highlights

  • Rated for 35 kV high-voltage applications
  • UL 486A-486B and CSA certified for code compliance
  • Two-hole 1 in spacing ensures secure mounting
  • Purple die code 15 enables correct crimp identification
  • Copper construction rated to 194 °F operating temperature

Specifications

BrandBurndy
TypeCommercial

Questions about this item

How can I verify the 4/0 AWG copper compression lug is correctly crimped after installation?

The lug includes an inspection hole that allows visual confirmation the conductor is fully seated before and after crimping with die code 15 tooling.

What components are included with the Burndy 2-hole lug and what must be sourced separately?

The package contains the copper lug with purple colour code, 0.94 in tongue width, 1 in hole centres and two 3/8 in mounting holes; crimping tool and 4/0 AWG stranded copper conductor are not supplied.

Which version of this lug should I select for a 35 kV copper circuit requiring a straight, long-barrel connection?

Choose this model when you need a straight-tongue, long-barrel lug rated 35 kV, CSA certified and UL 486A-486B listed for 4/0 AWG stranded copper with 1 in hole spacing.
