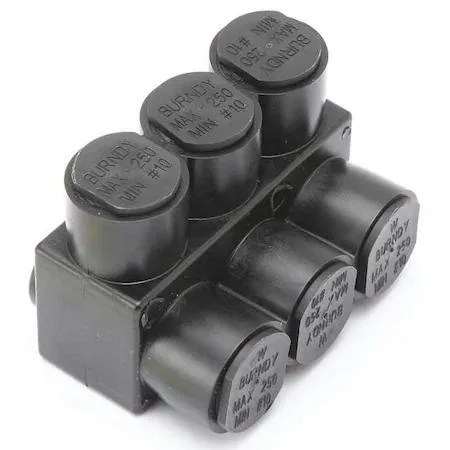

Black aluminium three-port multitap connector with hex heads

Burndy

Burndy 1PL2503 Multitap Connector Aluminium Black Hex 3 Port

SKU CH-RX1S-1XJW7

Insulated aluminium multitap connector with three hex ports for 10 AWG to 250 kcmil copper or aluminium conductors, rated 600 V and 194 °F

  • TypeElectrical Connectors
  • Insulated Plastisol body protects against accidental contact
  • Three ports accept conductors from 10 AWG up to 250 kcmil
  • Hex head design allows secure installation with a 5/16 in driver
  • UL Listed and RoHS compliant for code-compliant projects
  • Rated 600 V and 194 °F for demanding electrical environments

Three-Port Aluminium Multitap

The Burndy 1PL2503 is an insulated multitap connector built for aluminium and copper conductors. It provides three ports for joining stranded wire in electrical and industrial installations. The body is black plastisol-insulated aluminium with an unplated finish. This connector suits electricians and maintenance crews who need a compact, code-compliant tap for service or feeder cables.

600 V and 194 °F Limits

The connector is UL Listed and rated for a maximum of 600 volts and a maximum operating temperature of 194 degrees Fahrenheit. These ratings define the practical envelope for any circuit using this tap. Exceeding either value voids the listing and risks insulation breakdown or conductor damage. Installers must verify that system voltage and ambient-plus-rise temperatures stay within these boundaries before specifying the part.

10 AWG to 250 kcmil Range

Each of the three ports accepts stranded copper from 10 AWG up to 250 kcmil, and the same aluminium range applies. The hex drive uses a 5/16 inch key for secure termination across that span. The connector comfortably handles typical residential and light-commercial feeder sizes, but it cannot accommodate conductors larger than 250 kcmil or smaller than 10 AWG. Buyers needing more than three ports or a wider wire-range must select a different multitap body.

Highlights

  • Insulated Plastisol body protects against accidental contact
  • Three ports accept conductors from 10 AWG up to 250 kcmil
  • Hex head design allows secure installation with a 5/16 in driver
  • UL Listed and RoHS compliant for code-compliant projects
  • Rated 600 V and 194 °F for demanding electrical environments

Specifications

BrandBURNDY
TypeElectrical Connectors

Questions about this item

Which wire-size range should I pick for the 3-port multitap?

The connector accepts stranded copper from 10 AWG up to 250 kcmil, so choose a wire within that range for each of the three ports.

What does the 600 V rating mean once the connector is installed?

It certifies the multitap for circuits up to 600 volts, so the assembly remains listed for any system operating at or below that voltage.

How does the 5/16 in hex drive affect the termination?

A 5/16 inch hex key or socket is required to tighten each port’s set screw, giving a secure mechanical connection for aluminum or copper conductors.
