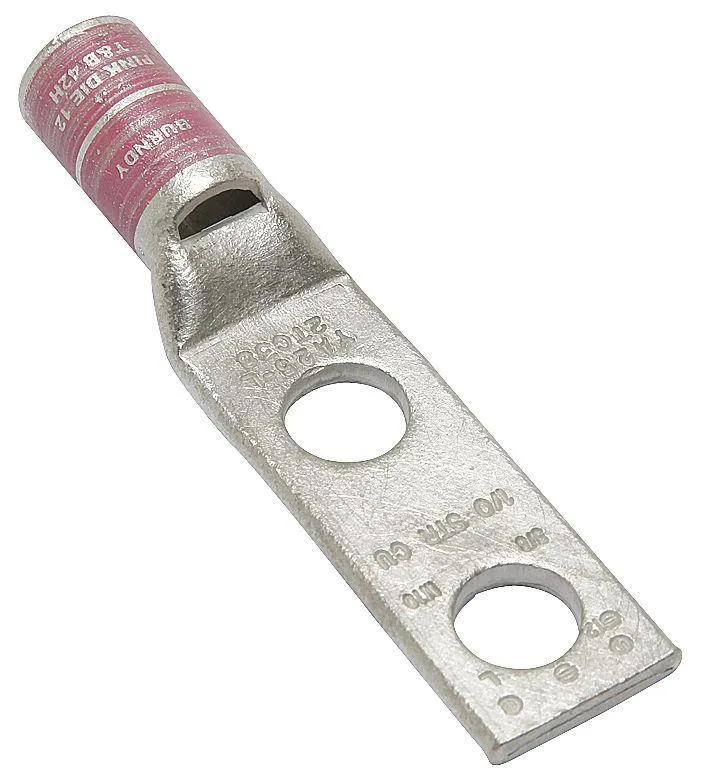

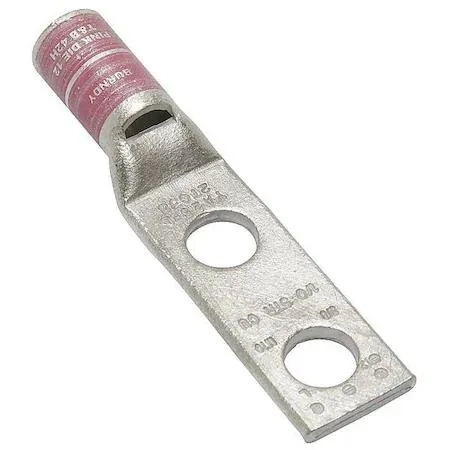

Copper compression lug with two mounting holes, pink colour code, straight tongue, inspection hole visible

Burndy

Burndy 1 AWG Copper Compression Lug 2-Hole

SKU CH-CPBA-T9WTH

Two-hole copper compression lug for 1 AWG stranded wire, 0.75 in tongue width, 1 in hole spacing, crimp termination, 35 kV rating, UL and CSA listed

  • TypeCommercial
  • Two-hole design with 1 in spacing secures heavy cable runs
  • Pink color code and die code 12 match standard crimp tools
  • CSA certified and UL 486A-486B listed for code compliance
  • Copper barrel rated 35 kV AC handles high-voltage circuits
  • Inspection hole confirms full conductor insertion before energising

Copper compression lug for 1/0 AWG conductor

The Burndy copper compression lug accepts stranded copper wire sized at 1/0 AWG. It provides a two-hole termination for secure mounting in commercial electrical installations. The straight tongue and standard barrel suit typical panel and busbar connections. This lug is UL Listed and CSA Certified to UL 486A-486B.

Verify conductor size

Confirm the stranded copper conductor is exactly 1/0 AWG, as the lug accommodates only that minimum and maximum size. The mounting holes are spaced 1 in center-to-center and fit a 3/8 in stud. Ensure the crimp tool uses die code 12 or 348 and that the pink colour code matches your identification system. An inspection hole allows visual verification of full conductor insertion.

Rated for continuous operation up to 194 °F

The copper body maintains conductivity at the maximum operating temperature of 194 Degrees F under sustained load. Voltage rating reaches 35 kV AC for high-voltage commercial circuits. Crimp termination creates a permanent, low-resistance joint that resists loosening from vibration or thermal cycling. The straight tongue and .75 in width distribute clamping force evenly across both mounting holes.

Highlights

  • Two-hole design with 1 in spacing secures heavy cable runs
  • Pink color code and die code 12 match standard crimp tools
  • CSA certified and UL 486A-486B listed for code compliance
  • Copper barrel rated 35 kV AC handles high-voltage circuits
  • Inspection hole confirms full conductor insertion before energising

Specifications

BrandBurndy
TypeCommercial

Questions about this item

Does the lug come with crimp dies or must they be purchased separately?

The lug itself is supplied; crimp dies matching die code 12 or 348 are sold separately.

Should I choose the 1 AWG or the 1/0 AWG version for my cable?

This lug is rated for 1/0 AWG stranded copper only; select it when your conductor is 1/0 AWG.

What does the 35 kV AC rating mean when the lug is installed in a panel?

It indicates the maximum voltage the insulated connection can withstand under AC conditions up to 35 kV.
