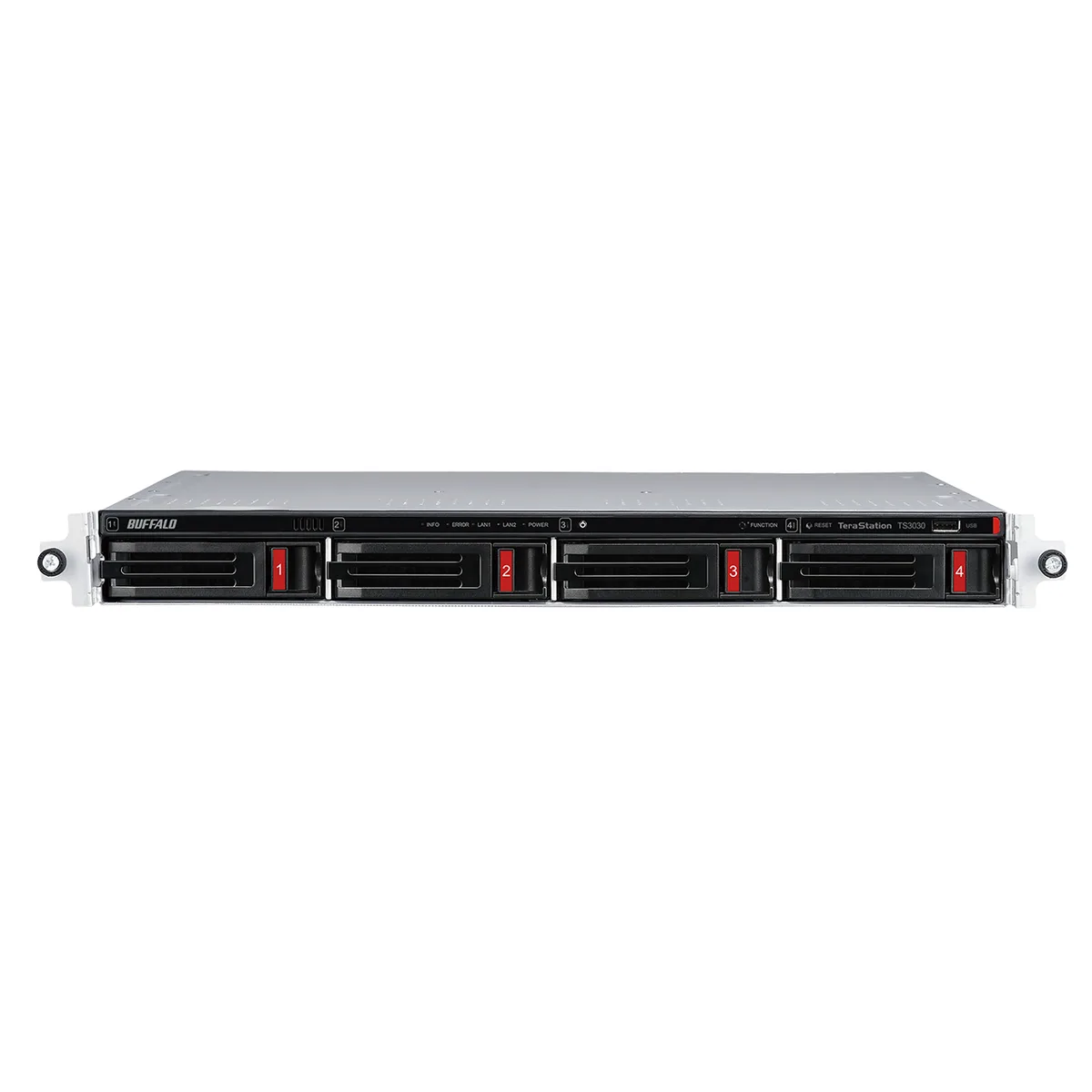

Silver 1U rackmount chassis with four front drive bays and status LEDs

Buffalo Technology

Buffalo Technology TS3430RN0804 4-Bay Rackmount NAS 8TB AL-524 2GB DDR4

SKU CH-BN00-S6D8B MPN TS3430RN0804

A four-bay rackmount NAS with 8 TB of included storage, a quad-core AL-524 processor, 2 GB DDR4 memory, 2.5 GbE and 1 GbE ports, plus USB 3.0 and 2.0 connections

  • TypeRackmount NAS
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • Ports1 x 1GbE
  • Port RJ-451 x 2.5GbE + 1 x 1GbE
  • Port USB2 x USB3.0 + 1 x USB2.0
  • HDD Interface4 x SATA (4 x Bay)

Included HDD Capacity 8TB (4 x 2TB)

Option Fully Populated

  • Quad-core AL-524 processor handles demanding workloads
  • 8TB pre-installed across four 2TB drives ready to use
  • Flexible RAID 0, 1, 5, 6, 10 and JBOD protects data
  • 5GbE plus 1GbE ports accelerate network transfers
  • Two USB 3.0 and one USB 2.0 ports expand connectivity

Target users and purpose

The Buffalo TeraStation 3030 is a 4-bay rackmount NAS shipped with 8 TB of storage across four 2 TB drives. It suits small offices or workgroups that need centralised file sharing, backup targets or lightweight virtualisation on a modest budget.

Sustained-load behaviour

The quad-core AL-524 processor and 2 GB DDR4 memory maintain steady throughput during prolonged RAID 5 or RAID 6 rebuilds and multi-user file transfers. Dual Ethernet ports (2.5 GbE and 1 GbE) prevent a single saturated link from choking long-running backup jobs. Power draw stays at 33.88 W under continuous operation.

Installation and common pitfalls

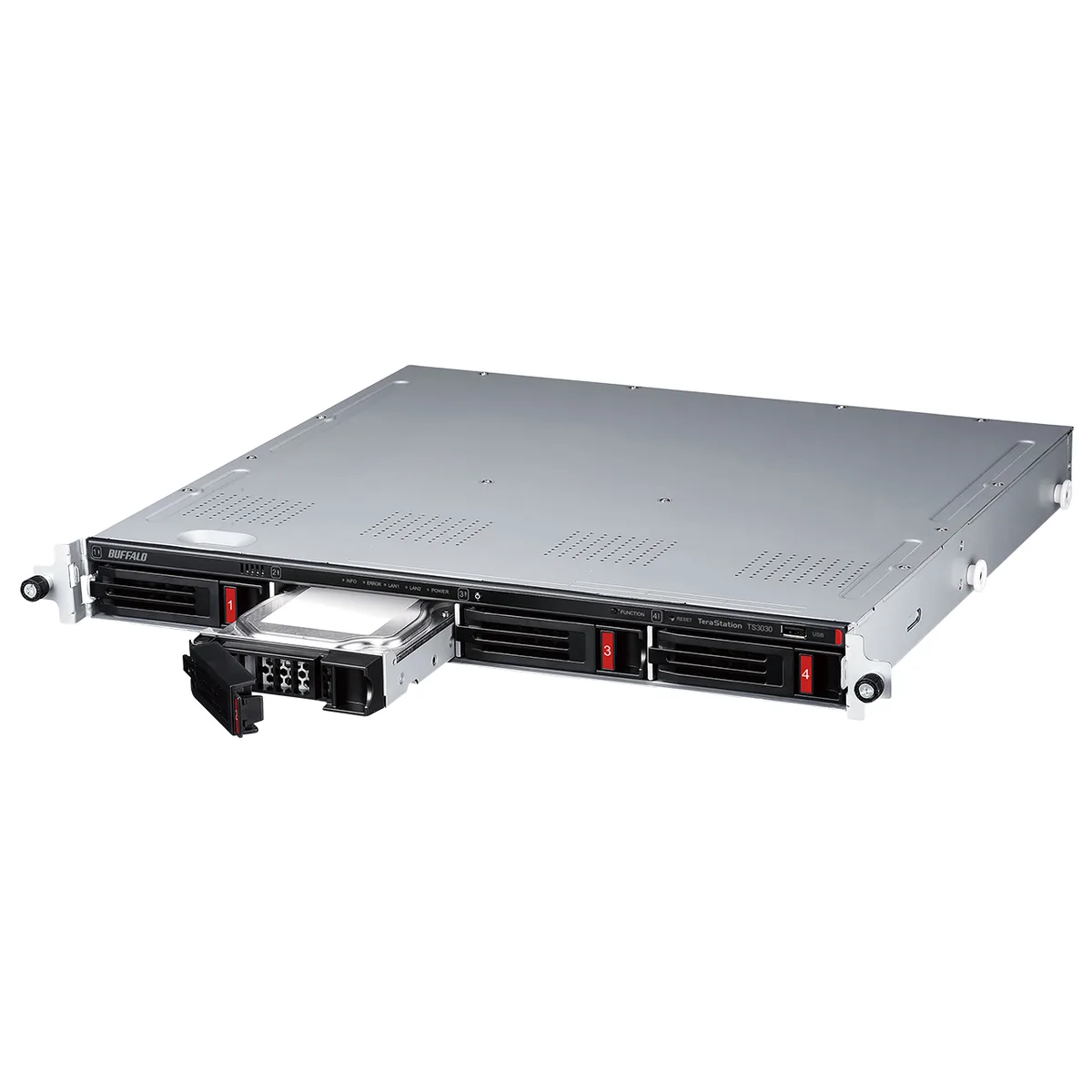

The unit fits a standard 1U rack space and includes a rail kit for quick mounting. Drives slide into hot-swap trays without tools. The 2 GB memory is not user-expandable, so memory-heavy applications such as large-scale deduplication will hit a hard ceiling. Only Buffalo OP-HD2.0N drives are officially validated; third-party disks may work but are unsupported.

Highlights

  • Quad-core AL-524 processor handles demanding workloads
  • 8TB pre-installed across four 2TB drives ready to use
  • Flexible RAID 0, 1, 5, 6, 10 and JBOD protects data
  • 5GbE plus 1GbE ports accelerate network transfers
  • Two USB 3.0 and one USB 2.0 ports expand connectivity

Specifications

BrandBUFFALO
SeriesTeraStation 3030
ModelTS3430RN0804
Part NumberTS3430RN0804
TypeRackmount NAS
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ports1 x 1GbE
Port RJ-451 x 2.5GbE + 1 x 1GbE
Port USB2 x USB3.0 + 1 x USB2.0
HDD Interface4 x SATA (4 x Bay)
Form Factor4-Bay
ProcessorAnnapurna Labs Alpine Processor AL-524 2.0GHz Quad-core
Installed Memory2GB DDR4
Included HDD Capacity8TB (4 x 2TB)
RAIDRAID 0, 1, 5, 6, 10, and JBOD
Drive CompatibilityOP-HD2.0N
Supported ProtocolsTCP/IP
LEDsPower, HDD (Hard Disk Drive), LAN (10/100)
Power100-240 VAC 50/60Hz
Power Consumption33.88W
Temperature0°C - 40 °C
Humidity10-80% Non-condensing
UsageHigh read/write performance with RAID
Dimensions16.9 x 16.9 x 1.7 in
Weight17.0 lbs.
Package ContentsTeraStation, Railkit, Quick Setup Guide, AC Cable, and Warranty Statement
Shipping weight12.38 kg
Package size584 × 536 × 201 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the TS3430RN0804 draw when running continuously?

The unit consumes 33.88W under typical operation, supplied by a 100-240 VAC 50/60Hz internal power supply.

What network infrastructure is needed to use the 2.5GbE port on this NAS?

A switch or router with a 2.5GbE RJ-45 port and Cat5e or better cabling is required to reach that speed; the second RJ-45 port runs at 1GbE.

Will my existing SATA drives work in the four bays alongside the installed 2TB drives?

Yes, the four SATA bays accept additional SATA drives; the specifications list OP-HD2.0N as the compatible drive designation.
