Compact two-bay desktop NAS in matte black finish

Buffalo Technology

Buffalo Technology LS220D1202B 2-Bay NAS 12TB (2x6TB)

SKU CH-4MKT-031C2 MPN LS220D1202B

A two-bay desktop NAS with 12 TB of pre-installed storage, RAID 1 redundancy, and a single Gigabit Ethernet port

  • TypeDesktop NAS
  • StandardsIEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3a
  • Ports1 x 1GbE
  • Port RJ-451 x 10/100/1000M
  • Port USB1 x USB2.0
  • HDD InterfaceSATA 3 Gbps

Capacity 12TB (2 x 6TB)

  • 12TB total capacity with two pre-installed 6TB drives
  • RAID 1 ships pre-configured for automatic data redundancy

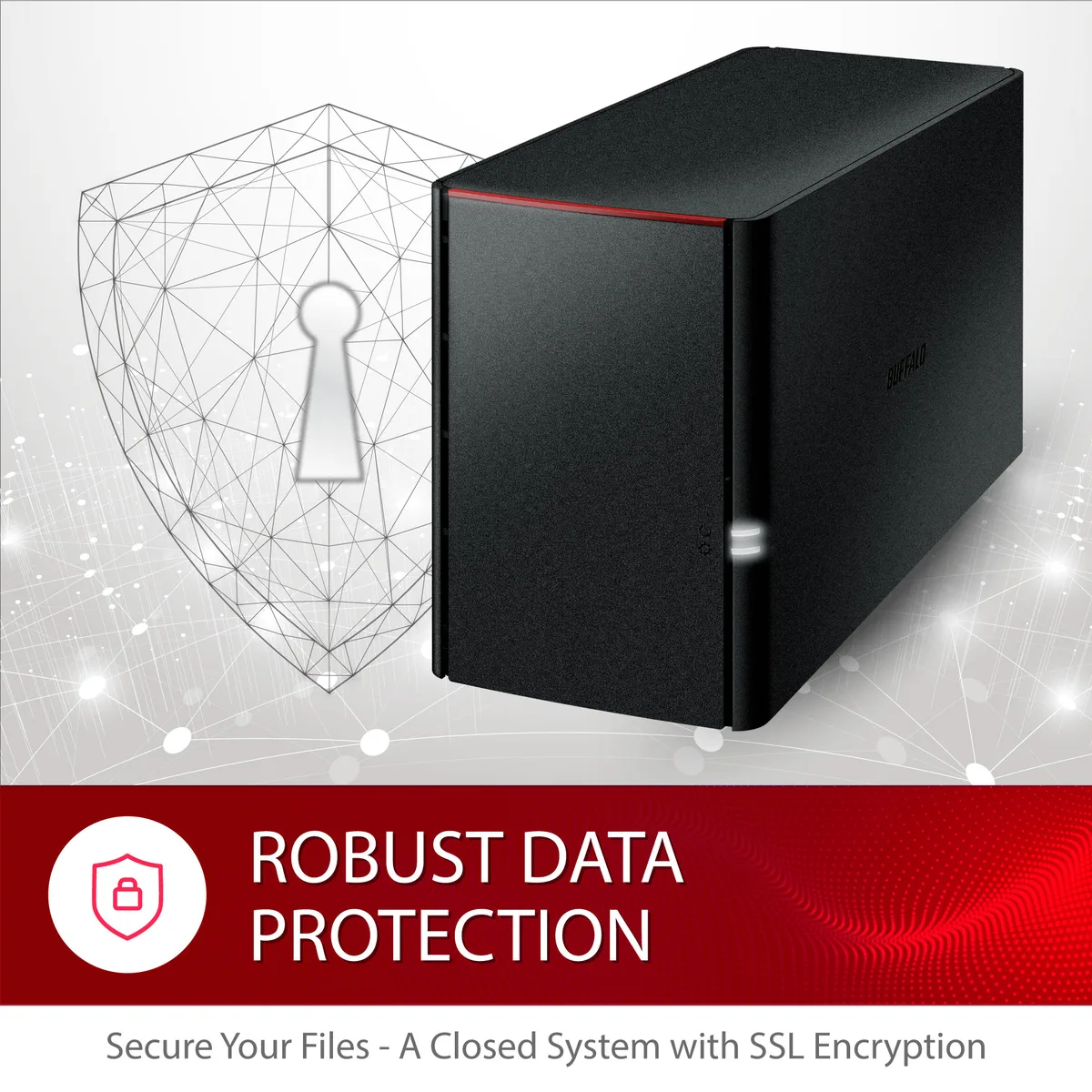

  • Closed-system OS with SSL encryption protects file transfers

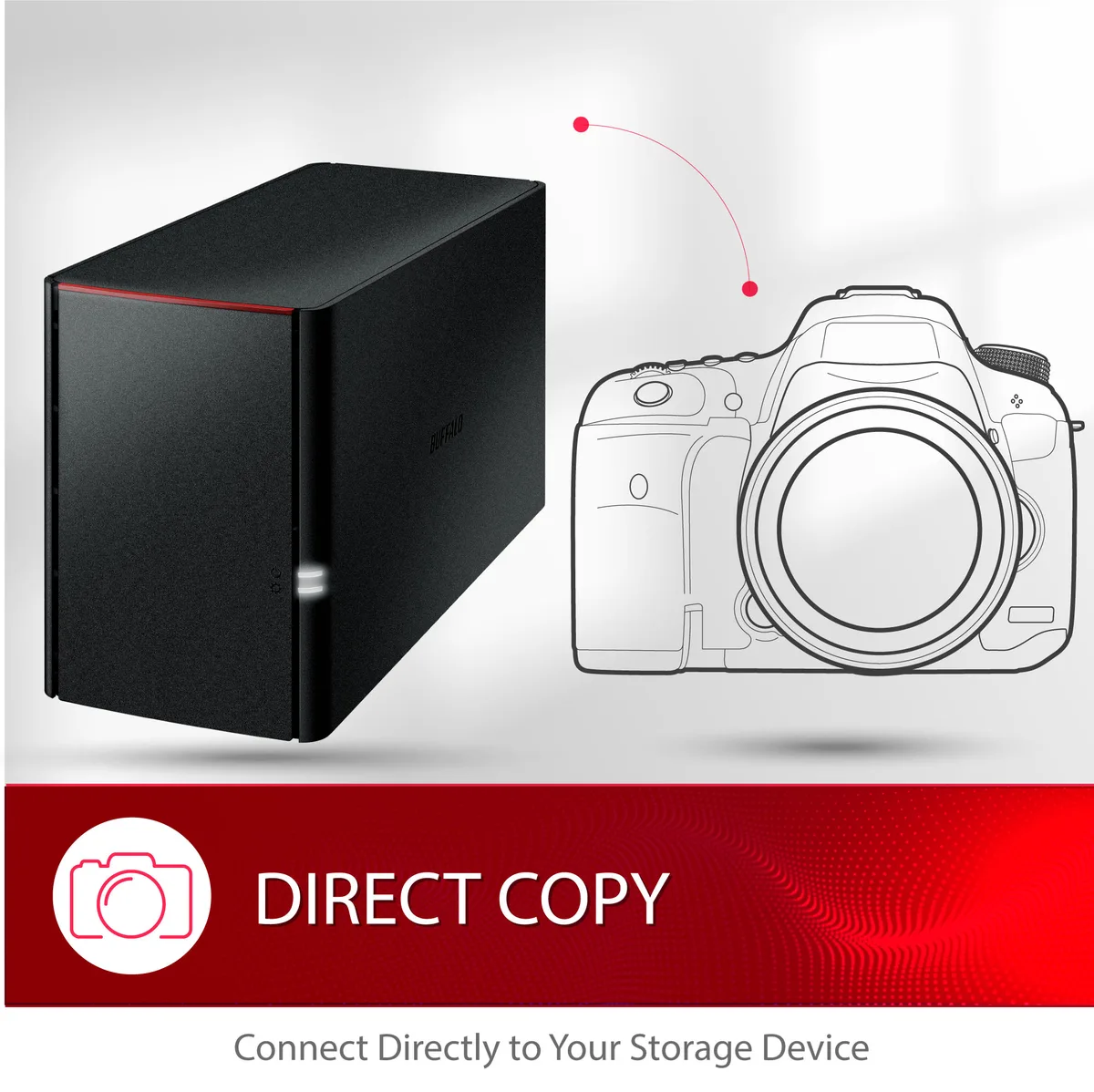

  • USB 2.0 port enables direct file copies without a computer
  • Gigabit Ethernet and dual-issue ARM 800MHz processor handle everyday NAS tasks

Two-bay desktop NAS for small offices

The Buffalo LinkStation SoHo 220 ships with two 6 TB drives pre-configured in RAID 1, giving 6 TB of redundant storage out of the box. It connects through a single Gigabit Ethernet port and a USB 2.0 port for additional backup targets. The closed operating system limits third-party exposure while providing SSL-encrypted file transfers and folder-level permissions for local and remote access.

Sustained workload behaviour

The dual-issue ARM processor running at 800 MHz with 256 MB of DDR3 memory handles everyday file serving and automatic backup tasks without thermal throttling up to the rated 35 °C operating limit. Power draw peaks at 48 W under full drive activity, and the fanless chassis relies on passive convection to keep the internal SATA drives within their specified temperature range during continuous operation.

Installation and common pitfalls

Setup is performed through a web browser using the NAS Navigator utility; no software installation is required on client machines. The most frequent issue is forgetting to switch the front-panel RAID mode selector before first boot, which locks the array into the shipping RAID 1 layout. A second common oversight is leaving the USB 2.0 port unused when a scheduled off-site backup drive could be attached for extra redundancy.

Highlights

  • 12TB total capacity with two pre-installed 6TB drives
  • RAID 1 ships pre-configured for automatic data redundancy
  • Closed-system OS with SSL encryption protects file transfers
  • USB 2.0 port enables direct file copies without a computer
  • Gigabit Ethernet and dual-issue ARM 800MHz processor handle everyday NAS tasks

Specifications

BrandBUFFALO
SeriesLinkStation SoHo 220
ModelLS220D1202B
Part NumberLS220D1202B
TypeDesktop NAS
StandardsIEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), AUTO-MDIX
Ports1 x 1GbE
Port RJ-451 x 10/100/1000M
Port USB1 x USB2.0
HDD InterfaceSATA 3 Gbps
Form Factor2-Bay
Operating SystemWindows® 11 (32-bit/64-bit)
Windows® 10
Windows® 8.1 (32-bit/64-bit)
Windows® 8 (32-bit/64-bit)
Windows® 7 (32-bit/64-bit)
Windows Vista® (32-bit/64-bit)
Windows Server® 2012 R2
Windows Server® 2012
Windows Server® 2008 R2
Windows Server® 2008
Windows Server® 2003
Mac OS® X up to 10.12 or later
ProcessorDual Issue ARM 800MHz Processor
Installed Memory256MB DDR3
Included HDD Capacity12TB (2 x 6TB)
RAIDRAID 0, 1 and JBOD
Supported ProtocolsTCP / IP
Power100-240 VAC 50/60Hz
Power Consumption48W Max
Temperature5°C - 35 °C
Humidity20-80% Humidity (non-condensing)
Dimensions8.07 x 3.42 x 5.02in
Weight5.5 lbs.
Package ContentsLinkStation™ SoHo 220, Quick setup guide, Ethernet cable, AC adapter, AC cable, Warranty Statement
Shipping weight2.77 kg
Package size269 × 239 × 137 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the LS220D1202B draw when it runs 24/7?

The unit is rated at 48W maximum power consumption, so continuous operation will stay at or below that figure.

What must I already have to get the 1GbE port and the USB 2.0 port working?

You need a router or switch with a free RJ-45 jack and a standard Ethernet cable, plus any USB 2.0 device you want to attach.

Will the SATA 3 Gbps bays and the ARM 800MHz processor keep up with my older Windows 7 or Vista PCs?

Yes — the NAS supports Windows 7 and Vista (32-bit and 64-bit) and the gigabit link is the limiting factor, not the internal SATA speed.
